53HC2600 INSTRUCTION MANUAL
Guided Tour 23
2. Click on Next Page to advance to the next page in the Documenter Report. This is a
parameter listing page.
Following the title page is a complete list of parameters involved in this configuration.
Parameters are grouped in the same order as they appear in the controller.
3. Continue to click on Next Page until the button grays out when you reach the last page.
The last page of this Documenter Report is a rear connections diagram. The top half shows
the back of the controller, and the bottom half details connections to the Standard I/O
Connector.
4. Click on Zoom In and use the scroll bar to get a closer look at Standard I/O Connector
diagram on the bottom. This diagram details the wiring to the I/O connector and shows the

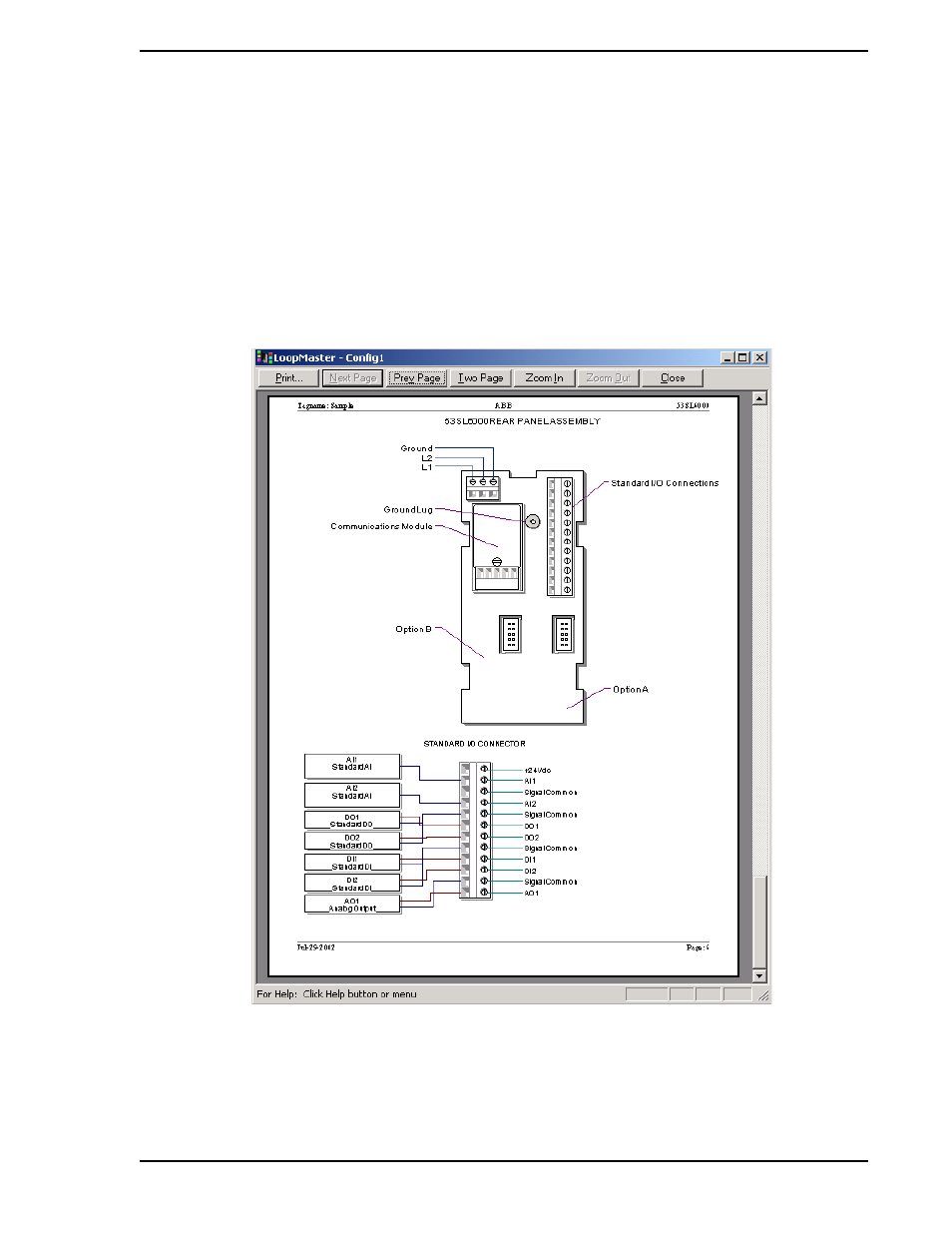

Figure 3-7. Documenter Report, Last Page, Rear Connections Example
