Guided Tour 25
1. Click on the C Scheme A input button as shown in Figure 3-8 .
2. The Input Selection dialog shows the currently selected source as Analog Input AI1. Change
the PV input to come from FNC:
3. In the Input Selection dialog, click on the down arrow button to view the list of possible
sources.
4. Select FNC Output X.
5. Click OK. The connection is now drawn from the FNC X output to the C Scheme A input, as
illustrated in
Figure 3-9 .

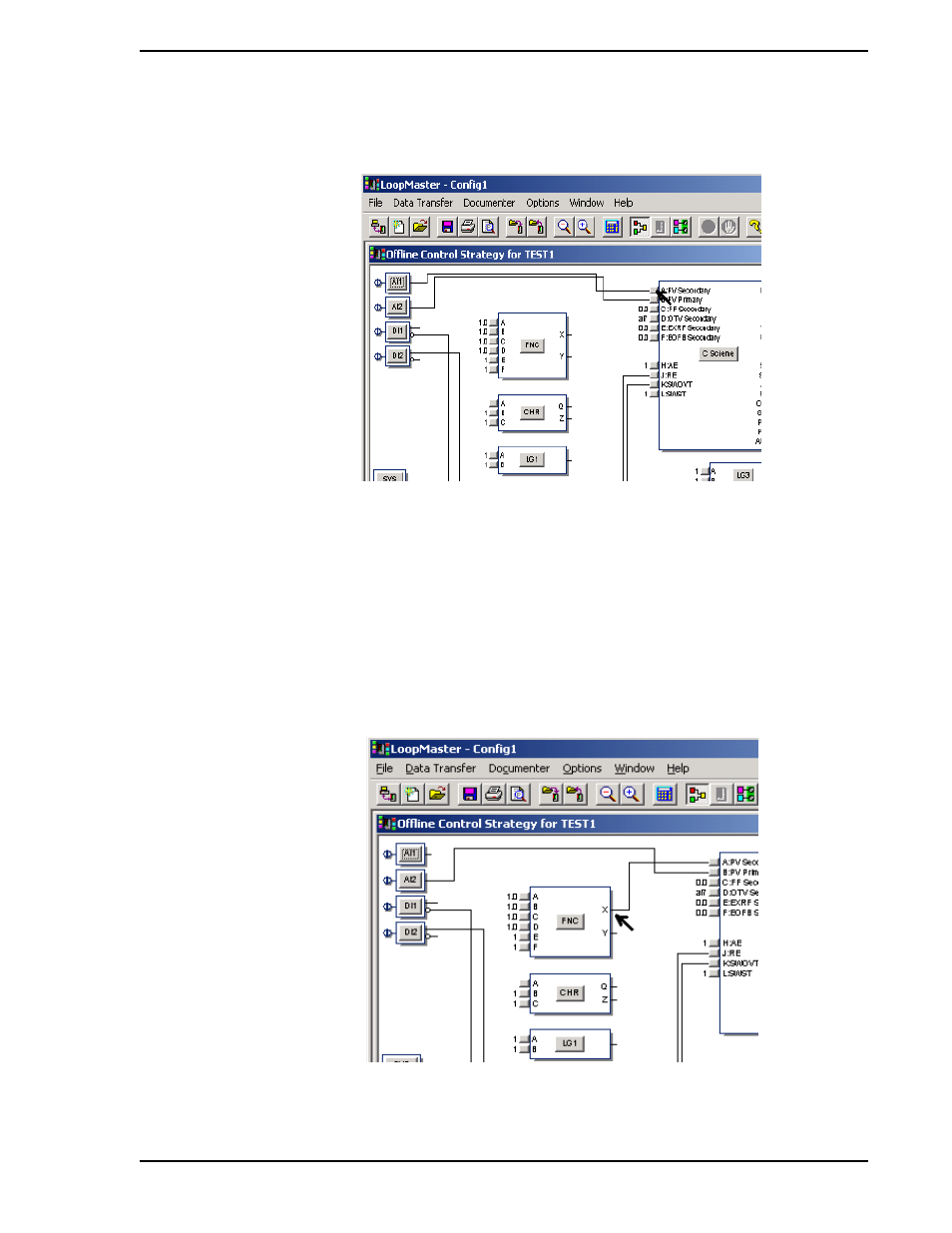

Figure 3-8. Selecting the C Scheme A Input Button
Figure 3-9. Connection Drawing Example, FNC Output X Source
