F-CIM 102
MATH C
NOT REUSABLE
Function:
C S n
0 S n-1
1 C82 * S n-1 + C83
2 C82 * S n-1 + C83 * A + C84 * B
3 C82 * S n-1 * A * B + C83
4 C82
∗Sn−1
A
+ C83*B
5
C82 * S
n-1
+
C83
∗A
B
+ C84
6 C82 ∗Sn−1∗ A
B
+ C83
7 C82
+Sn−1
C83 +A
* C84
8 C82 * ABS(S
n-1
) + C83
9 C82 * S
n-1
(C83 * A + C84)
10 C82 * 2
(C83 * Sn-1 + C84)
11 C82 * LOG (C83 * S
n-1
) + C84
20 C82 < S
n-1
< C83
21 (C83 * B) < S
n-1
< (C84 * A)
Description:

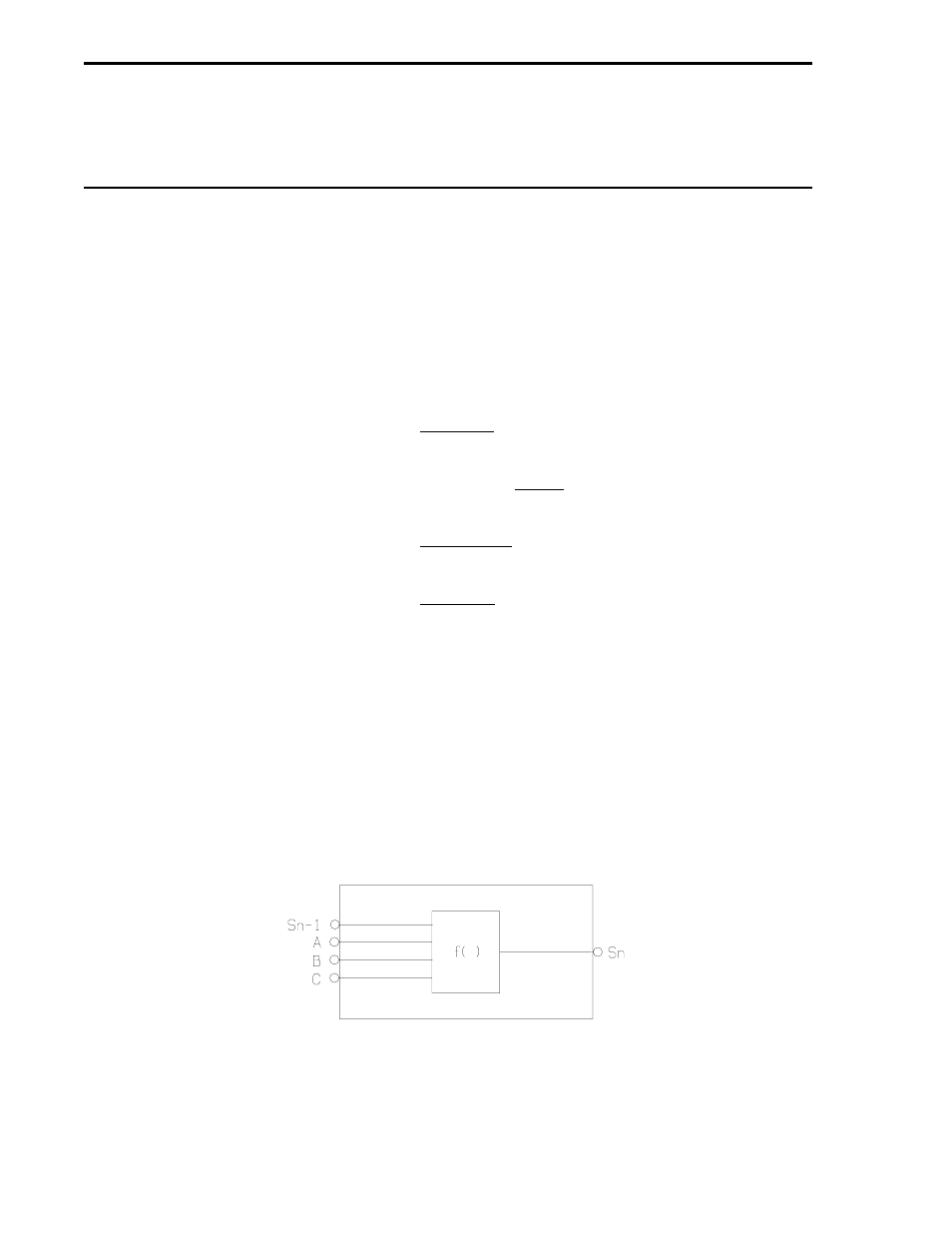

This module provides 12 different mathematical functions. The function to be used is selected
based on the C input.
