Micromod Micro-DCI: 53MC5000 Multi-Loop Process Controller CUSTOMIZATION GUIDE - Manual (Page 61)

F-CIM 43
AUTO/MANUAL SWITCH - 0
NOT REUSABLE
INPUTS NAME SYMBOL DATAPOINT
S n-1 CONTROL OUTPUT CO0 C123
A AUTO ENABLE AE0 L114
B OUTPUT TRACK VALVE OTV0 C129
C OUTPUT TRACK SWITCH SWOTV0 L117
PARAMETERS OUTPUT TRACK ENABLE OTE0 L119
HARD MANUAL LIMIT HML0 L122
OUTPUT HIGH LIMIT OH0 C109
OUTPUT LOW LIMIT OL0 C110
OUTPUT SLEW RATE T30 C118
OUTPUTS
S n OUTPUT OUT0 C102
OUTPUT TRACK STATUS OVTS0 L105
AUTO STATUS AUT0 L107

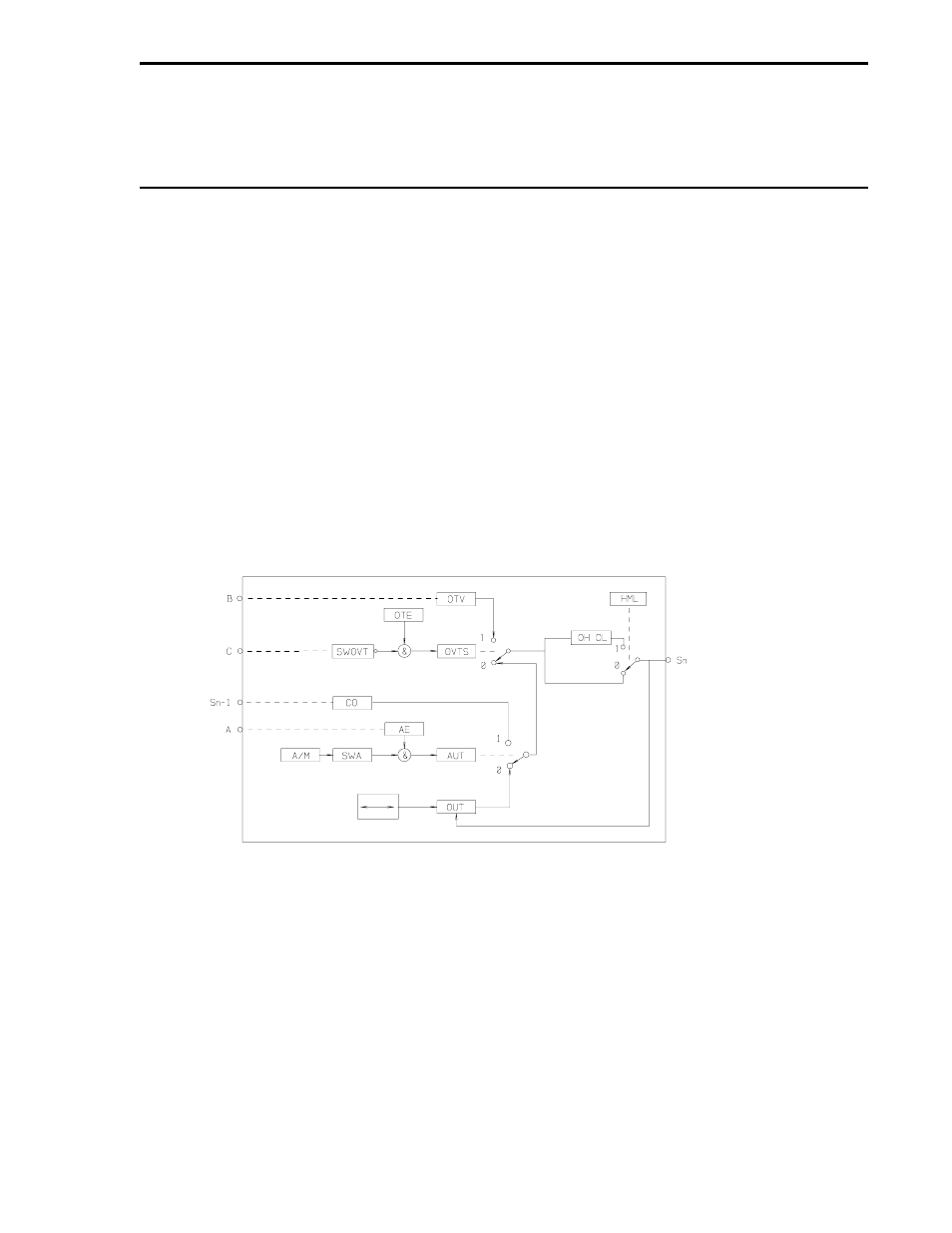

Description:
This module selects one of three signals to load into OUT and become its output
(S
n
). The signal selected is either the Output Tracking Value (B), the Auto Value
(S
n-1
) or the Manual Pushbutton Value. If the Output Tracking Switch (C) is less
than 1, then S
n
= B when Output Tracking is enabled (OTE = 1). When the pre-
vious condition is not in effect S
n
will equal S
n-1
if Auto Enable (A) is
≥1 and the
A/M pushbutton has set the Auto Switch to 1. When neither previous condition is
in effect the selected signal comes directly from the output increase and decrease
pushbuttons.
MODULAR CONTROLLER CUSTOMIZATION GUIDE
3-9
