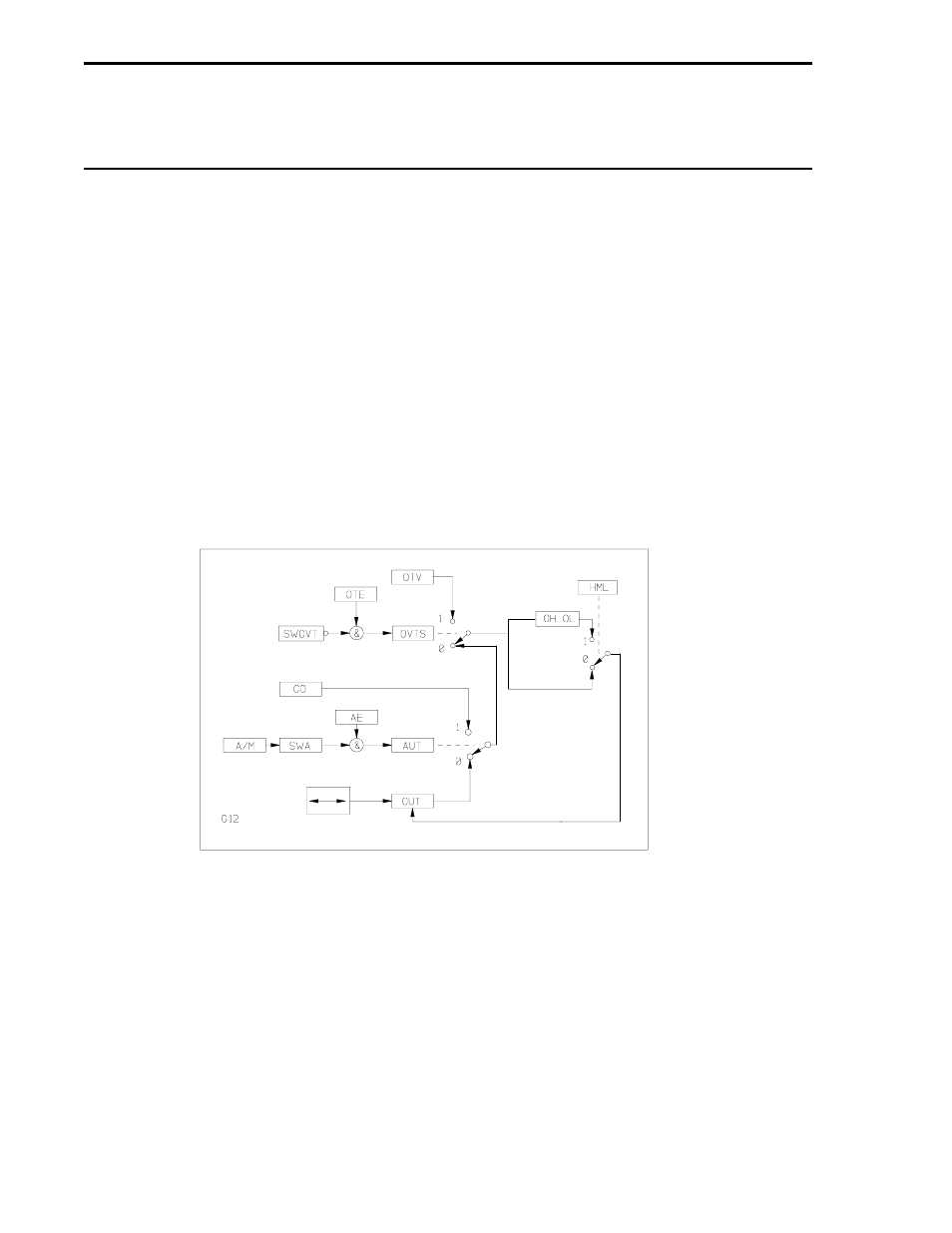

G13
AUTO/MANUAL SWITCH - 1

INPUTS

NAME

SYMBOL

DATAPOINT

CONTROL OUTPUT

CO1

C159

AUTO ENABLE

AE1

L138

OUTPUT TRACK VALVE

OTV1

C165

OUTPUT TRACK SWITCH

SWOTV1

L141

PARAMETERS

OUTPUT TRACK ENABLE

OTE1

L143

HARD MANUAL LIMIT

HML1

L146

OUTPUT HIGH LIMIT

OH1

C145

OUTPUT LOW LIMIT

OL1

C146

OUTPUT SLEW RATE

T31

C154

OUTPUTS

OUTPUT

OUT1

C138

OUTPUT TRACK STATUS

OVTS1

L129

AUTO STATUS

AUT1

L131

Description:
The AUTO/MAN Switch selects one of three signals to load into OUT. The signal
selected is either the Output Tracking Value (OTV), the Auto Value (CO) or the
Manual Pushbutton Value. If the Output Tracking Switch (SWOUT) is zero (0) then
OUT = OTV when Output Tracking is enabled (OTE = 1). When the previous
condition is not in effect OUT will equal CO if Auto Enable = 1 and the A/M
pushbutton has set the Auto Switch to 1. When neither previous condition is in effect
the selected signal comes directly from the output increase and decrease pushbut-
tons.

MODULAR CONTROLLER CUSTOMIZATION GUIDE

2-36
