F-CIM 104
MATH E
NOT REUSABLE
Function:
C S n
0 S n-1
1 C88 * S n-1 + C89
2 C88 * S n-1 + C89 * A + C90 * B
3 C88 * S n-1 * A * B + C89
4 C88
∗Sn−1
A
+ C89*B
5
C88 * S
n-1
+
C89
∗A
B
+ C90
6 C88 ∗Sn−1∗ A
B
+ C89
7 C88
+Sn−1
C89 +A
* C90
8 C88 * ABS(S
n-1
) + C89
9 C88 * S
n-1
(C89 * A + C90)
10 C88 * 2
(C89 * Sn-1 + C90)
11 C88 * LOG (C89 * S
n-1
) + C90
20 C88 < S
n-1
< C89
21 (C89 * B) < S
n-1
< (C90 * A)
Description:

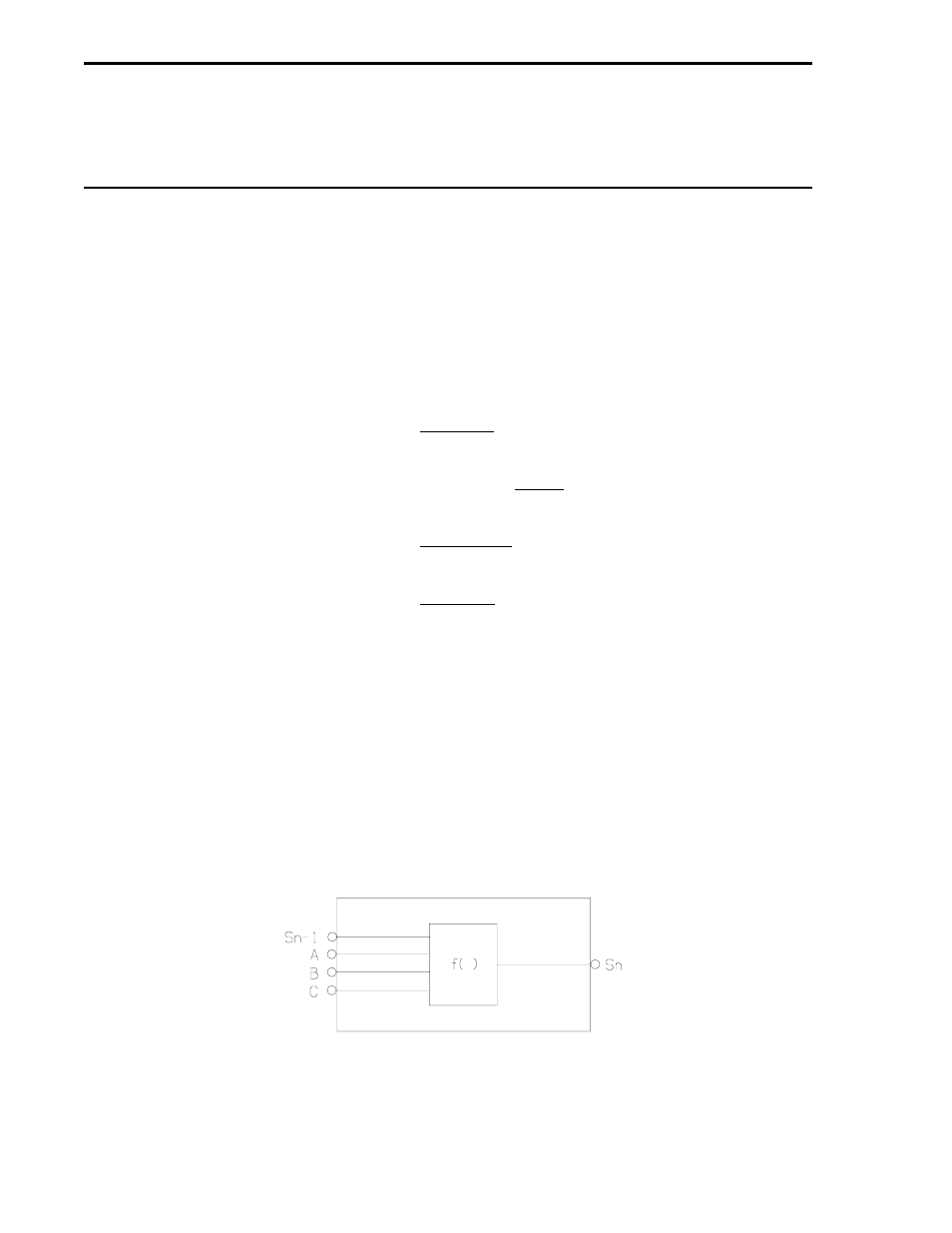

This module provides 12 different mathematical functions. The function to be used is selected
based on the C input.
