G07
DEVIATION/ALARM CALCULATION - 3

INPUTS

NAME

SYMBOL

DATAPOINT

SETPOINT

SP3

C209

PROCESS VARIABLE

PV3

C208

PARAMETERS

SETPOINT SLEW RATE

T13

C225

CONTROL ZONE

CZ3

C222

ALARM INDEX

AIX3

B350

ALARM LIMIT 1

PL13

C211

ALARM LIMIT 2

PL23

C212

ALARM DEADBAND

ADB3

C213

OUTPUTS

DEVIATION

DV3

C229

ALARM A

PA13

L182

ALARM B

PA23

L183

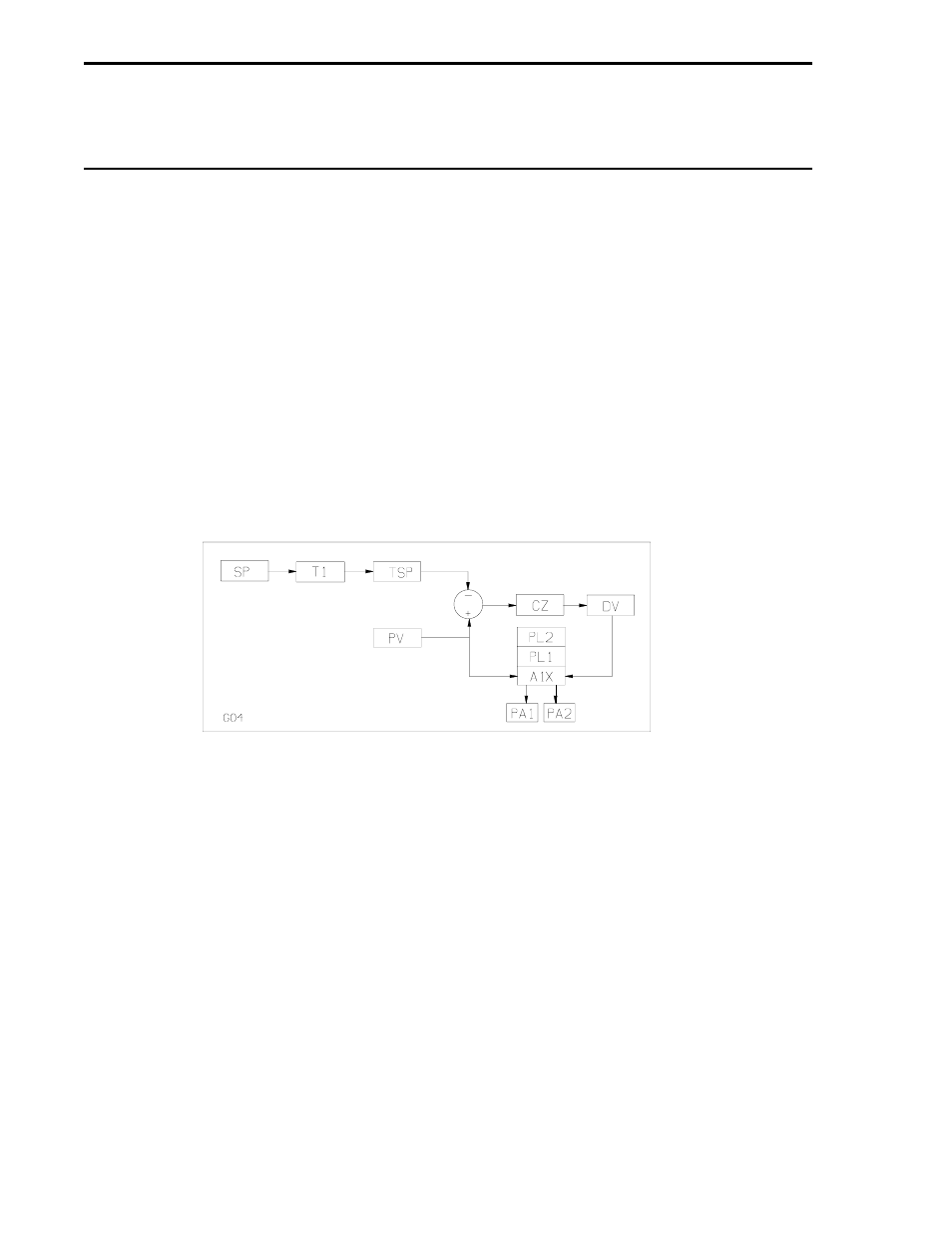

Description:
This subroutine calculates and loads the deviation value based on setpoint (SP) and
process variable (PV). Before the calculation is performed the setpoint value is
conditioned so as not to exceed the rate of change limit specified by T1. If the
calculated deviation falls within the CZ value, then deviation is forced to 0.0. This
module also determines if alarm conditions exist based on AIX, PL1, PL2 and ADB.
Results of the alarm tests are loaded to PA1 and PA2. Refer to Section 4.1.6 of
Instruction Bulletin 53MC5000 for an explanation of AIX values.
