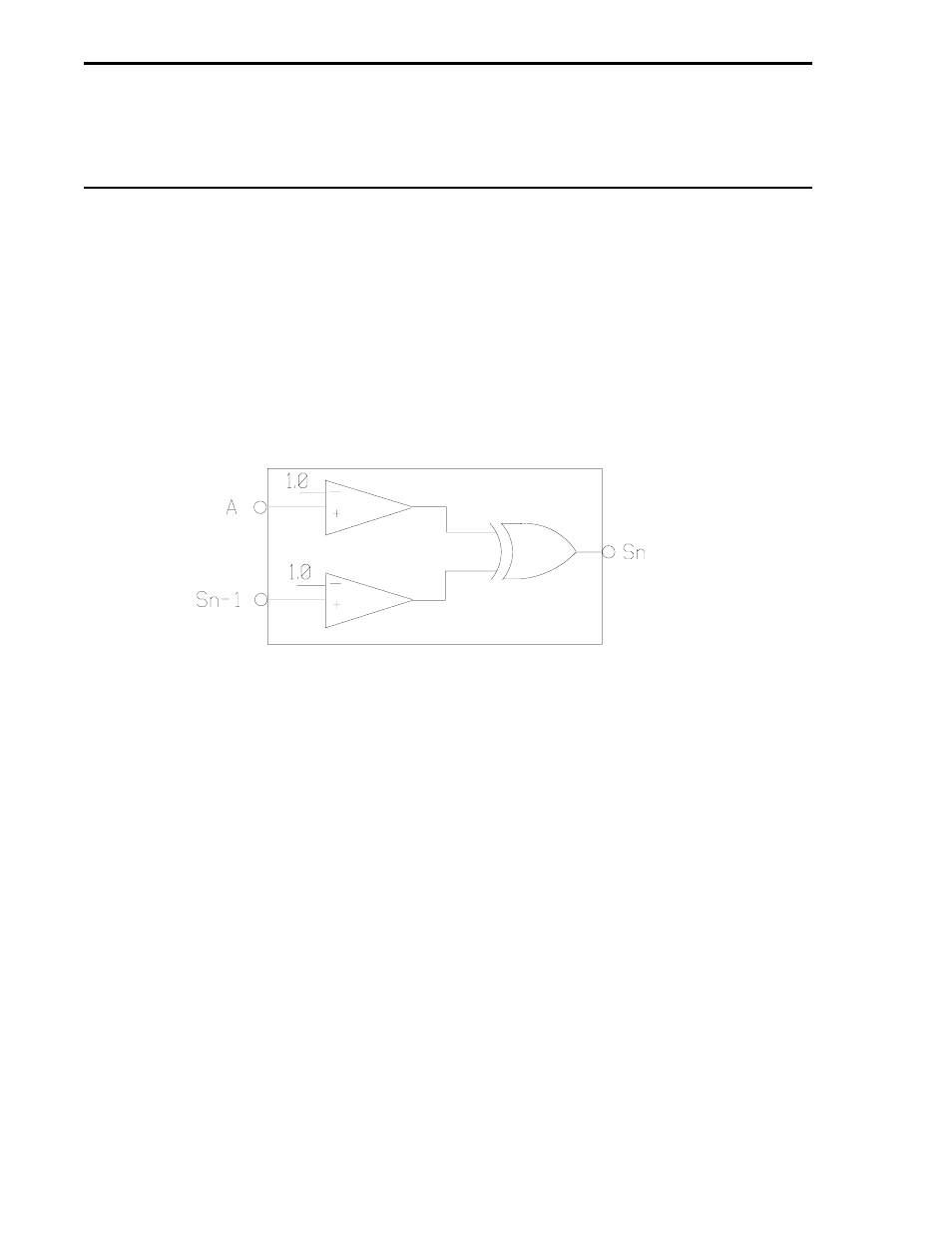

LOGICAL EXCLUSIVE OR
REUSABLE
Function:
IF S
n-1
≥ 1 and A < 1
S
n
= 1.0
IF S
n-1
< 1 and A
≥ 1
S
n
= 1.0
ELSE
S
n
= 0.0
Description:
This module produces an output of 1.0 if one and only one of the A and X inputs
have values that are greater than or equal to 1.0. The A input can be any L,B,C [S],
or H type data.
