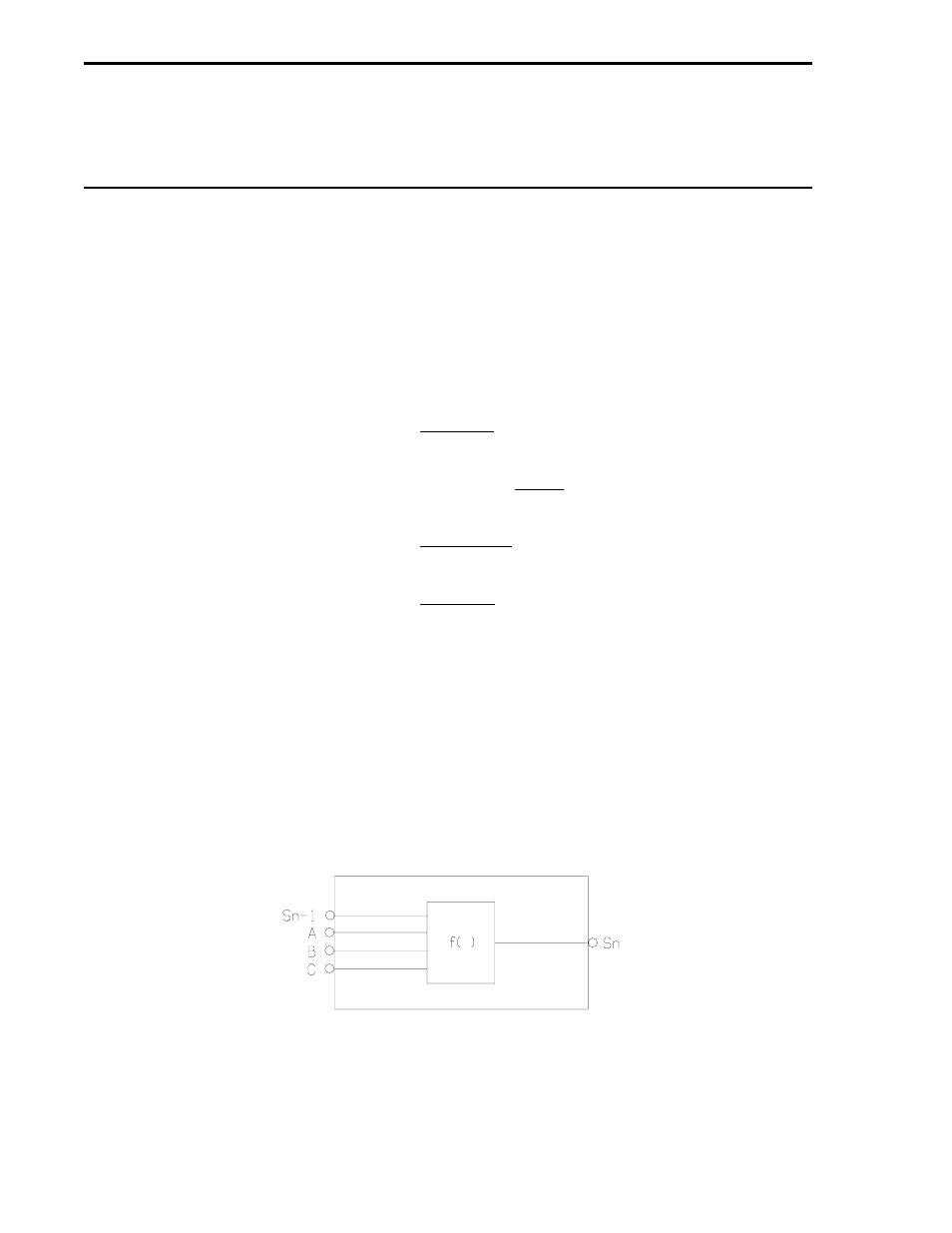

F-CIM 106
MATH G
NOT REUSABLE
Function:
C S n
0 S n-1
1 C94 * S n-1 + C95
2 C94 * S n-1 + C95 * A + C96 * B
3 C94 * S n-1 * A * B + C95
4 C94
∗Sn−1
A
+ C95*B
5
C94 * S
n-1
+
C95
∗A
B
+ C96
6 C94 ∗Sn−1∗ A
B
+ C95
7 C94
+Sn−1
C95 +A
* C96
8 C94 * ABS(S
n-1
) + C95
9 C94 * S
n-1
(C95 * A + C96)
10 C94 * 2
(C95 * Sn-1 + C96)
11 C94 * LOG (C95 * S
n-1
) + C96
20 C94 < S
n-1
< C95
21 (C95 * B) < S
n-1
< (C96 * A)
Description:
This module provides 12 different mathematical functions. The function to be used is selected
based on the C input.
