x MAP Technology Data Acquisition
PN 89-00002-00-063 Rev. A 6 - 17
Histogram
The histogram is located in the lower-left corner of the screen. The
histogram provides a graphical display of the real-time data
collection. An example of a histogram follows:

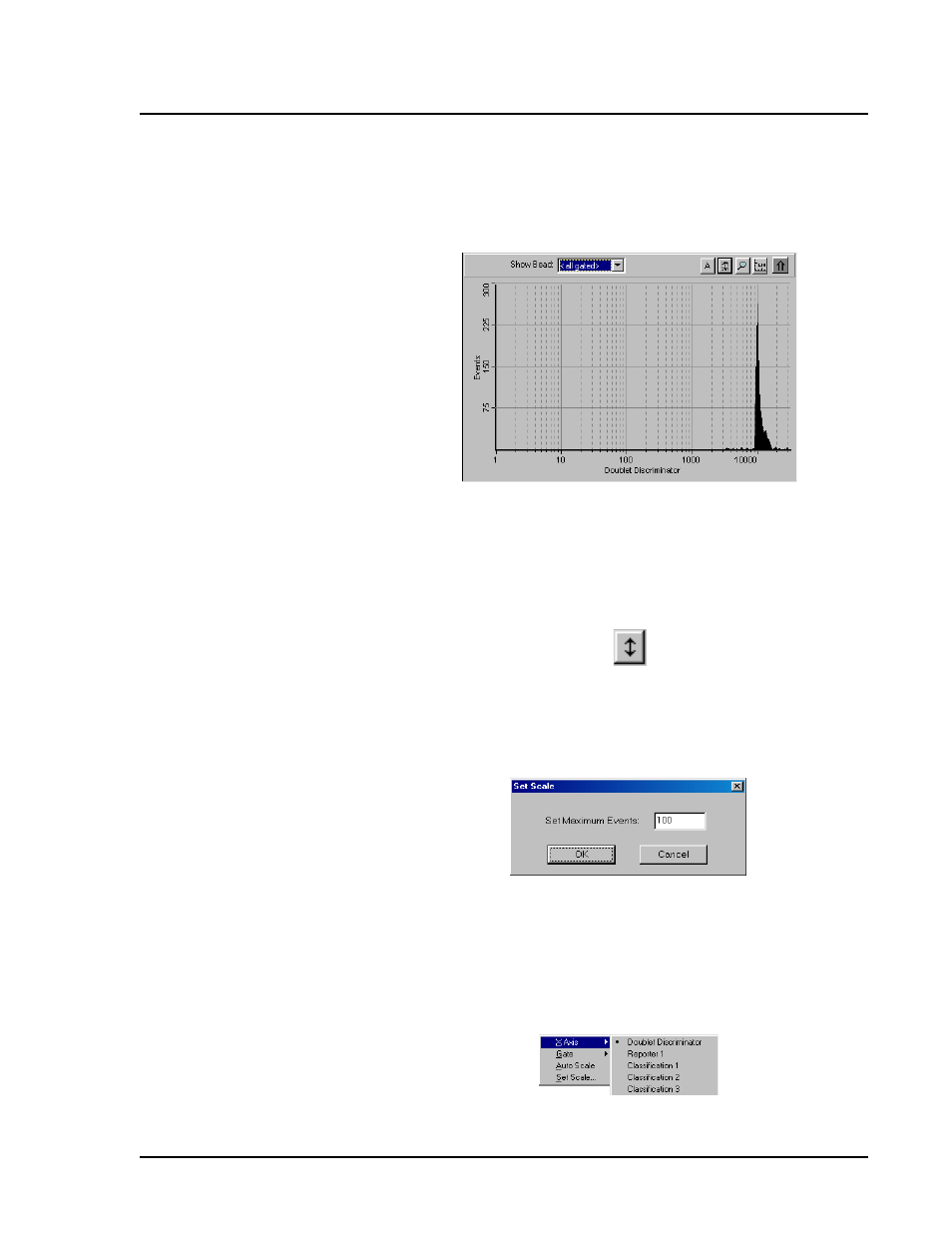

Figure 6-19. Histogram Example
The Y axis of the graph displays collected events.
‹ To autoscale the Y axis:
Click the up-and-down arrow button shown just above the graph.
‹ To manually set the Y axis scale:
1. Right-click anywhere in the histogram to open the right-click
menu. Select Set scale. The Set Scale dialog box opens.
Figure 6-20. Set Scale Dialog Box
2. Enter the maximum value in the dialog box, and click OK.
‹ To change the X axis parameter:
1. Right-click in the histogram to open the right-click menu.
Figure 6-21. Right-Click X-Axis Menu
