Laurel Electronics LAUREATE SERIES 2 COUNTER-TIMER-SERIAL INPUT METER User Manual
Page 68
68
SETUP OF CONNECTED METER
A setup file can be retrieved from the meter (Counter => Get Setup), be edited (View =>
Setup), be saved to disk (File => Save Setup), be retrieved from disk (File => Open Setup),
and be downloaded into one or multiple meters (Counter => Put Setup). Downloading of
setup files from a PC can be a major time saving when multiple counters have to be set up
in the same way.

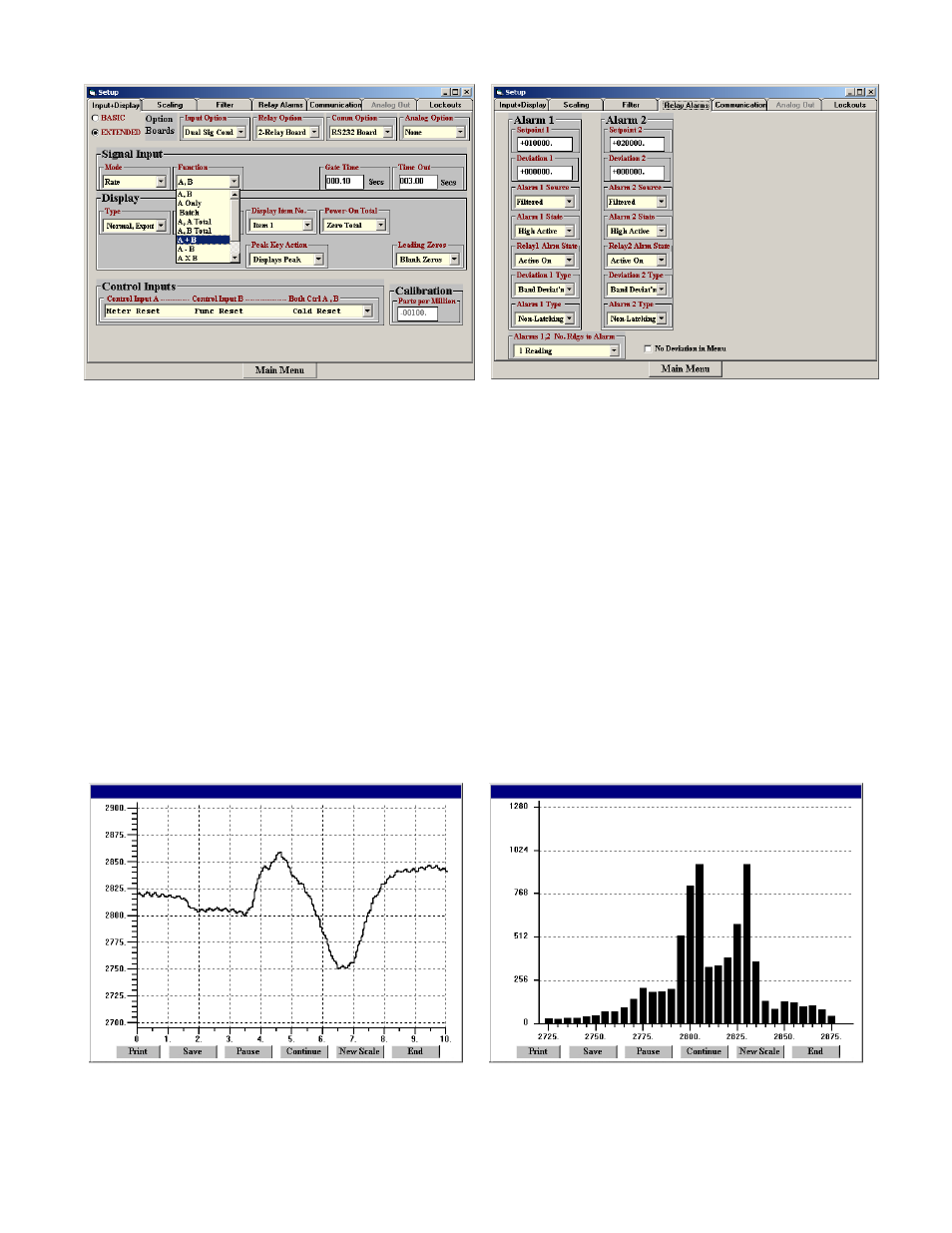

You will find that Instrument Setup software is very user friendly, with separate tab-
selectable windows for Input+Display, Scaling, Filter, Relay Alarms, Communications,
Analog Out, and Lockouts. If the required hardware, such as the analog output board, is not
sensed, the corresponding tab will be grayed out.
ADDITIONAL FEATURES WHEN CONNECTED
• The Commands pull-down menu allows you to perform Reset functions, to enter nume-
rical values into the meter, and to retrieve numerical values from the meter (Items 1, 2, 3,
Peak, Valley).
Plot
Graph
