Ethernet & 4-20 mA Output Transmitter
for Duty Cycle Input
Standard Features
•
Ethernet serial data I/O, Modbus TCP or Laurel ASCII protocol
•
4-20 mA or 0-10V transmitter output, 16 bits, jumper selectable, isolated
•
Dual 120 mA solid state relays for alarm or control, isolated
•
5V, 10V or 24V dc transducer excitation output, isolated
•
Transmits ON or OFF period as a percentage of total period
•
Frequencies from 0.005 Hz to 10 kHz
•
Inputs from NPN or PNP proximity switches, contact closures, digital logic,
magnetic pickups down to 12 mV, or AC inputs up to 250 Vac.
•
Analog output resolution 0.0015% of span (16 bits), accuracy ±0.02% of span
•
Universal 85-264 Vac / 90-300 Vdc or 10-48 Vdc / 12-32 Vac power
•
Power over Ethernet (PoE) jumper selectable with 10-48 Vdc supply
Description

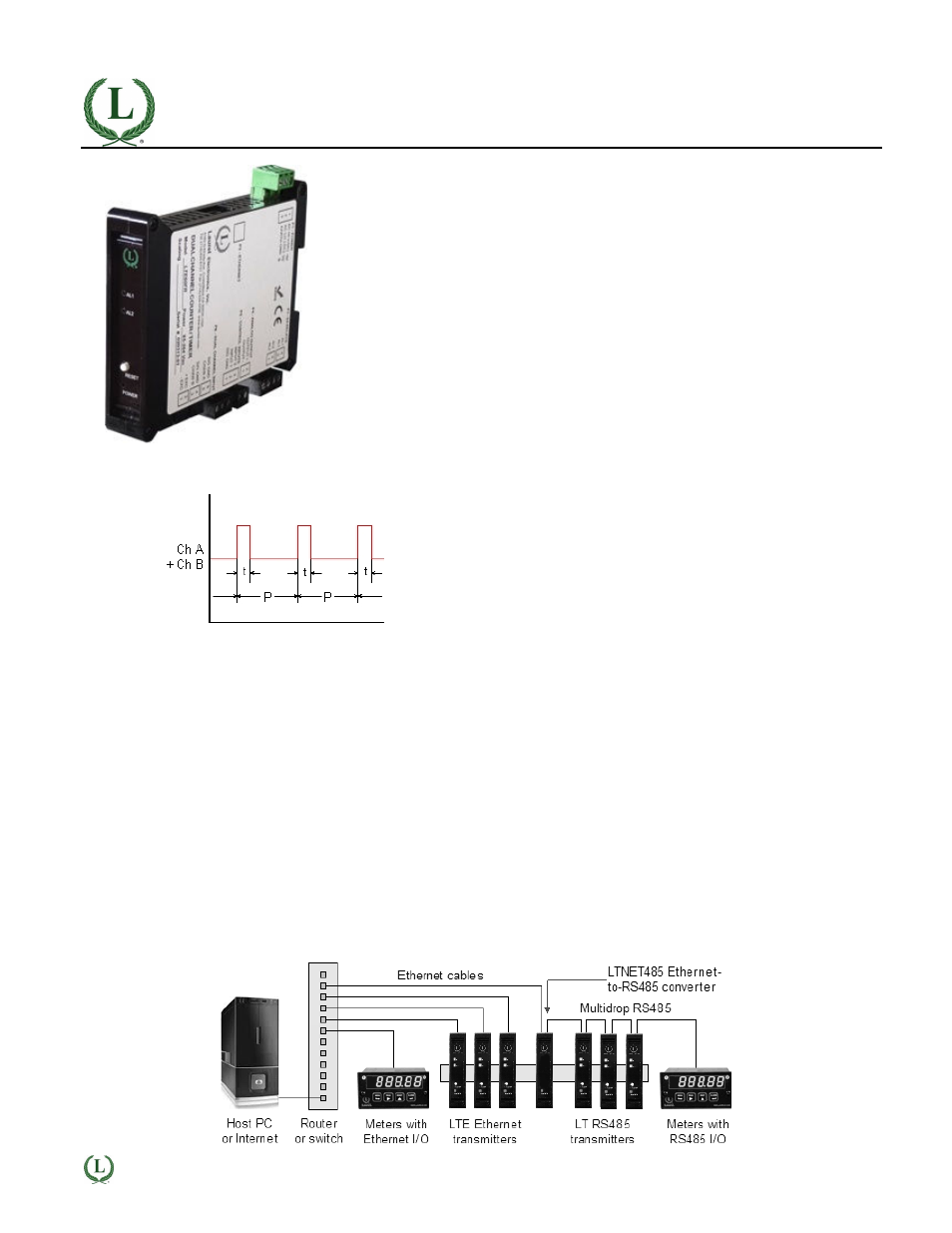

The Laureate duty cycle transmitter tracks ON or OFF period
as a percentage from 0% to 100% of total period of repetitive
pulse trains. In the illustration, duty cycle is 100 x t/P. The trans-
mitter determines duty cycle by averaging an integral number of
periods over a gate time, which is selectable from 10 ms to
199.99 s. The same signal is applied to Channels A and B. The
unit divides the average pulse width by the period between
pulses and expresses this ratio in percent. A resolution of 1%,
0.1% or 0.01% is selectable. By selecting leading or falling pulse
edges, the ON or OFF duty cycle can be transmitted.
The dual-channel signal conditioner used for pulse detection
accepts inputs from proximity switches with PNP or NPN output,
TTL or CMOS logic, magnetic pickups, contact closures, and AC
signals from 12 mV to 250 Vac. Jumper selections provide opti-
mum operation for different sensor types and noise conditions.
Discovery and configuration of Laureate Ethernet Nodes is
easily achieved with Laurel's Node Manager Software, and the
discovered transmitters can then be programmed using Laurel's
Instrument Setup Software. Both softwares run on a PC under
MS Windows and can be downloaded at no charge.
Standard features of Laureate LTE transmitters include:
•
Ethernet I/O, isolated. Supported protocols are Modbus
RTU and ASCII (tunneled via Modbus TCP) and Laurel ASCII.
The latter is simpler than the Modbus protocol and is recom-
mended when all devices are Laureates. Note that RS232 or
RS485 data I/O in lieu of Ethernet is provided by our LT Series
transmitters.
•
4-20 mA, 0-20 mA or 0-10V analog transmitter output,
isolated, jumper-selectable and user scalable. All selections
provide 16-bit (0.0015%) resolution of output span and 0.02%
output accuracy of a reading from -99,999 to +99,999 counts
that is also transmitted digitally. Output isolation from signal
and power grounds eliminates potential ground loop problems.
The supply can drive 20 mA into a 500 ohm (or lower) load for
10V compliance, or 10V into a 5K ohm (or higher) load for
2 mA compliance.
•
Dual solid state relays, isolated. Available for local alarm
or control. Rated 120 mA at 130 Vac or 180 Vdc.
•
Transducer excitation output, isolated. User selectable
5V@100 mA, 10V@120 mA or 24V@50 mA.
•
Universal 85-264 Vac power. Low-voltage 10-48 Vdc or
12-32 Vac power is optional.
