The SeaI/O-470 supports single-ended, differential, and current loop A/D inputs. Single-ended
and differential modes can be configured in software. Current loop mode requires configuring
dipswitches inside the enclosure. Refer to the Hardware Configuration section of this manual
for instructions on configuring the current loop dipswitches.

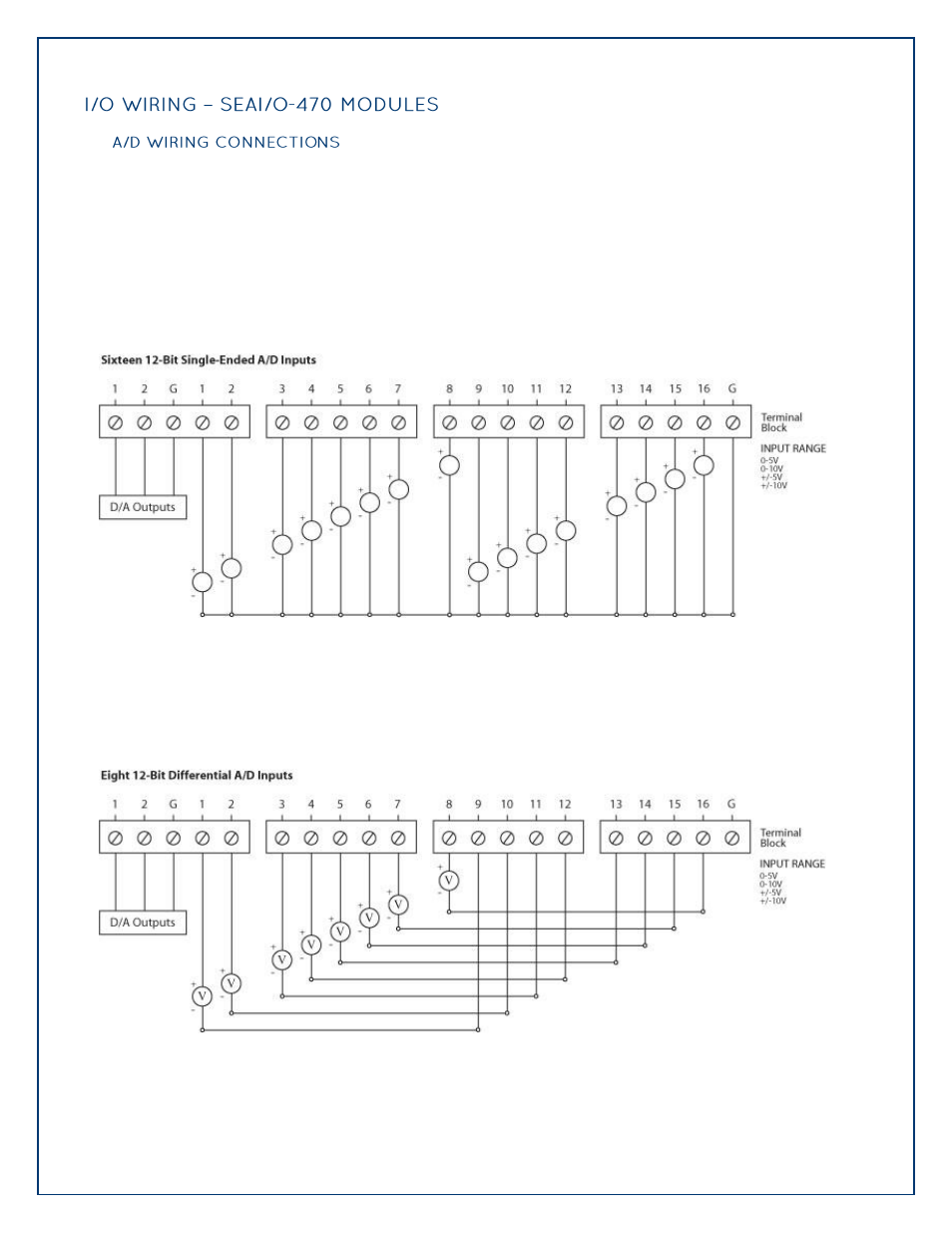

The SeaI/O-470 can be configured for up to sixteen 12-bit single-ended A/D inputs. Each input
is referenced to a common ground. The user selectable voltage ranges are 0-5V, 0-10V, +/-5V,
and +/-10V.
The SeaI/O-470 can be configured for up to eight 12-bit differential A/D inputs. The inputs are
not referenced to ground. The user selectable voltage ranges are 0-5V, 0-10V, +/-5V, and +/-
10V.
