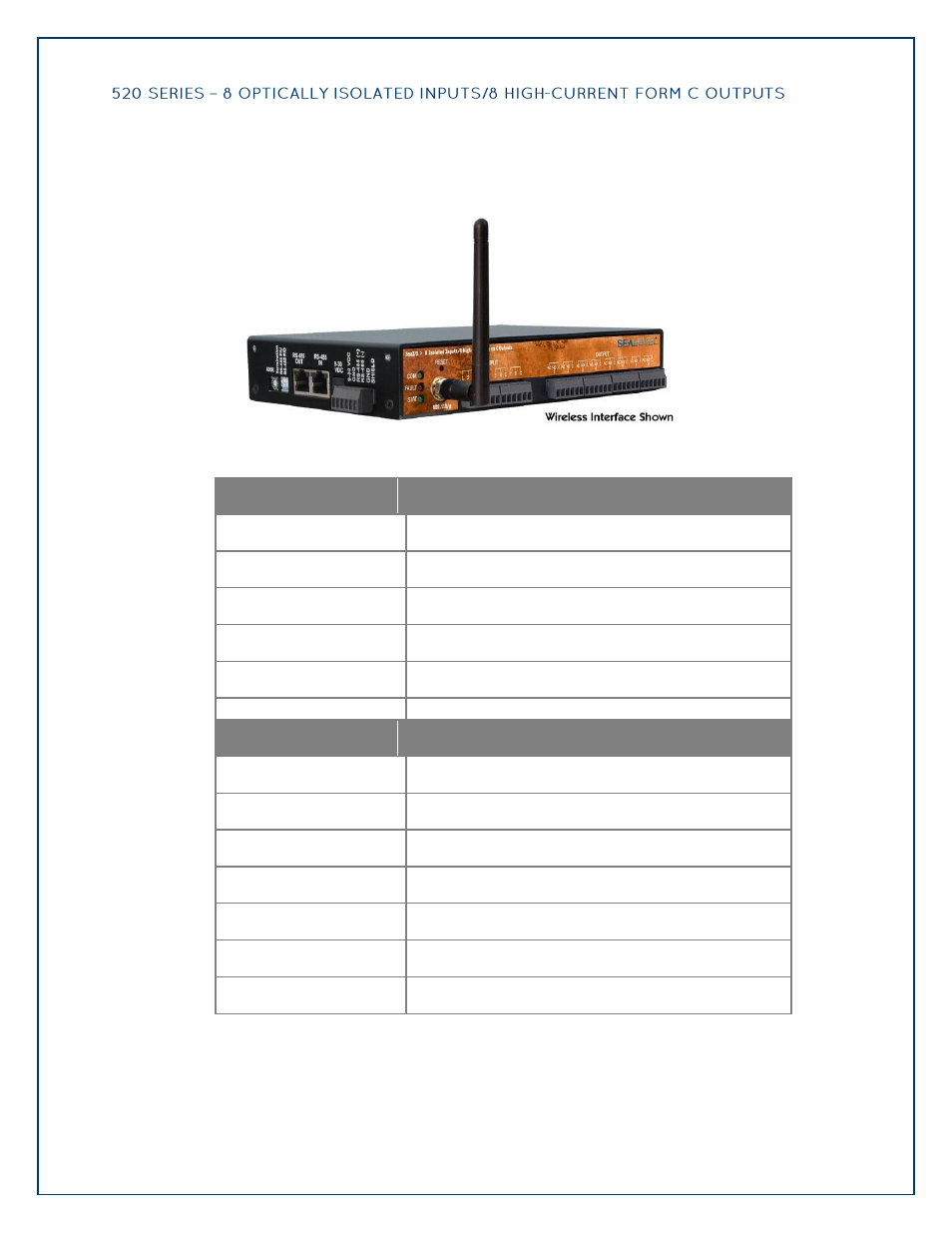

The SeaI/O-520 provides 8 optically isolated inputs and 8 SPDT high-current Form C relay
outputs. Inputs can range from 5-30VDC and provide 2500VAC RMS / 3500VDC isolation to
ground. Each output offers normally open and normally closed contact connections via 3.5mm
field removable terminal blocks.
Inputs
Type 8 non-polarized optically isolated inputs
Voltage Range 5-30VDC
Isolation 2500VAC RMS / 3500VDC
Input Resistance 6.2K Ohms in series
Response Time 4 microseconds
Outputs
Type 8 SPDT High-Current Form C relays
Contact Voltage 250VAC/60VDC max.
Contact Current (AC) 6A max.
Contact Current (DC) <30 VDC @5A max. / >30 VDC @500mA max.
Switching Capacity 5 VDC @ 100mA min.
Operate Time 10ms max.
Release Time 10ms max.
