SeaI/O Manual 14

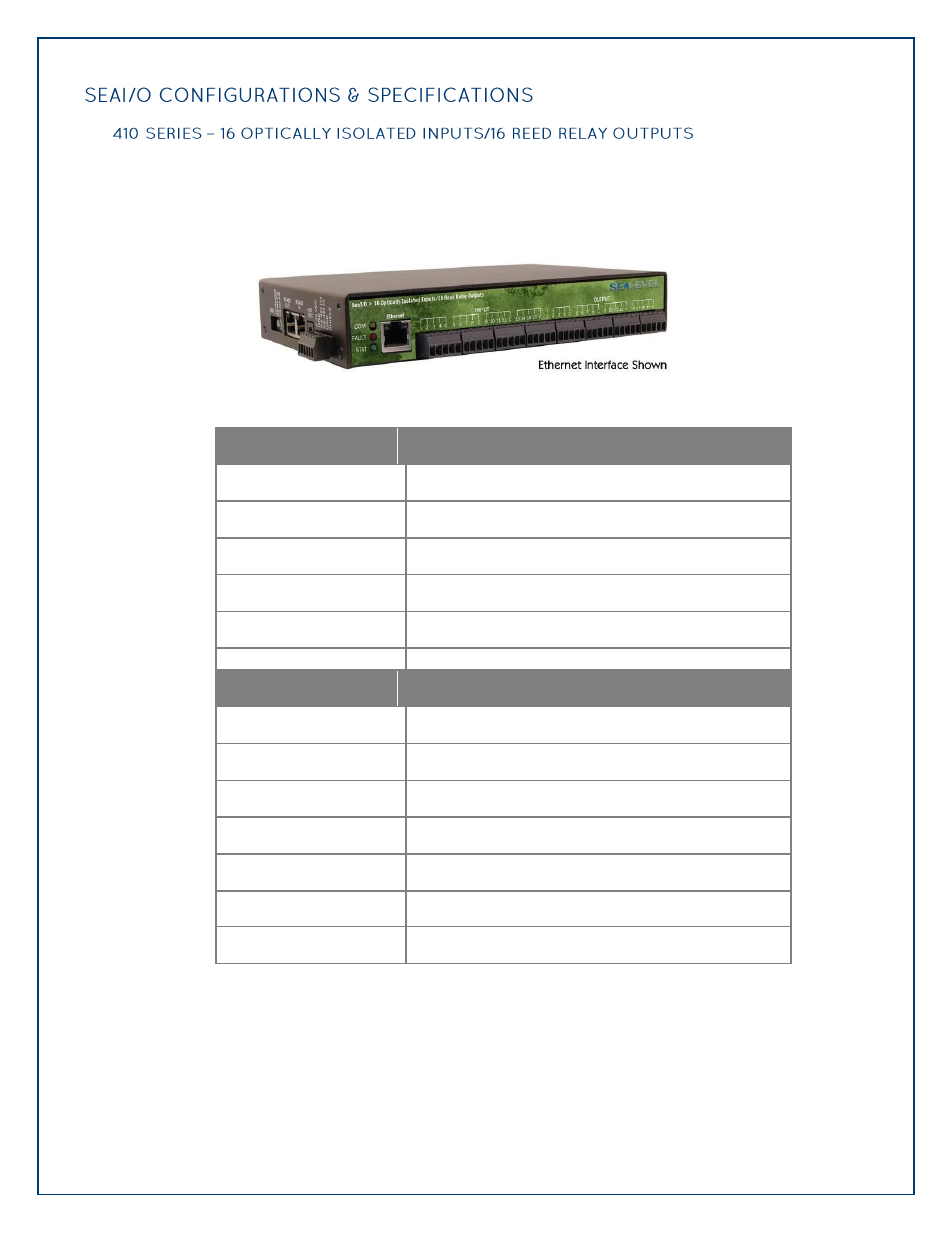

SeaI/O-410 modules provide 16 optically isolated inputs and 16 Reed relay outputs. Inputs can
range from 5-30VDC, while the Reed relays provide long life switch closures that are well suited
for low current applications. Inputs and outputs are grouped into four-bit segments. Each
group shares a common for easy wiring via removable 3.5mm terminal blocks.
Inputs
Type 16 non-polarized optically isolated inputs
Voltage Range 5-30VDC
Isolation 1250VAC RMS / 1800VDC
Input Resistance 6.2K Ohms in series
Response Time 4 microseconds
Outputs
Type 16 SPST Form A Reed relays
Power 10VA max.
Contact Voltage 60VDC max.
Contact Current 500mA max.
Operate Time 0.5ms max.
Bounce Time 0.5ms max.
Release Time 0.2ms max.
