Appendix
— SlideDriver Wheel Change

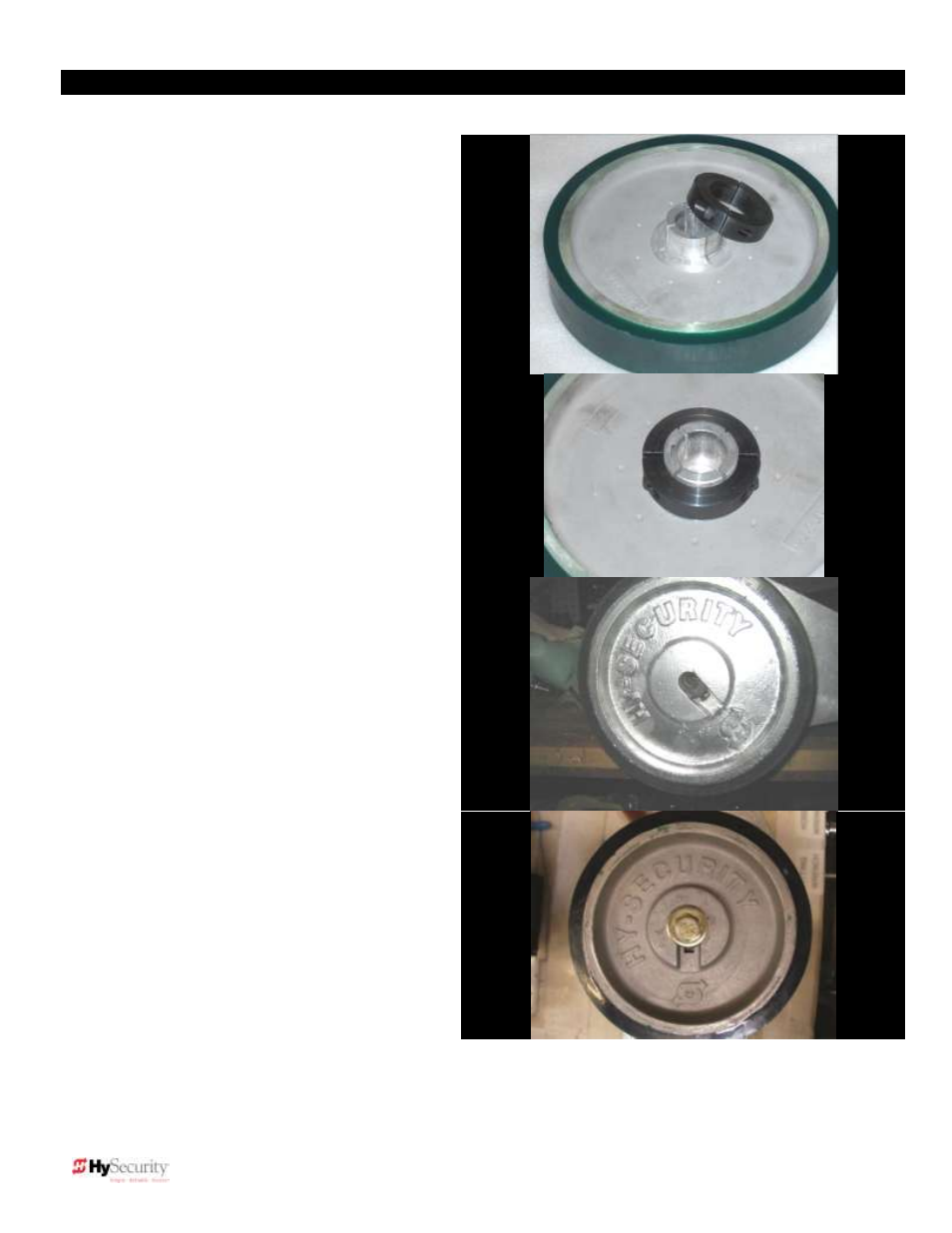

5. Locate the new wheel and locking
collar. Remove the Cap Screws from
the collar. Put blue “thread locker” on
the Cap Screws and reinstall them.
6. Place the locking collar on the
machined inside hub on the
replacement wheel (collar splits
between hub splits) and lightly tighten.
Make sure the collar is seated against
the back of the wheel hub.
7. Slide new drive wheel (with collar)
onto the motor shaft and seat with a
mallet.
8. Install the new bolt and new washer
on the wheel/motor assembly.
