© 2012 Installation and Reference Manual D0119 Rev. J

Appendix

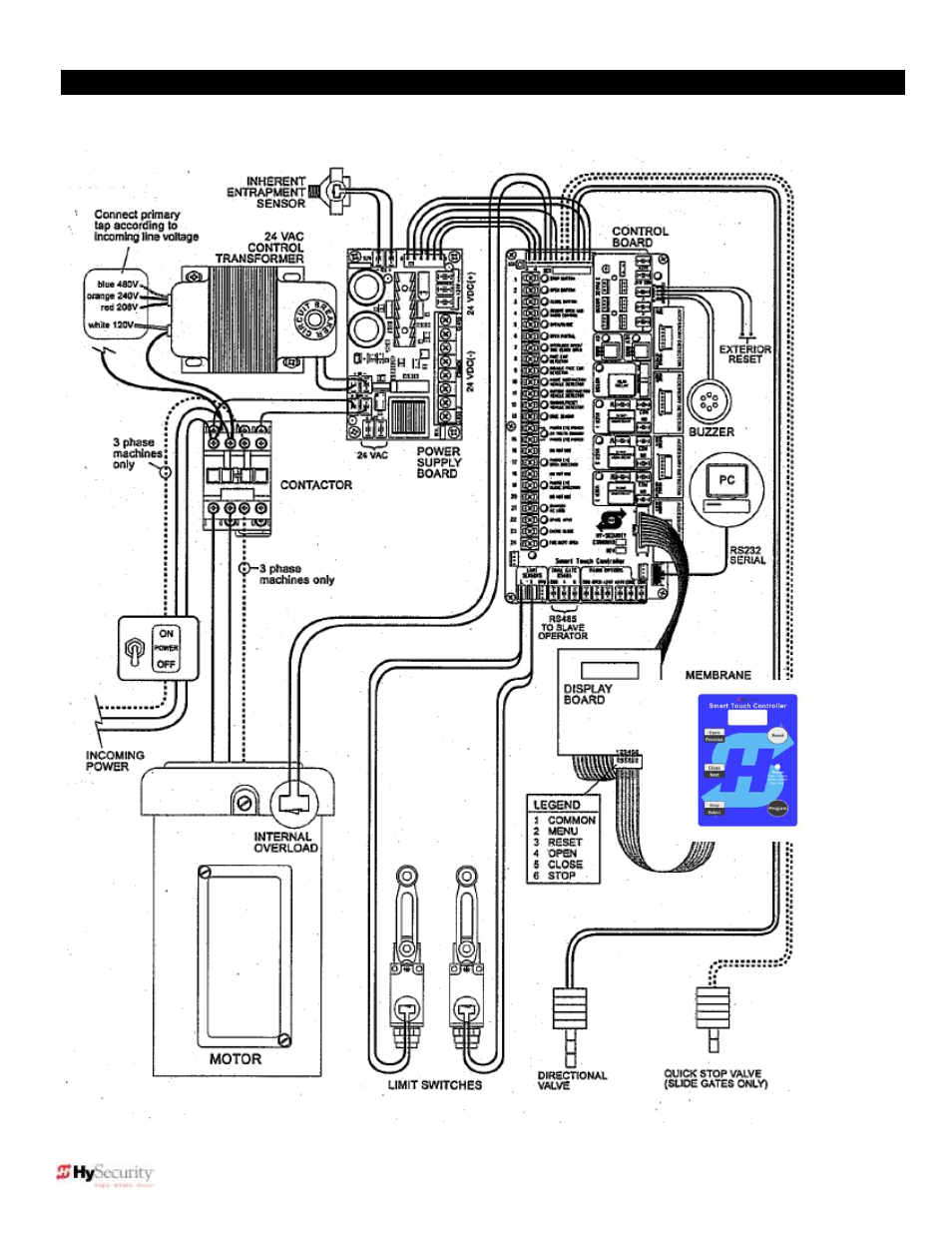

— Smart Touch Controller Connections
