800-321-9947

www.hysecurity.com

D0482 Rev B Page 2

Features of the S.T.A.R.T. software and operator code upgrades include:

New dual (DG) menu allows easy integration of dual gate installations (Master/Slave and Sally Port Gates) using

the RS 485 communication capabilities.

A new menu item, Sequenced Gates (

), has been added to the STC Installer Menu. This feature handles

communication between gates in sequence, such as a barrier arm and a slide gate. How to program a sequenced

gate is described in the StrongArm M30 Programming and Operations Manual, available online at

www.hysecurity.com. The information will soon be available in the SlideDriver product manuals.

ModBus:

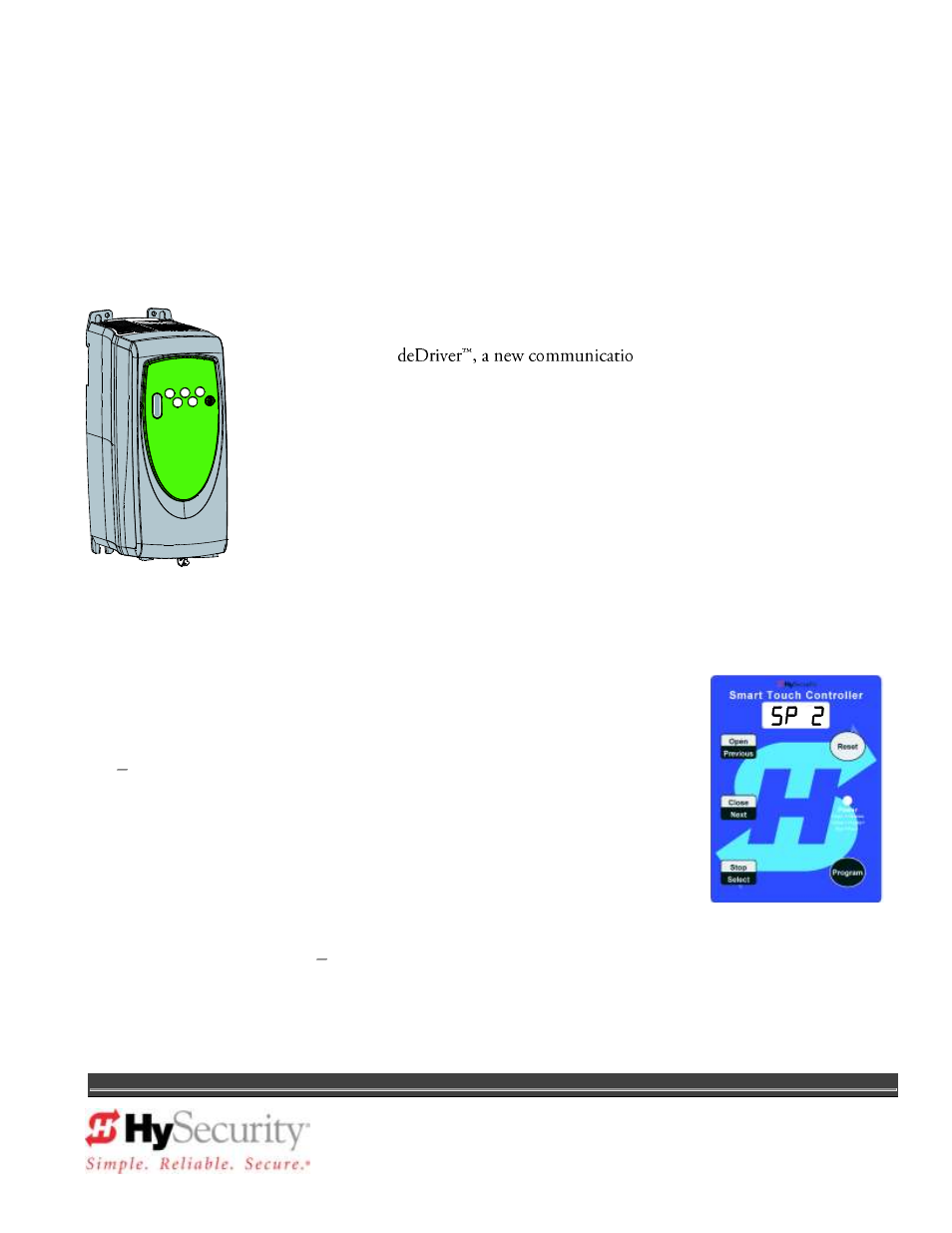

New communications protocol for variable frequency drive (VFD) SlideDriver

operators.

In the 50VF series Sli

n protocol allows the STC to

constantly monitor the Variable Frequency Drive (VFD) and record events in the STC

history log. The history log is easily accessible using the HySecurity S.T.A.R.T. program

and a PC laptop computer.

The new communication protocol reduces intermittent operator issues caused by site

power quality issues and the STC resets VFD faults or error codes upon receiving a new

command which eliminates unnecessary field calls. It also provides smoother acceleration

and deceleration.

All 50VF2/3 SlideDrivers shipped after January 1, 2012 will have the new ModBus cable and communication

protocol installed. If you need replacement parts for your existing 50VF series operators, be sure to have the

serial number of the operator available when you order parts.

New SlideDriver configuration as of June 1, 2012: If you install a new
50VF2/3 operator, the speed is factory set at 2 foot per second (2 ft/s). To
change the speed, you will need to access the Installer Menu. Refer to Section 3

Smart Touch Basics in the manual.

 sets the 50VF2/3 speed to approximately 2 ft/s.

 sets the 50VF2/3 speed to approximately 3 ft/s.

 and are not used. (The operator will not run if you change the
speed setting to 0 or 1.)

NOTE: To enable Emergency Fast Operate (EFO), you also need to set the Emergency Close Mode
( = 1). Refer to Section 3 Setting the Emergency Fast Operate. If you set the speed and receive an ERR6,
check the cable & wiring connections between the VFD and STC.
