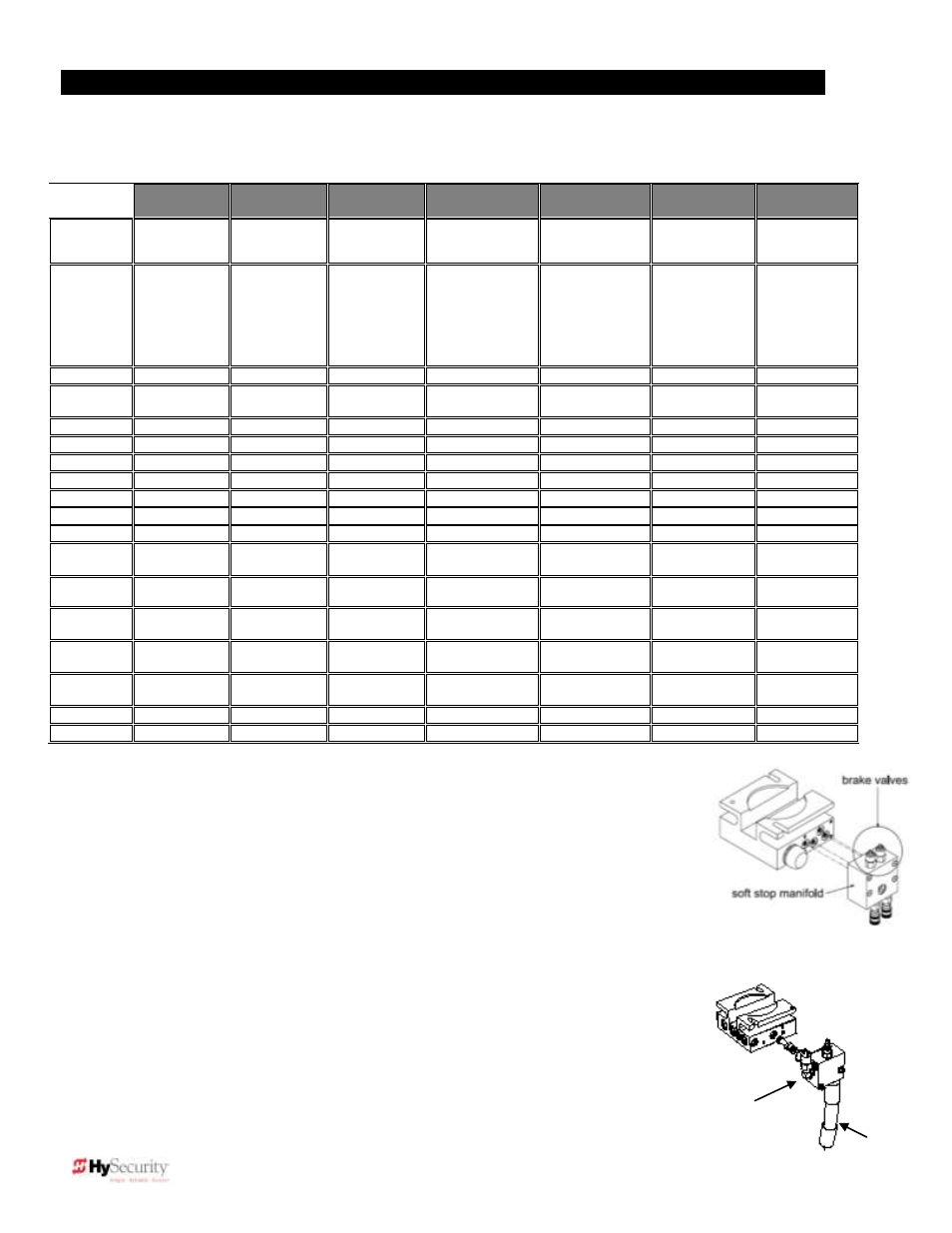

1 © 2010 Installation and Reference Manual D0119 Rev. J
SlideDriver Models
HySecurity manufactures many hydraulic slide gate operator models to suit the desired gate panel size,
weight and speed. This manual should be used for the SlideDriver operators. (The 50VF series has its own
manual, D0125). Identify your operator model and note the changes in instructions and final adjustments.
SlideDriver
10
SlideDriver
40
SlideDriver
30F
SlideDriver
50VF2*
SlideDriver
50VF3*
SlideDriver
80
SlideDriver
200
General
Commercial
industrial,
high security Commercial
industrial,
high security Commercial
industrial,
high security Commercial
industrial, high
security Commercial
industrial, high
security Commercial
industrial, high
security Commercial
industrial, high
security
Gates Lighter gates
Heavier gates
to 4,000 lbs.
Heavier gates
(3,000 lbs.)
and faster (20
inches/sec.)
Variable
Frequency Drive
(easy start and
stop) heavy
gates (5,000
lbs.) and fast
(26 inches/sec.) Variable
Frequency Drive
(easy start and
stop) heavy
gates (5,000
lbs.) and fast
(36 inches/sec.)
Very heavy
gates
(up to
8,000 lbs.)
Heaviest
gates (up to
20,000 lbs.)
Duty Continuous Continuous Continuous Continuous Continuous Continuous Continuous
Part
Number
222 SS 222 E 222 EX 1.7 222 X2 222 X3 222 X1 444 XS
Modular 10-M 40-M 30F-M 50VF2-M 50VF3-M 80-M -
Prison 10-C 40-C 30F-C 50VF2-C 50VF3-C 80-C 200-C
24V UPS 10 UPS 40 UPS 30F UPS - - 80 UPS 200 UPS
Solar 10-S 40-S 30F-S - - 80-S 200-S
HP 1 hp 1 hp 2 hp 2 hp 2 hp 2 hp 5 hp
Speed 12” / sec. 12” / sec. 20” / sec. 26” / sec. 36” / sec. 12” / sec. 12” / sec.
Soft Stop no yes yes yes yes yes yes
Brake
Valves
no yes yes yes yes yes yes
Soft Start no no yes
ultra soft start
and stop ultra soft start
and stop
yes yes
Drawbar
Pull
300 lbs. 300 lbs. 300 lbs. 300 lbs. 300 lbs. 600 lbs. 1,200 lbs.
Weight
Capacity
1,000 lbs. 4,000 lbs. 3,000 lbs. 5,000 lbs. 5,000 lbs. 8,000 lbs. 20,000 lbs.
Drive
Wheels 2, 6” drive
wheels 2, 6” drive
wheels 2, 6” drive
wheels 2, 8” drive
wheels 2, 8” drive
wheels 2, 8” drive
wheels 4, 8” drive
wheels
UL Class I, II, III, IV I, II, III, IV III, IV III, IV III, IV III, IV III, IV
Warranty 5 years 5 years 5 years 5 years 5 years 5 years 5 years
*SlideDriver 50VF models use Installation and Reference Manual D0125. Download it at
www.hysecurity.com.
Stopping the Gate
Most models (except SlideDriver 10 and 40) employ a time
delay Soft Stop system. Additionally, brake valves are used to
control the stopping of heavy or fast moving gates. These
valves are exclusive to HySecurity operators. They are
independently adjustable to allow the gate to stop predictably
and without banging.
Starting the Gate
To accommodate for loads moving beyond one foot per second, it is necessary to Soft
Start the load gently and stop it smoothly. HySecurity accomplishes Soft Start with another
exclusive feature we call an Accumulator With Out Gas (AWOG), which diverts some of
the start-up hydraulic flow, accommodates for the load, and starts the gate smoothly, similar
to letting your foot slowly off a car clutch without any lurching.
The downward facing AWOG (shown right) improves the life and performance of a gate
system and never needs adjustment.
soft start manifold
Downward facing
AWOG
