CTI Products RCD Advanced Client-Server User Manual
Page 70

MCN Config Program: Display Tables Window
70
68-11824-210

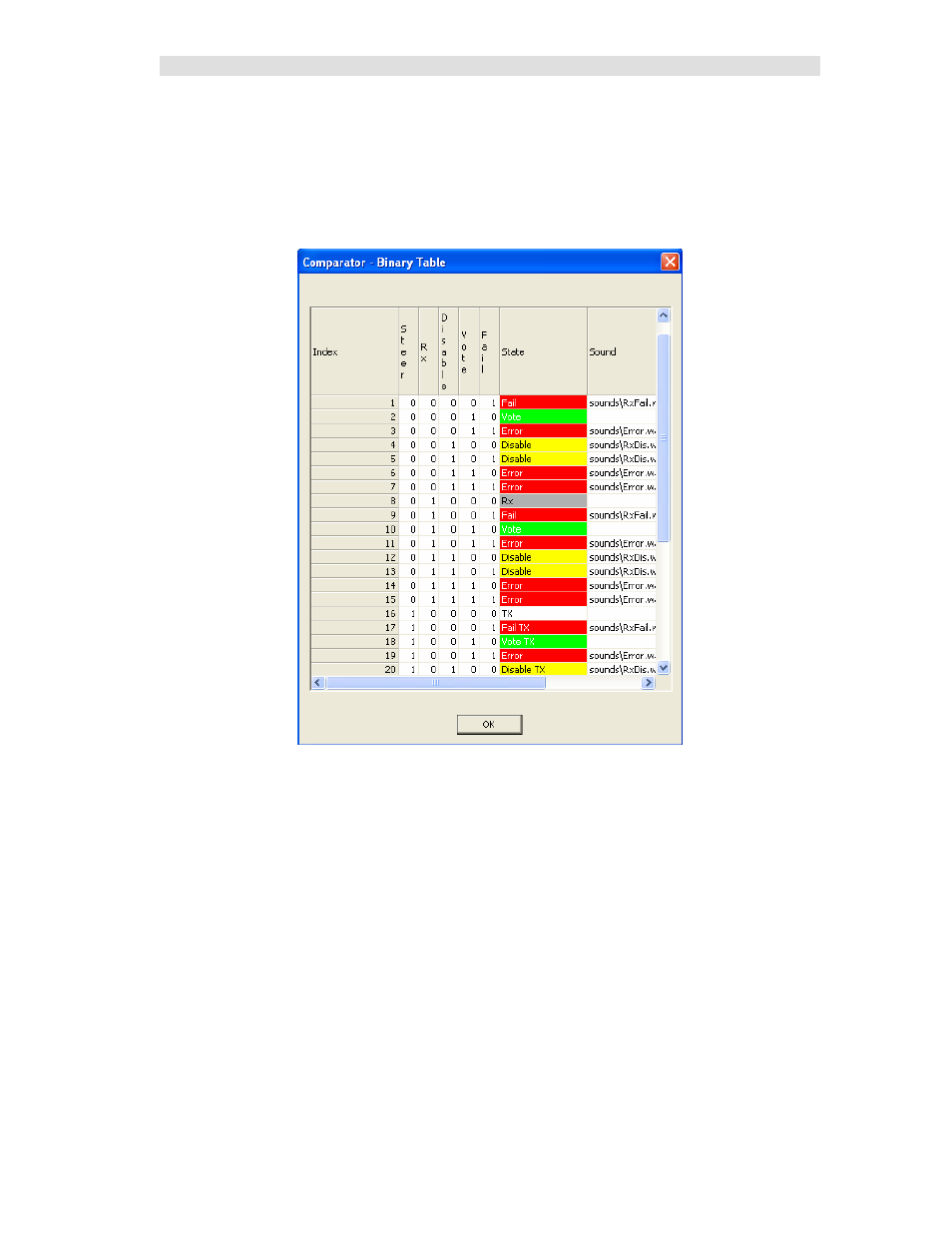

State Table Verify
Since the entries in the Display Table are free-format (and also allow Don't Care bits), it's easy to build a
Display table that doesn't work like you thought it would. You can verify how the MCN software will
interpret the table by hitting the Verify button on the lower left of the Display Table window. This will
bring up a Display Table Verification window. This will show the states that result from each possible
binary input value.
