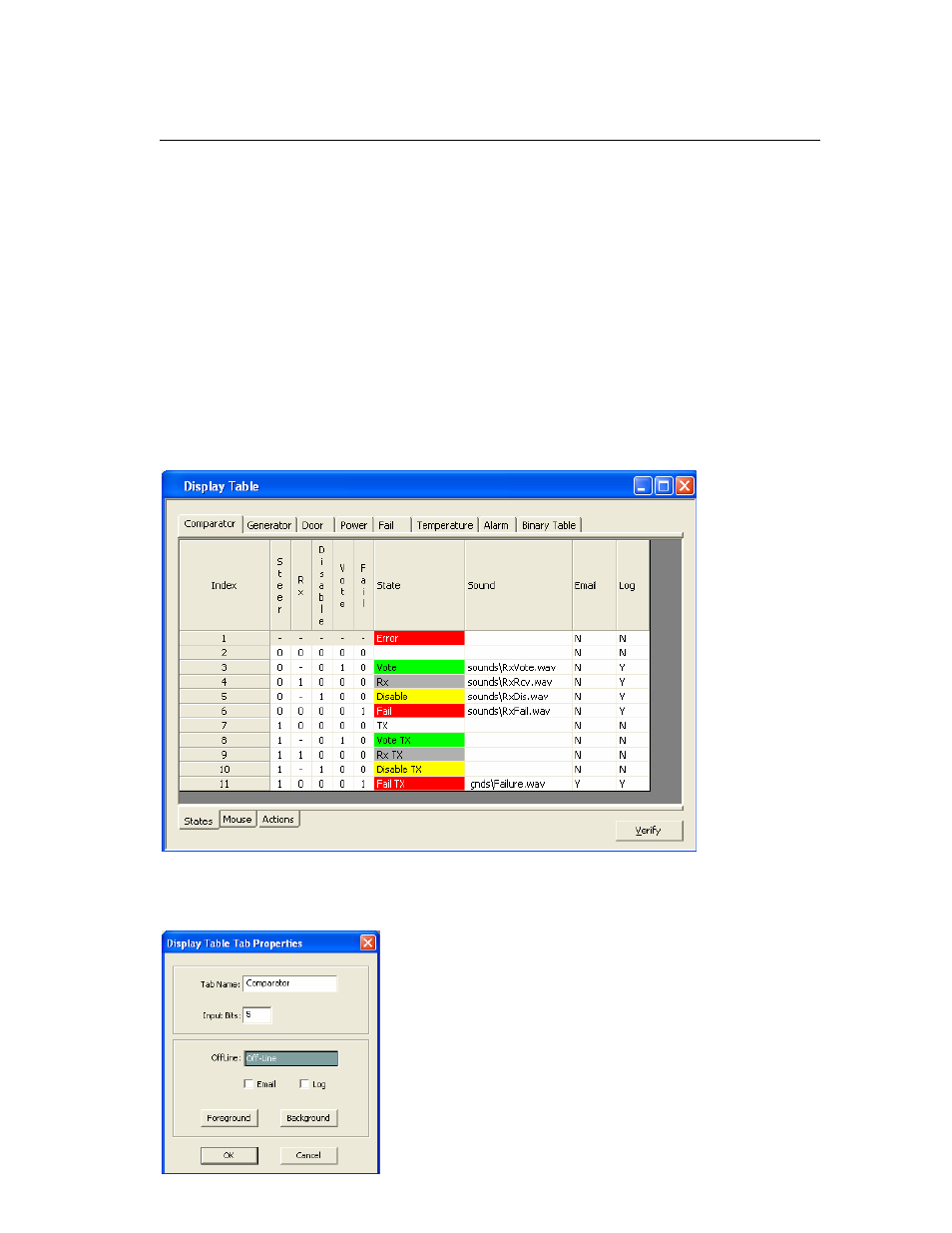

Display Tables Window
The Display Tables window allows you to define various Display Tables for I/O devices. The Display
Tables map the input bit values from the devices to the text and colors to be displayed on the screen.
A number of Display Tables are pre-defined:
•
Comparator
•
Generator
•
Door
•
Power
•
Fail
•
Temperature
•
Binary
From the menu, select View / Display Tables.
Display Table Tab Properties
To display the overall properties for a Display Table, Double-Click on its tab.
From this window you can change the following items
for this Display Table:
-Display Table (tab) name
-Number of input bits
-Offline Text & Colors (displayed when a module is offline)
-Overall Email & Logging flags.
