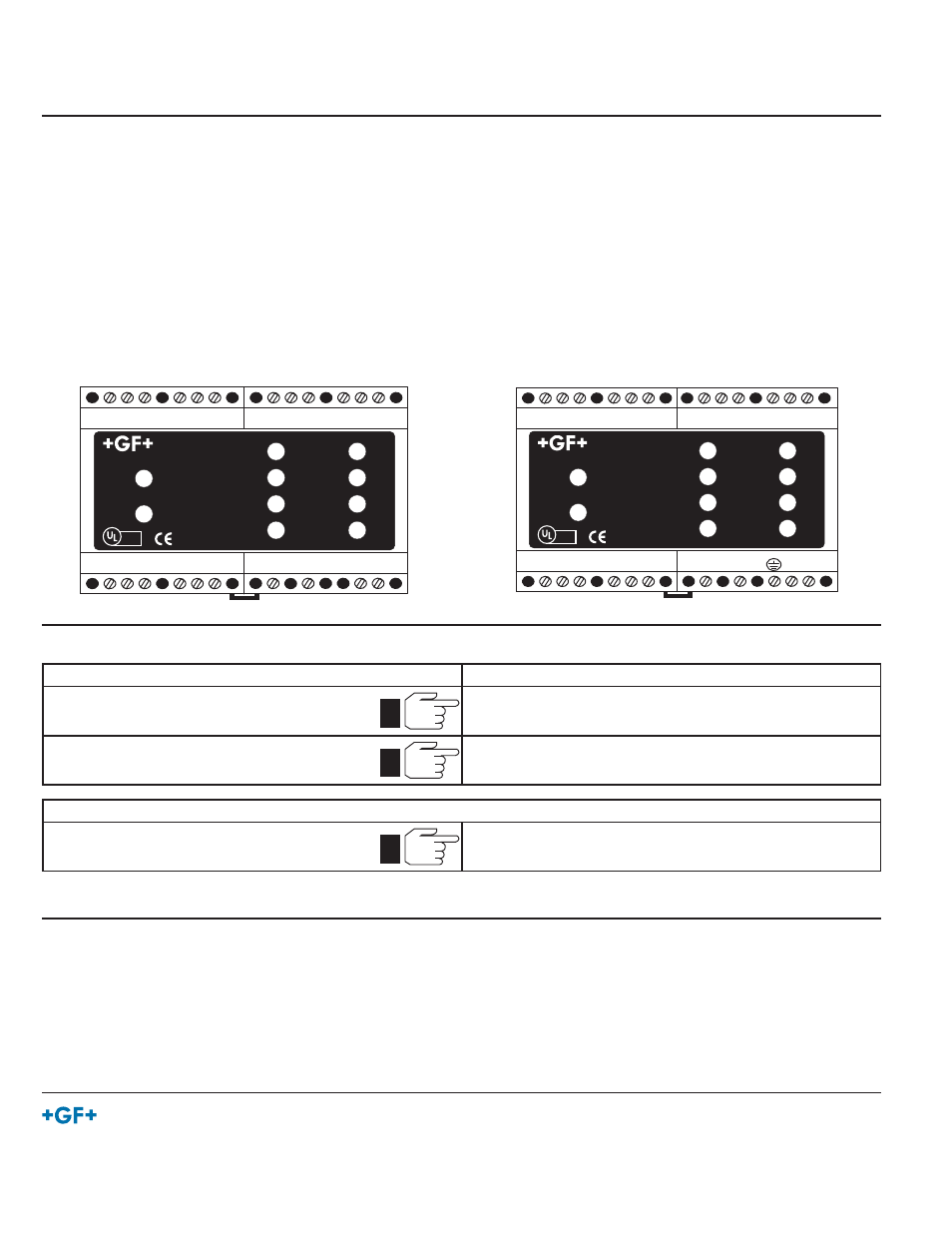

6. Operation
S
3
L Terminals
• Connect “input” directly to the S 3 L instrument.
• Connect an S 3 L sensor to “pass-thru” for convenience.
Indicator LEDs
DATA On when S 3 L serial data is transmitted,
or when a relay is in TEST mode.
POWER On when input power is connected to 8059
Relay A On when Relay A is energized
Relay B On when Relay B is energized
Relay C On when Relay C is energized
Relay D On when Relay D is energized
Test Buttons
Test A Press to manually control Relay A
Test B Press to manually control Relay B
Test C Press to manually control Relay C
Test D Press to manually control Relay D
NC COM NO
RELAY A
NC COM NO
RELAY B
NC COM NO
RELAY C
NC COM NO
RELAY D
DC OUTPUT
+ -
DC INPUT
- + + S 3 L - + S 3 L -
INPUT PASS-THRU
COM
POWER
Signet 3-8059 Relay Module
Test A
Test B
Test C
Test D
Relay A
Relay B
Relay C
Relay D
LISTED
E171559 ®
Relays
The 250V/5A dry-contact relays are controlled via the serial
connection to the instrument. Use NO (normally open), COM
(common) and NC (normally closed) to control external
equipment.
Normal Operation:
• Green COM LED fl ickering rapidly.
• Both relays are controlled by the host instrument.
8. Ordering Information
3-8059-4 159 000 772 External 4-Relay Module
3-8059-4AC 159 000 773 External 4-Relay Module with power supply
3-8050.396 159 000 617 RC Filter Kit
6205-0002 159 000 858 DIN Rail, 1m
6205-0003 159 000 859 End Clips, DIN Rail
NC C NO
RELAY A
NC C NO
RELAY B
NC C NO
RELAY C
NC C NO
RELAY D
+ S 3 L - + S 3 L -
OUTPUT 24VDC
+ -
AC INPUT INPUT PASS-THRU
L N
COM
POWER
Signet 3-8059 Relay Module
Test A
Test B
Test C
Test D
Relay A
Relay B
Relay C
Relay D
LISTED
E171559 ®
7. Relay Test
NOTE: The 8059 will automatically return to normal operation if no buttons are pressed for 5 minutes.
8059-4 8059-4AC
Action 8059 Response
Press and hold TEST button for 5 seconds (until
green DATA LED begins to blink slowly) • The selected relay is now controlled by the TEST button.
• Pressing the other relay TEST button has no effect.
Momentarily press TEST button to toggle relay. • The red RELAY LED will toggle to indicate relay condition.
To return relay to Normal Operation:
Press and hold the TEST button for 5 seconds
(until green DATA light begins to fl icker rapidly) • The relay returns to active status, controlled by the host
instrument.
