4 8860 Dual Channel Conductivity/Resistivity Controller
Monitor C1 Conductivity and C2 Conductivity simultaneously. This is the
permanent display when Channel 2 is ON.
Monitor Channel 1 Conductivity and Channel 1 Temperature. This is the
permanent display when Channel 2 is OFF.
Monitor Channel 2 Conductivity and Channel 2 Temperature. This view is
available only when Channel 2 is ON.
Monitor Percent Reject, Difference, or Ratio
(Channel 1 to Channel 2 or Channel 2 to Channel 1)
Monitor Loop 1 and Loop 2 current output simultaneously.
Monitor Loop 3 and status of Relays 3 and 4 (Open Collector 3 and 4).
Monitor date for scheduled maintenance or date of last calibration.
Signet
Conductivity/Resistivity
Transmitter
C1 23.45 µS
C2 8.72 µS
Relay 1 Relay 2
ENTER
VIEW menu
• During normal operation, the ProcessPro displays the VIEW menu.
• When using the CALIBRATE or OPTIONS menus, the ProcessPro will return to the VIEW
menu if no activity occurs for 10 minutes.
• To select the item you want displayed, press the UP or DOWN arrow keys. The items
will scroll in a continuous loop. Changing the display selection does not interrupt system
operations.
• No keycode is necessary to change display selection.
• Output settings cannot be edited from the VIEW menu.

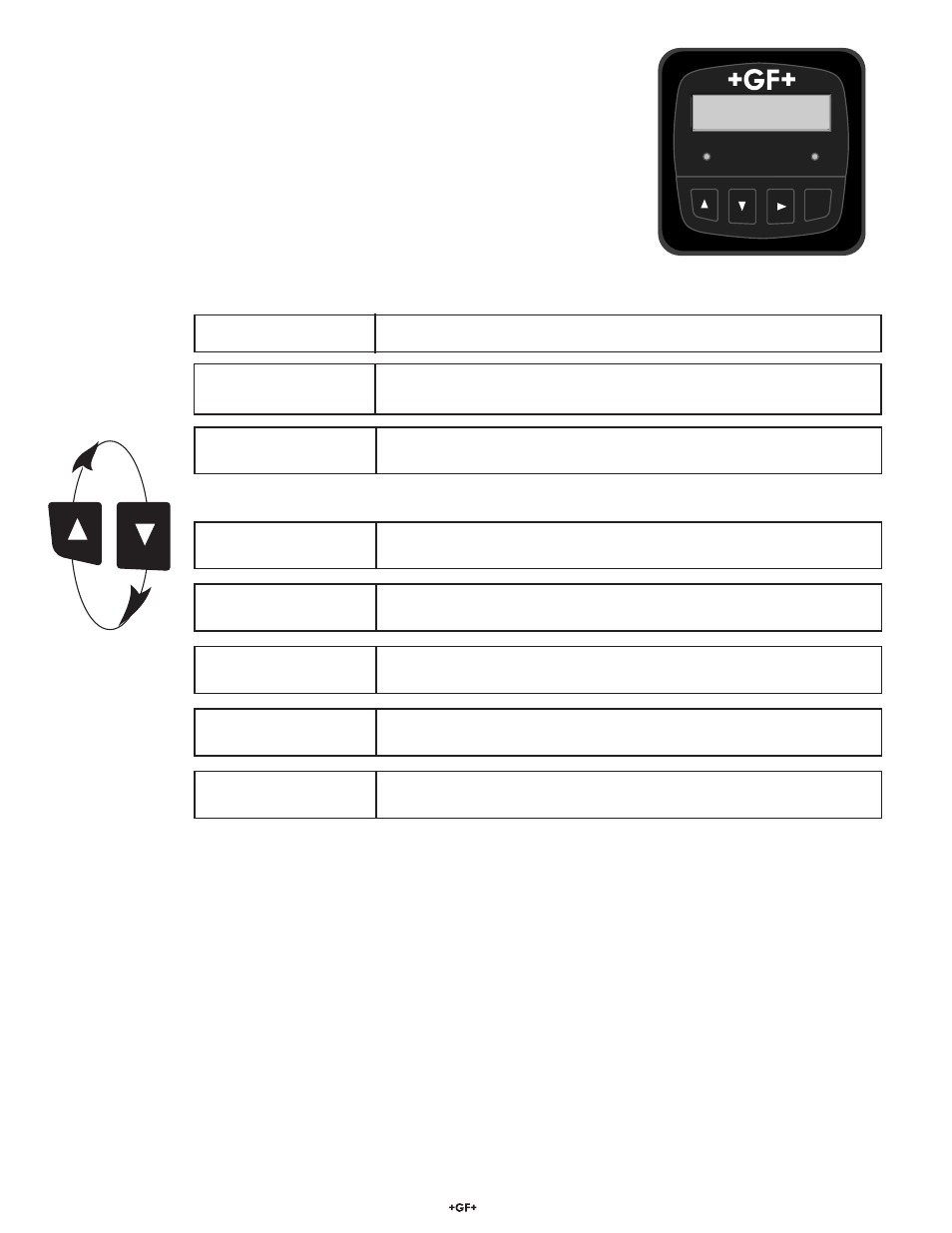

View Menu
Display Description
The VIEW displays below are temporary. The permanent display will return after 10 minutes
C1 1000.00 μS/cm
C2 30.00 μS/cm
C1 1000.00 μS/cm
25.0 ºC
C2 30.00 μS/cm
25.0 ºC
Reject C1 → C2
97.00
Loop 1 12.03 mA
Loop 2 5.69 mA
Loop 3 13.7 mA
R3 ON R4 PLS
Last Cal
04-20-08
