Replacement of Components and Modules
Danger!
risk of injury from high pressure!
Before loosening pneumatic lines and valves, turn off the pressure and vent the lines.
•
note!
electrostatic sensitive components / modules!
Before changing the position measuring system, switch the electrical power for the control head off so that
•
destruction of the PCB and electronics module is avoided.
The device contains electronic components, which react sensitively to electrostatic discharge (ESD). Contact
•
with electrostatically charged persons or objects may be hazardous to these components. In the worst case
scenario, they will be destroyed immediately or will fail after start-up.
Observe the requirements in accordance with DIN EN 61340-5-1 and 5-2 to minimize or avoid the possibility
•
of damage caused by sudden electrostatic discharge!
Also, ensure that you do not touch electronic components when the power supply voltage is present!
•
deinstallation procedure:
Switch the electrical power to the control head off!
→
Loosen the control head from the process valve.
→
Open the housing observing the notes contained in chapter
→
8. Opening and Closing the Housing.
4.
Pull out position
measuring system
2.
Fold electronics
module to the
front
1.
Loosen Torx10
screw
3.
Bend/break off the snap-fit hooks
inwards - 4x
(bottom view)

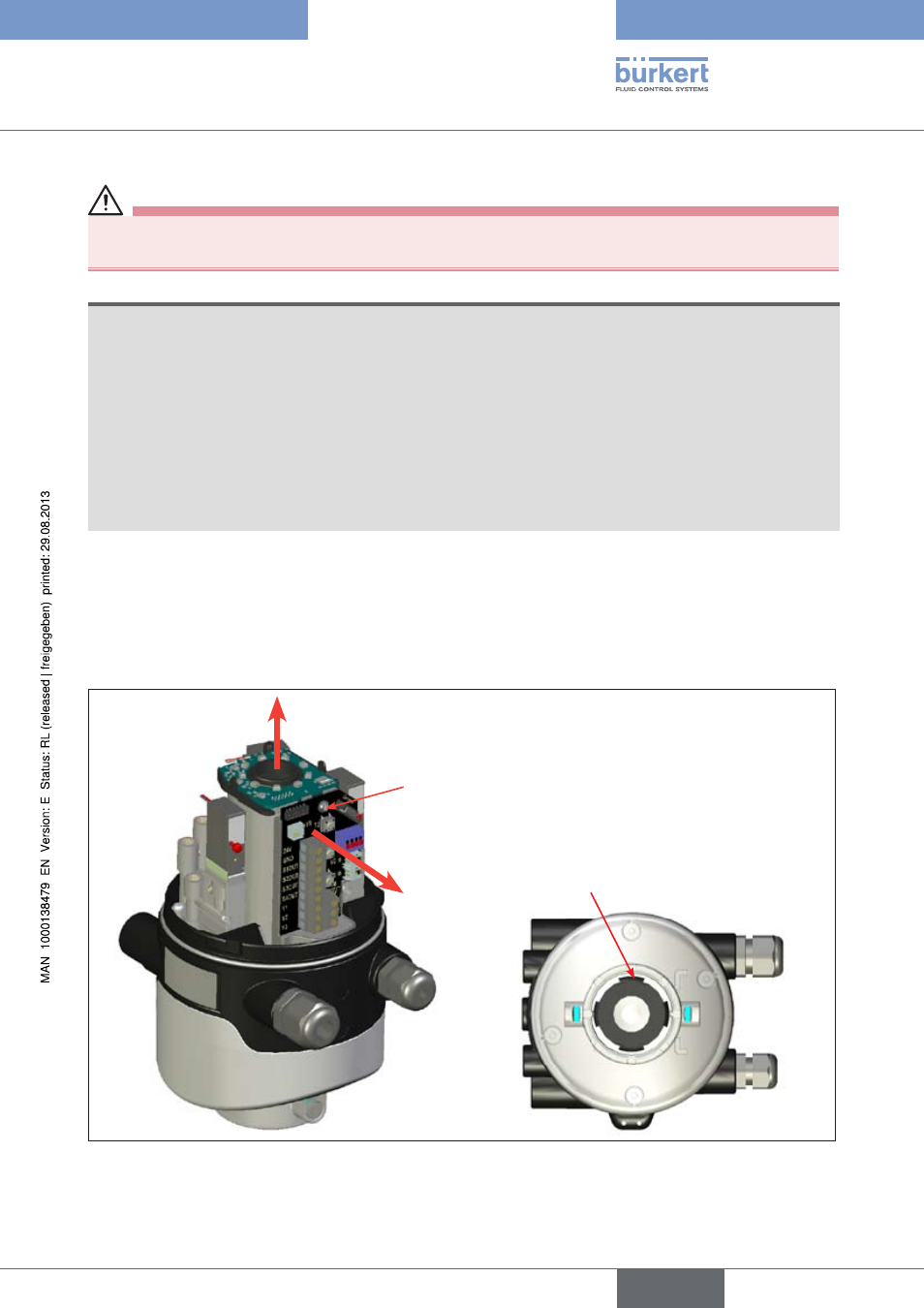

Dismantling the Position Measuring System
Fig. 34:
english
Control Head Type 8681
