68
Position Measuring System
If necessary, return control head and system to normal state (switching position, power supply).
→
Close the housing observing the notes contained in chapter
→
8. Opening and Closing the Housing.
If the piston or the target are located outside the measuring area during the teaching phase, the LED will
flash 3 times in the defined fault color.
If the piston or target are outside of the measuring area, no positions signals will report back, i.e. no LEDs
will be lit.
The Teach-In buttons can be assigned to any of the positions of the piston, i.e. T1 does not have to corre-
spond to the lower piston position, etc.

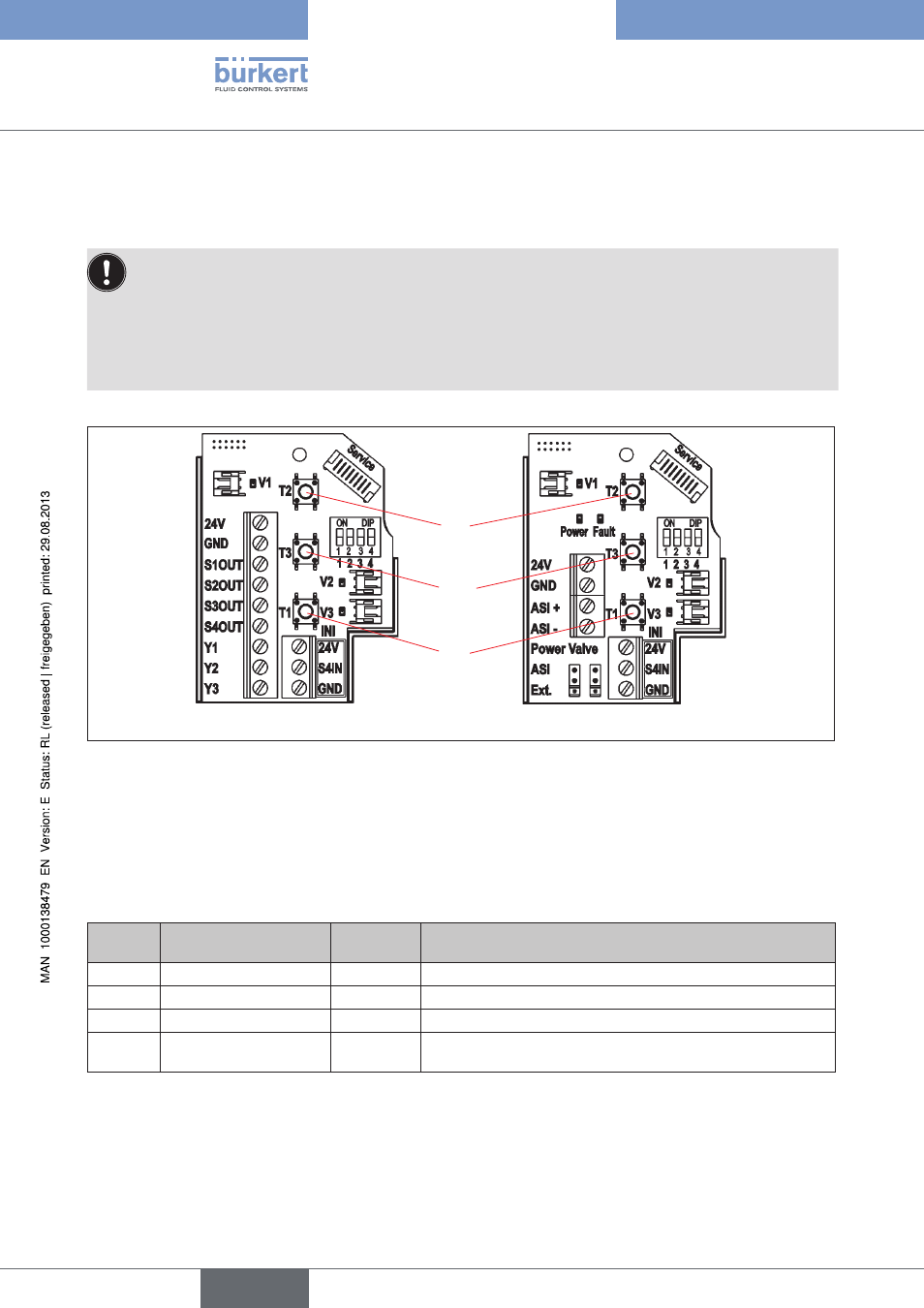

Teach-In buttons
T2
T3
T1
Electronics module, 24 V DC Electronics module, ASI
Teach-In buttons on the electronics modules (on the example of the electronics modules for 24 V DC and AS-i) Fig. 27:
Teach-in functions 15.2.
Teach-in functions and Teach-in reset 15.2.1.
teach-in
button
Function activation
duration
optical feedback
T1 Teach function S1 1.5 s S1 blinks quickly three times, then continuously in the encoded color
T2 Teach function S2 1.5 s S2 blinks quickly three times, then continuously in the encoded color
T3 Teach function S3 1.5 s S3 blinks quickly three times, then continuously in the encoded color
T1 + T2 Teach-In reset S1, S2,
and S3
2.5 s Blinks in the fault color
Difference between the different "blinking patterns" - see chapter 16.2. Blinking Pattern & Fault Signaling.
english
Control Head Type 8681
