Mechanical data

6.3.

Cover safeguard:

- Seal max Ø2

and / or

- plastic self-cutting

screw 3.0x10

M16x1.5 (2x)

G1/4 (2x)

G1/8 (3x)

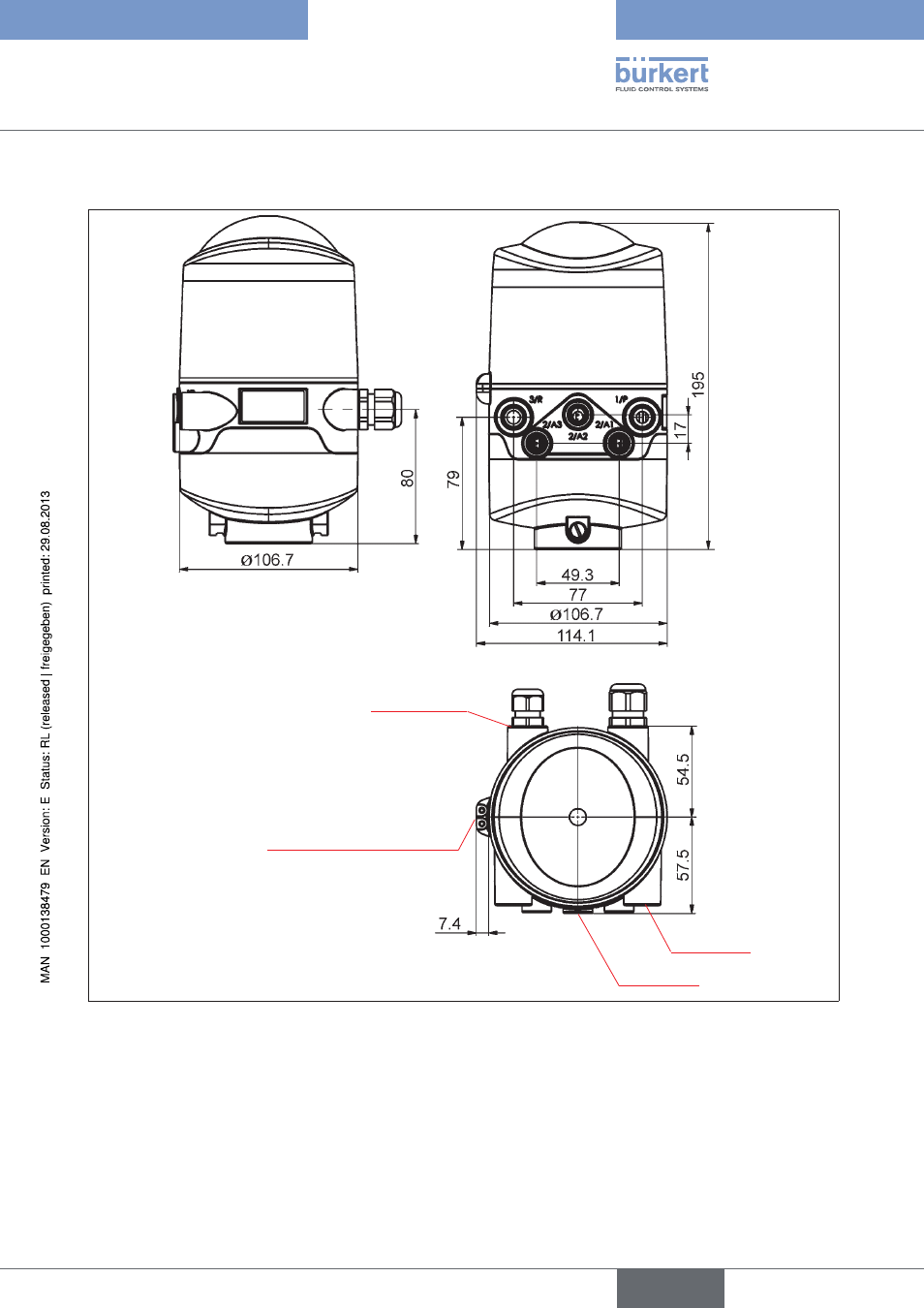

Dimensional drawing

Fig. 3:

Weight:

ca. 0.8 kg

housing material:

outside: PA, PP, PPO, VA
inside: ABS, PA, PMMA

sealing material:

outside: CR, EPDM
inside: EPDM, FKM, NBR

english

Control Head Type 8681
