52
DeviceNet - Design

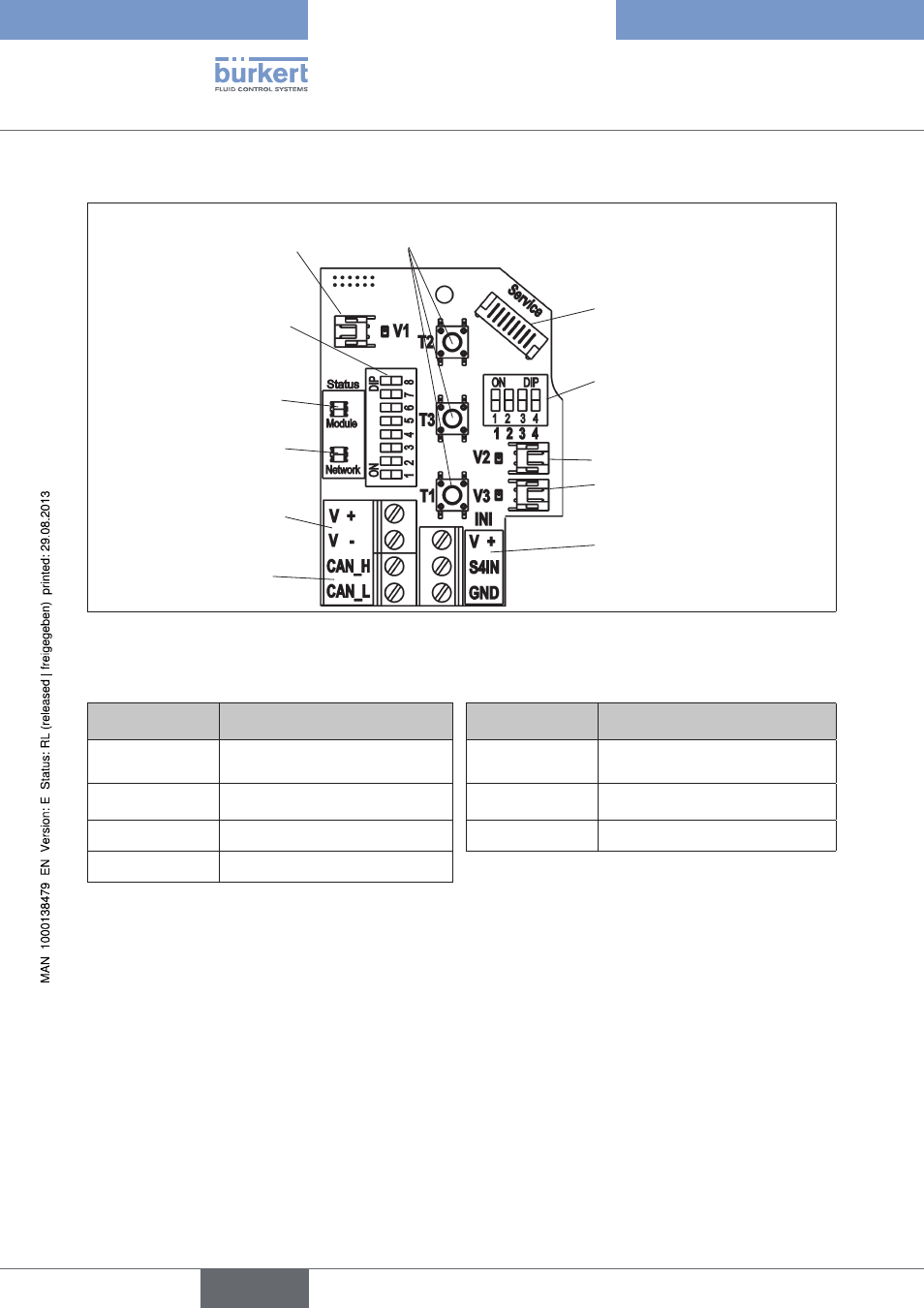

Devicenet electronics module:
Solenoid valve
connection with
status
LED for Valve 1
DIP switches
for setting the
address and
baud rate
Service
interface
DIP switches for
color coding
the LEDs
Connection
for the exter-
nal initiator
DeviceNet
power supply
Bus
signals
Teach-In buttons
T1-3
Solenoid valve con-
nection with status
LEDs for
Valves 2 & 3
Status LED
for device
Status LED
for network
DeviceNet electronics module Fig. 20:
terminal strip configuration:
designation
terminal strip
configuration
designation
terminal strip
configuration
V +
DeviceNet
power supply
V + Power supply for external initiator
V-
DeviceNet
power supply
S4 IN External initiator input
CAN_H Bus signal CAN high GND GND external initiator
CAN_L Bus signal CAN low
english
Control Head Type 8681
