Page 85
Camera interfaces
FireWire Hardware Installation Guide V8.0.0
85

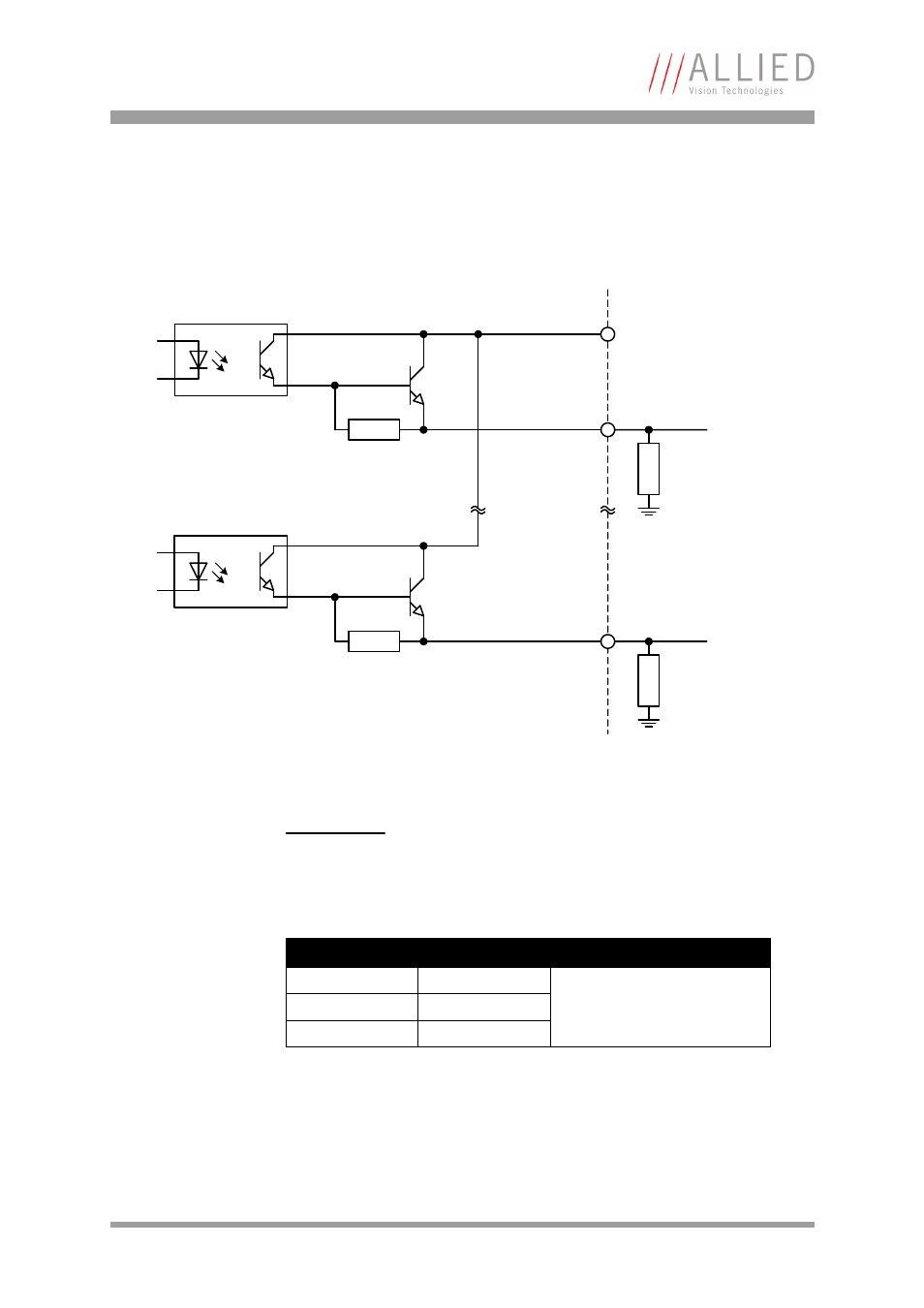

Oscar output description
Oscar output block diagram
Figure 47: Oscar: output block diagram
Caution
Oscar
•
Max. 200 mA per output
•
OutVCC
36 V may damage the camera.
OutVCC
Resistor value
5 V
1 k
5 mA load
recommended
12 V
2.4 k
24 V
4.7 k
Figure 48: Oscar: OutVCC and external resistor
external
internal
OutVCC
GPOut1
GPOutX
R
R
