Camera interfaces
FireWire Hardware Installation Guide V8.0.0
37
Camera interfaces
Each AVT camera has the following interfaces:
•
The 12-pin camera I/O connector (Guppy: 8-pin) provides different control
inputs and output lines.
•
One or two IEEE 1394a or 1394b connectors with screw lock mechanism
provide access to the IEEE 1394 bus and thus makes it possible to control
the camera and output frames.
– Oscar, Marlin and Guppy provide one 1394a connector.
– Pike and Stingray provide 2x 1394b connectors.
– Guppy PRO provides one 1394b connector.
Note
For information on status LEDs see the Technical Manuals.

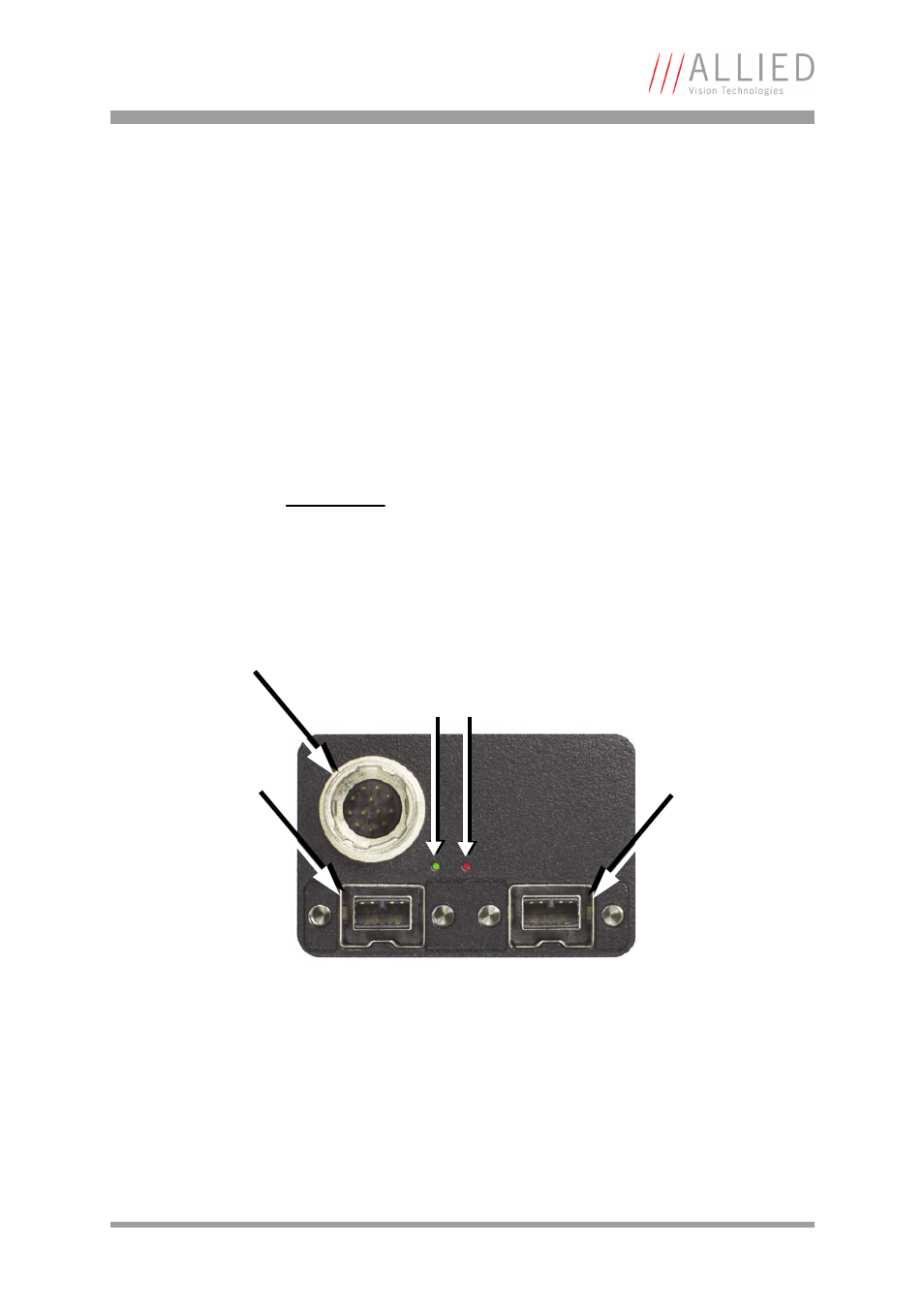

Figure 8: Example: Rear view of Stingray camera (2x 1394b copper)
Status LEDs
LED2
12-pin camera
IEEE 1394b connector
(copper)
IEEE 1394b connector
(copper)
LED1
I/O connector
