Camera interfaces
FireWire Hardware Installation Guide V8.0.0
73
Guppy output description
Guppy output block diagram
(For board level see Chapter
Guppy (board level) IO block diagram

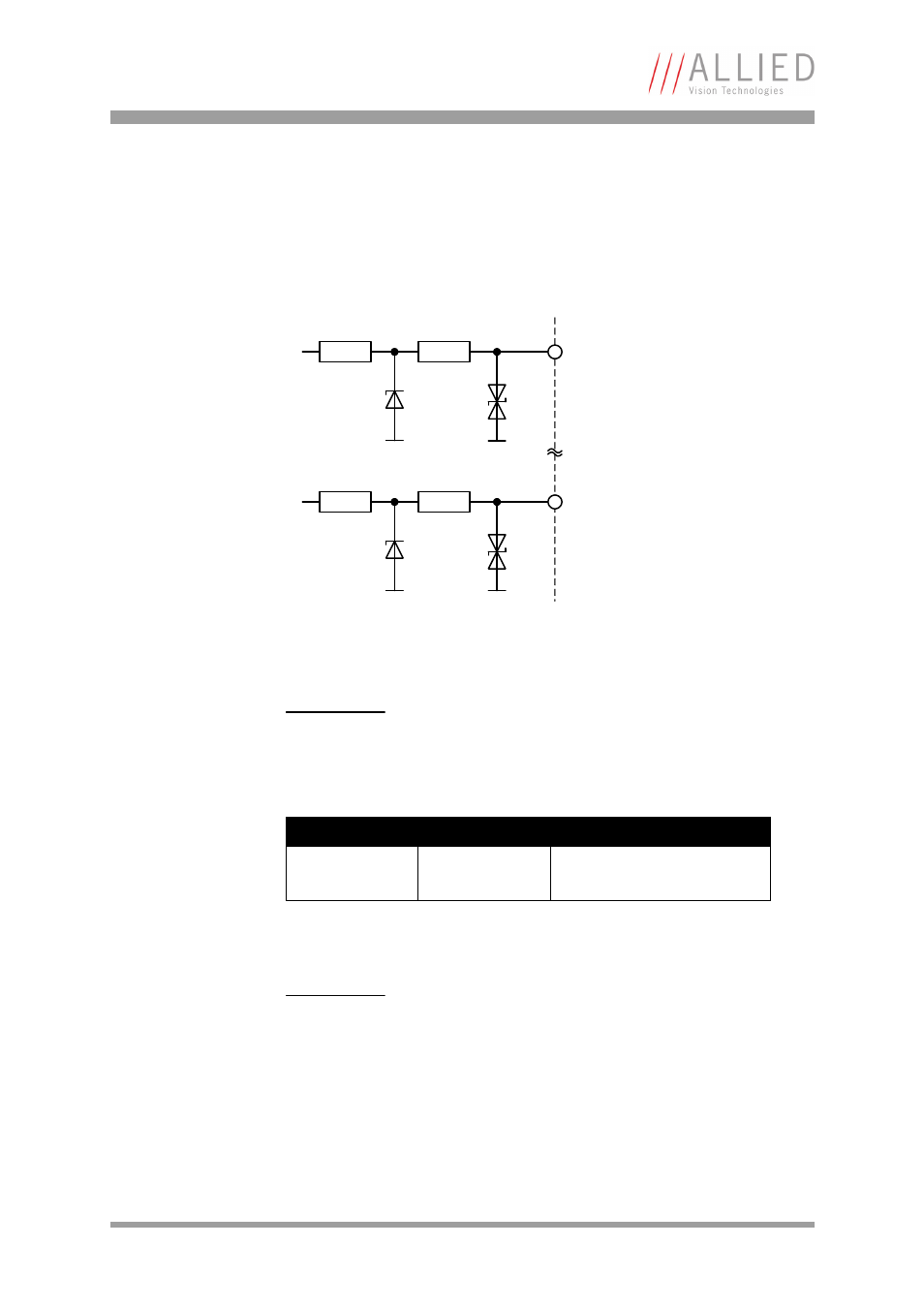

Figure 36: Guppy: output block diagram
Caution
Guppy
Max. 20 mA per output
OutVCC
Resistor value
5 V
1 k
5 mA load
recommended
Figure 37: Guppy: OutVCC and external resistor
Note
Guppy F-503:
IntEna is high, when all pixels are integrated simultaneously.
Using IntEna with electronic rolling shutter and global reset
release shutter: see Guppy Technical Manual, Chapter Trigger
modi.
external
internal
GPOut1
GPOutX
GND
GND
GND
GND
