Camera interfaces
FireWire Hardware Installation Guide V8.0.0
41
IEEE 1394b port pin assignment
(Guppy PRO, Pike, Stingray)
The IEEE 1394b connector is designed for industrial use and has the following
pin assignment as per specification:

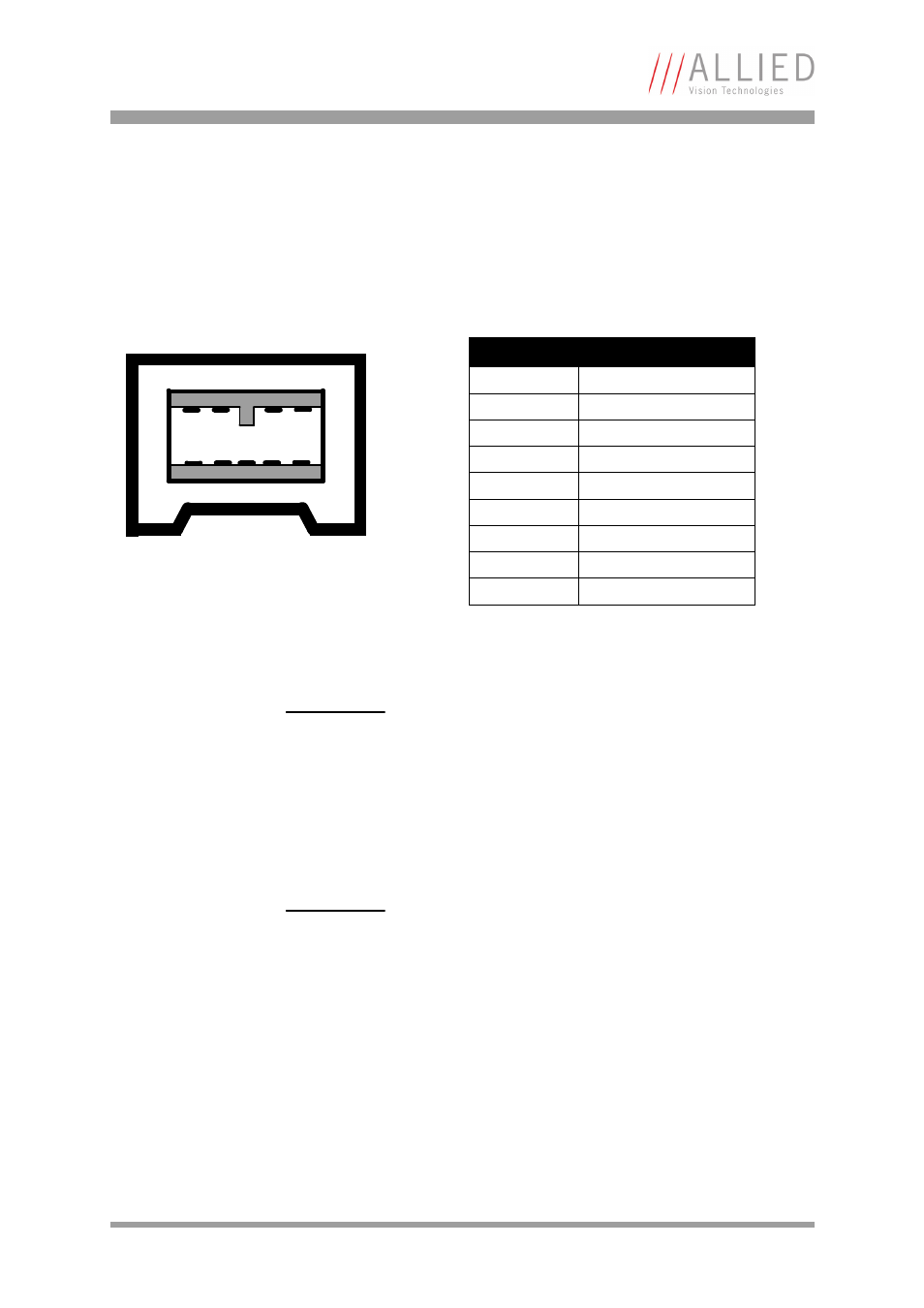

Figure 11: IEEE 1394b connector
Note
•
Both IEEE 1394b connectors with screw lock mechanism
provide access to the IEEE 1394 bus and thus makes it
possible to control the camera and output frames. Con-
nect the camera by using either of the connectors. The
other connector can be used to daisy chain a second cam-
era.
•
Cables with latching connectors on one or both sides can
be used. Ask your local dealer for more details.
www
For more information on cables and on ordering cables
online (by clicking the article and sending an inquiry) go to:
1
2
3
4
5
6 7 8
9
Pin
Signal
1
TPB-
2
TPB+
3
TPA-
4
TPA+
5
TPA (Reference ground)
6
VG (GND)
7
N.C.
8
VP (Power, VCC)
9
TPB (Reference ground)
