Camera interfaces
FireWire Hardware Installation Guide V8.0.0
44

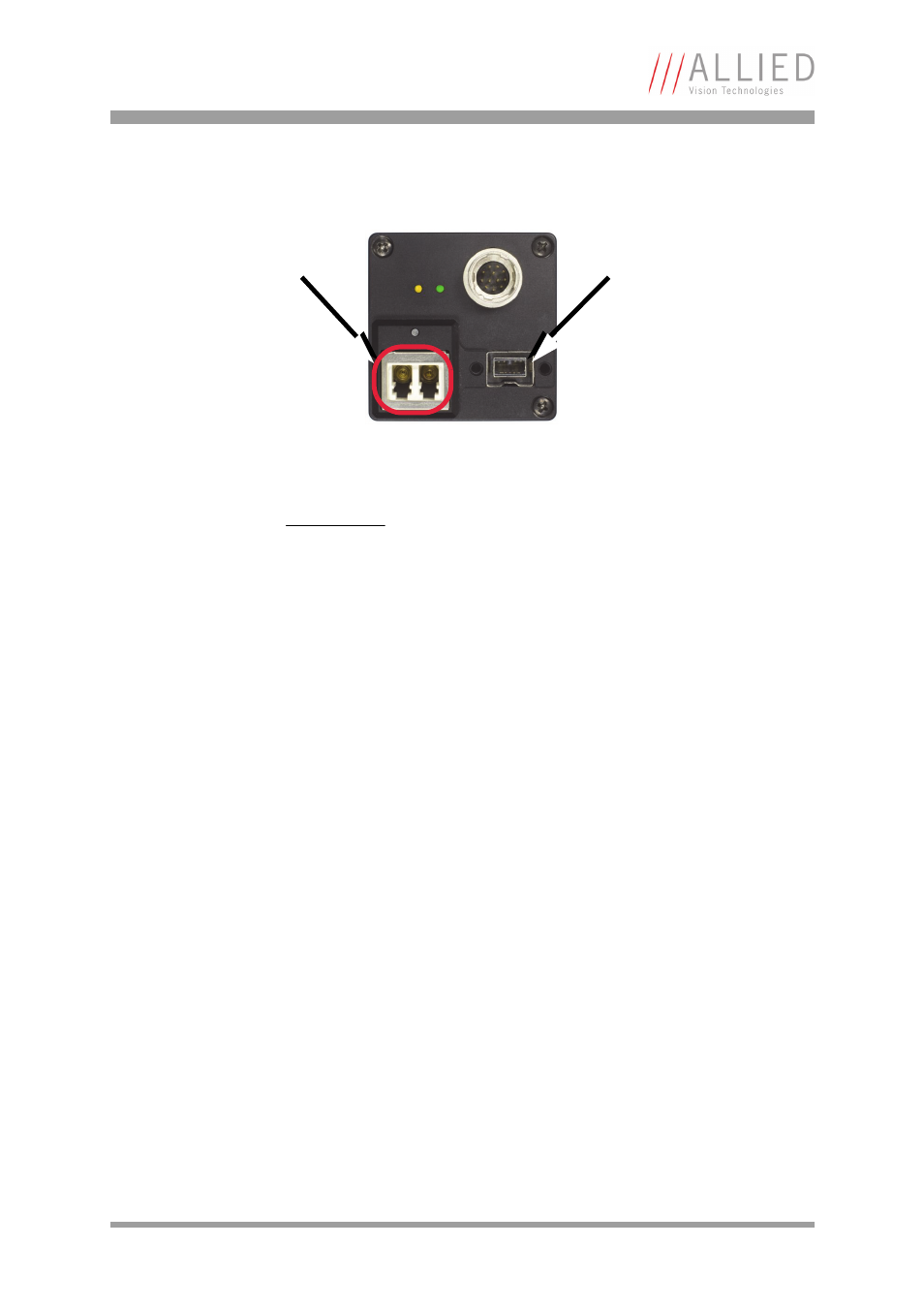

Figure 15: Rear view of Pike camera (1394b: 1 x GOF, 1 x copper) (Stingray similar)
Caution
Special warning for all Pike/Stingray models with GOF con-
nectors:
GOF connectors are very sensitive. Any dust or dirt may cause
damage.
•
Always keep the GOF connector and optical fiber plug
clean.
•
If GOF connection is not in use, keep GOF dust cover on
the GOF connector.
•
Reduce mating cycles to a minimum to prevent abra-
sion.
•
Please note that optical fiber cables have a very limited
deflection curve radius.
IEEE 1394b connector GOF
(2x optical fiber on LCLC)
IEEE 1394b connector
(copper)
