Board level camera (Guppy): IEEE 1394a port
pin assignment
Board level Guppies have two 1394a ports to allow daisy chaining of cameras.
The IEEE 1394a pin header (2.54 mm connector: FireWire connector 1) is
designed for adding a 1394a adapter cable of:
e.g. IEEE 1394 6 PIN - PANEL F TO 2X5 F (AVT#: K1200155)
It has the following pin assignment:

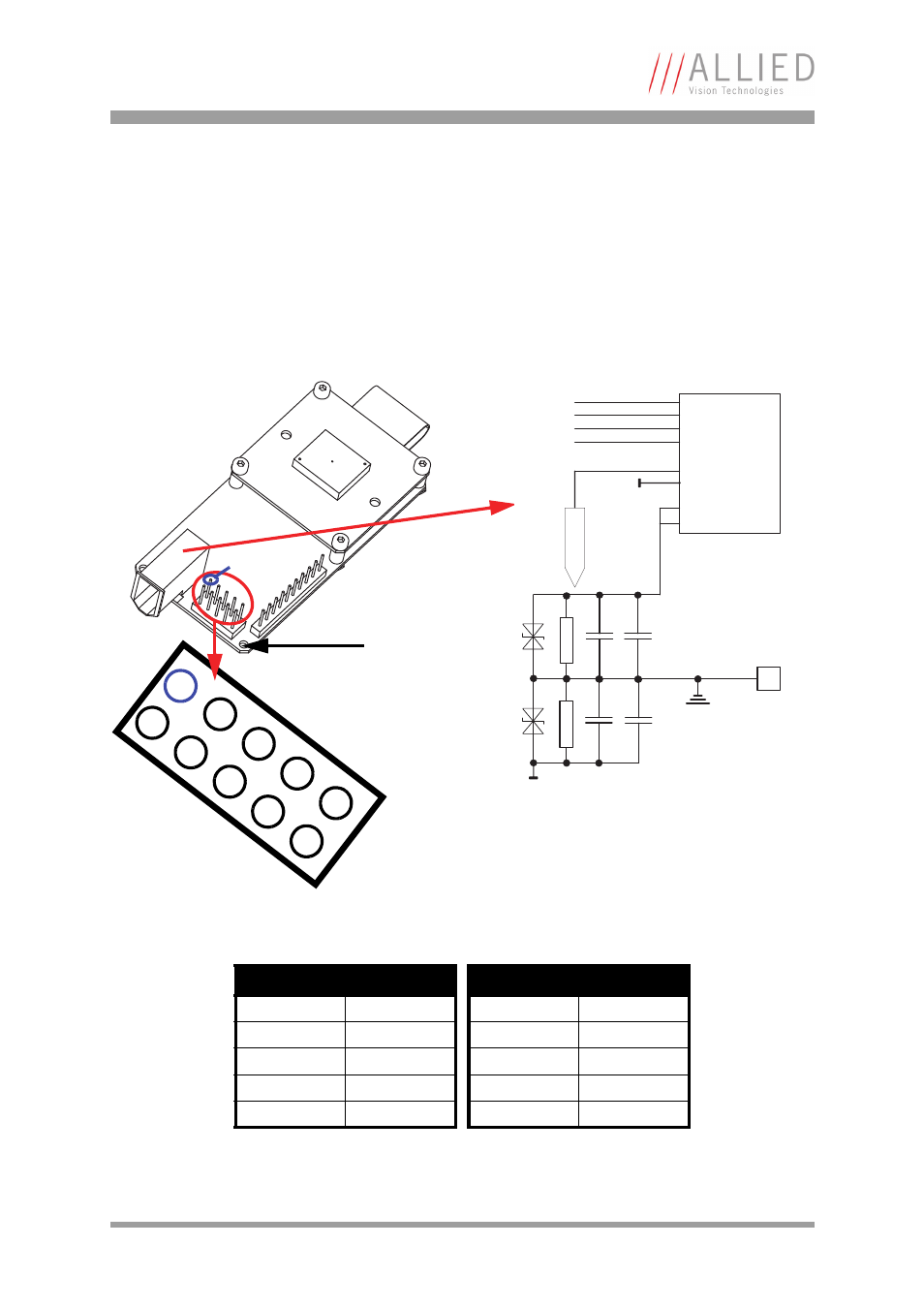

Figure 10: Board level camera (Guppy): IEEE 1394 FireWire connector 1 (view on pins)
Signal Pin Pin Signal
TPA+ 6 1 TPA-
- 7 2 GND
TPB+ 8 3 TPB-
- 9 4 Cable power
- 10 5 Cable shield
Table 7: Board level camera (Guppy): IEEE 1394a pin assignment (FireWire connector 1)
