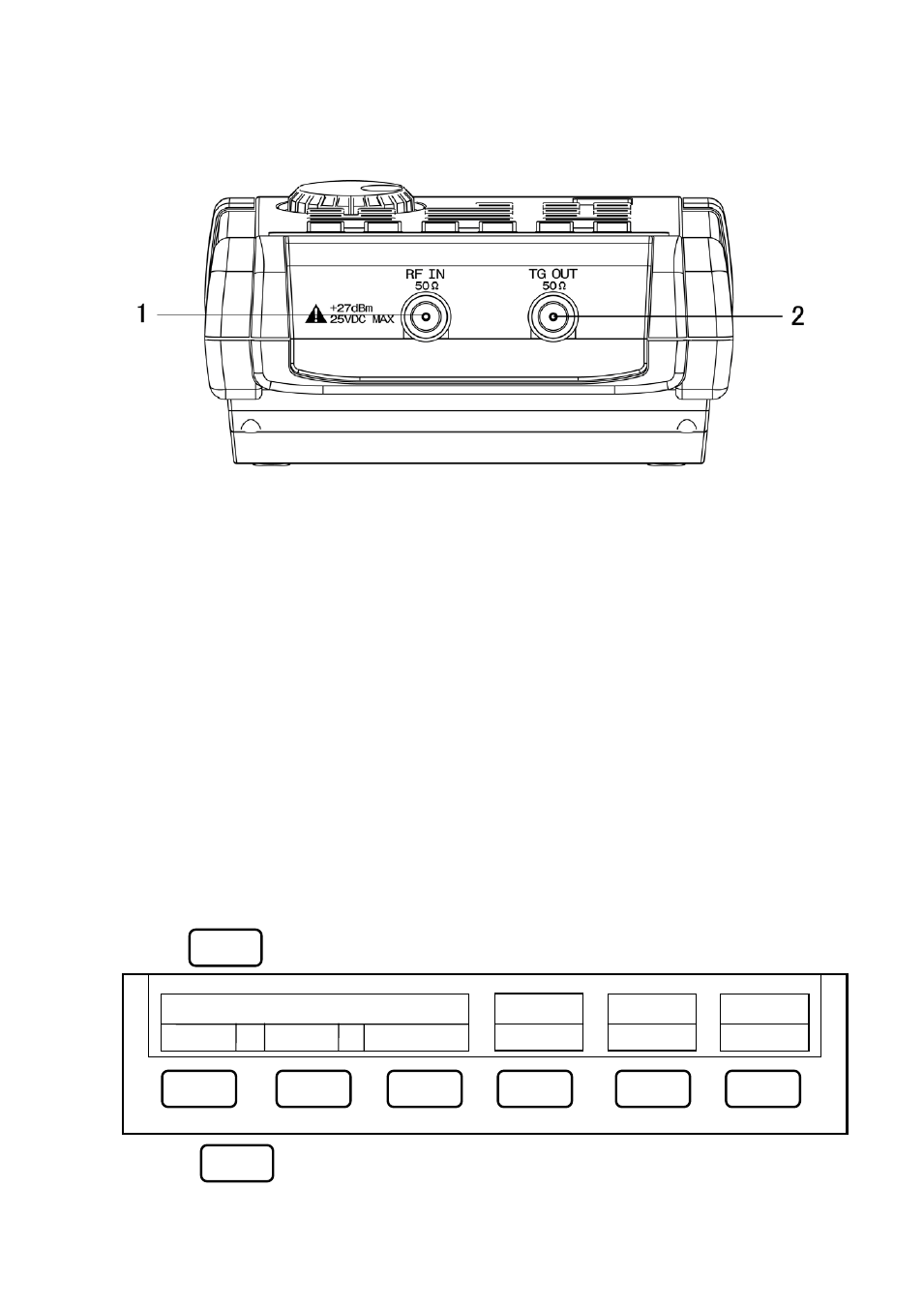

22.2 Description of I/O Connector
1) Input connector
N (J) connector
Input for an external signal
Make sure that the total power of input signals does not exceed +27 dBm.
2) Output connector
N (J) connector
It is an output terminal of Tracking Generator.
*Please set to “TG : OFF” to prevent the influence of the leak from the Tracking
Generator in case of disuse of the T.G. function..
22.3 ON/OFF Switching of T.G. Function
When is pushed, the following function menu is display.
1. When is pushed, T.G. MODE is set.
F1 F2 F3 F4 F5 F6
T.G.
MODE MANUAL
SWEEP
AUTO ALL AUTO
DET
SMPL
TRIG
INT
SWEEP
F6
