7.5.2 Main Menu Screen
Once HyperTerminal is open, ensure that the FXM has connected to the computer. See Figure 67 for connec-
tion indicators.
The main menu screen shows the Alpha FXM current input and output values, displays any faults or alarms
and gives access to the submenus. The Alpha FXM is controlled by submenu 3.
To access a particular submenu, type in the submenu number and press Enter. To update the main menu
screen, press Enter.
The complete menu tree is shown in Figure 67. Tables describing the Line Status, Output Status, Faults and
Alarms displays are given in Table E, Table F, Table G, and Table H.
a. The readings on the main menu screen do not automatically update to reflect changes in the
Alpha FXM status. Press Enter to update the screen.
b. For many functions you need to enter a password. The factory setting is 1111.

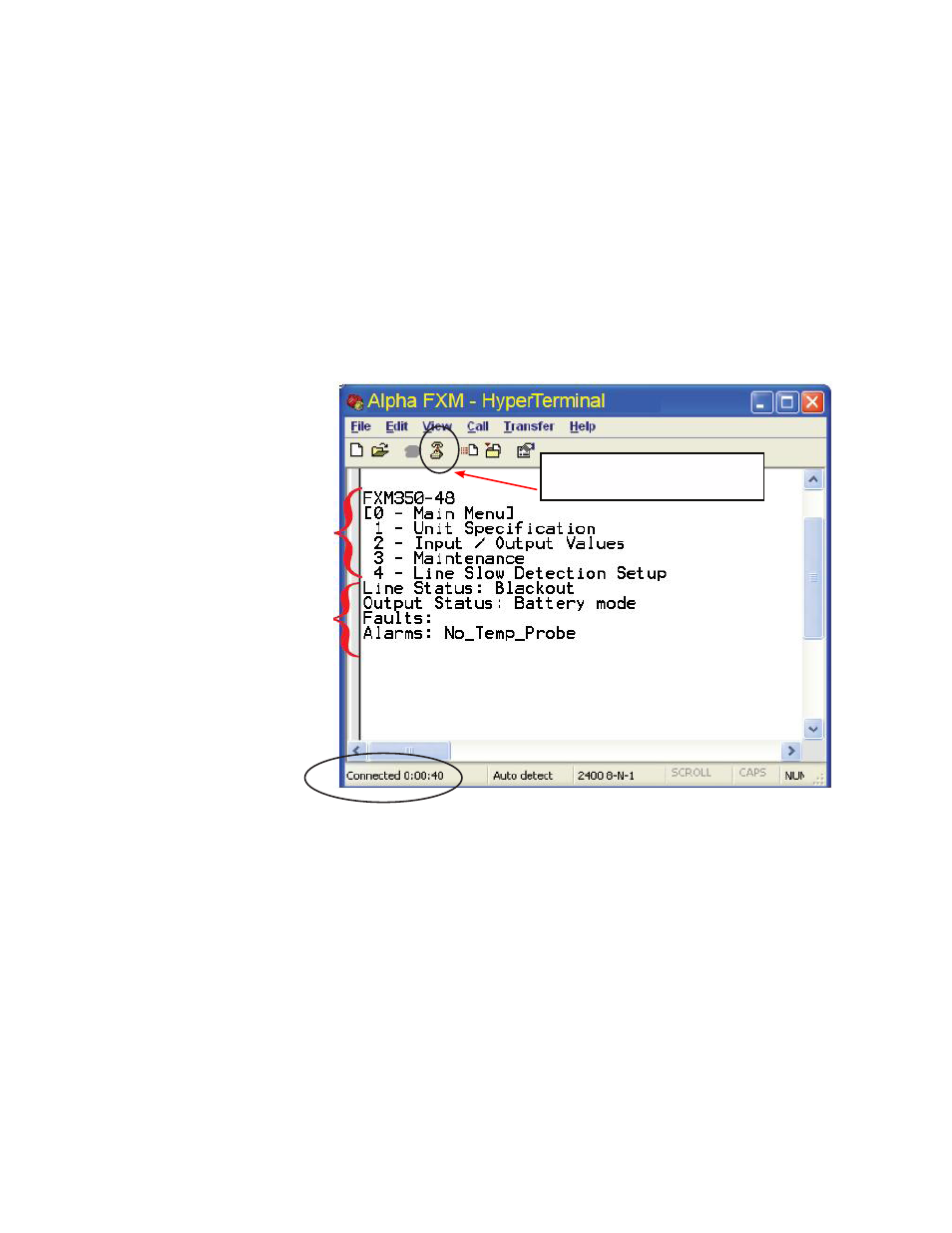

Figure 67 — Main Menu Screen
Submenu Numbers
Shows connected.
Status, Faults and
Alarms Displays
Telephone symbol is
off-hook when connected
