017-241-B0 Rev B 74
7.4.1 Installation and Set Up of the Alpha UPS Monitor
The following tools and materials are required:
• Alpha UPS Monitor, available for download from www.alpha.ca./downloads/
• Windows 2000 or later with Microsoft .NET framework installed
• USB computer cable
7.4.1.1 Checking Your Windows Computer for the .NET Framework
1. Click on the Start button.
2. Go to and click on Settings.
3. Click on Control Panel.
4. Double-click on the Add or Remove Programs icon.
5. Scroll through the list of applications. If Microsoft .NET Framework is already in the list, Framework is
already installed and you can install the Alpha UPS Monitor. If you don’t see it listed, you MUST install it
from the Microsoft Windows update web site before installing the software.

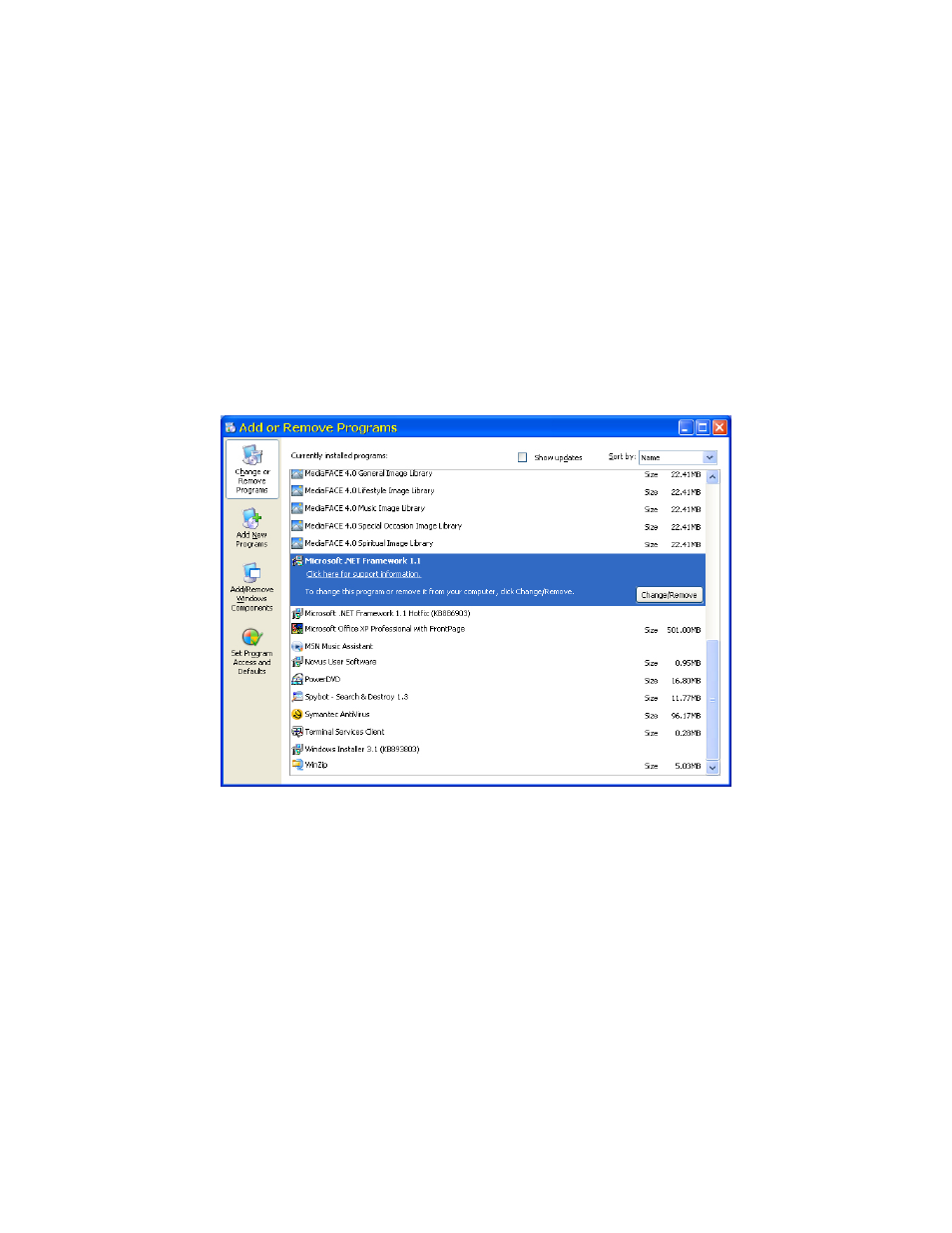

Figure 65 — Add or Remove Programs Window
7.4.1.2 Alpha UPS Monitor Installation Procedure
1. Install the Alpha UPS Monitor onto your computer. Restart the computer.
If you install the Alpha UPS Monitor on a version of Windows without the .NET framework installed, an error
message saying the framework is not installed will appear. Install the framework onto your computer, restart
your computer, and then try again to install the Alpha UPS Monitor.
2. Connect the computer cable from any USB communications port on the computer to the USB port on the
Alpha FXM front panel.
3. To start communications between the computer and the Alpha FXM, do one of the following:
• Click on the screen’s Online Indicator,
OR
• In the File drop-down menu, click on Connect to FXM.
If the computer cannot connect to the Alpha FXM, a pop up screen appears asking you to check the wiring
and your connection to the proper USB port.
