017-241-B0 Rev B 32
WARNING!
Make sure the line power is off and tagged. Switch off all input and output circuit break-
ers on the FXM350 before making any electrical connections.
5.2.2 Wiring the AC Input and Output

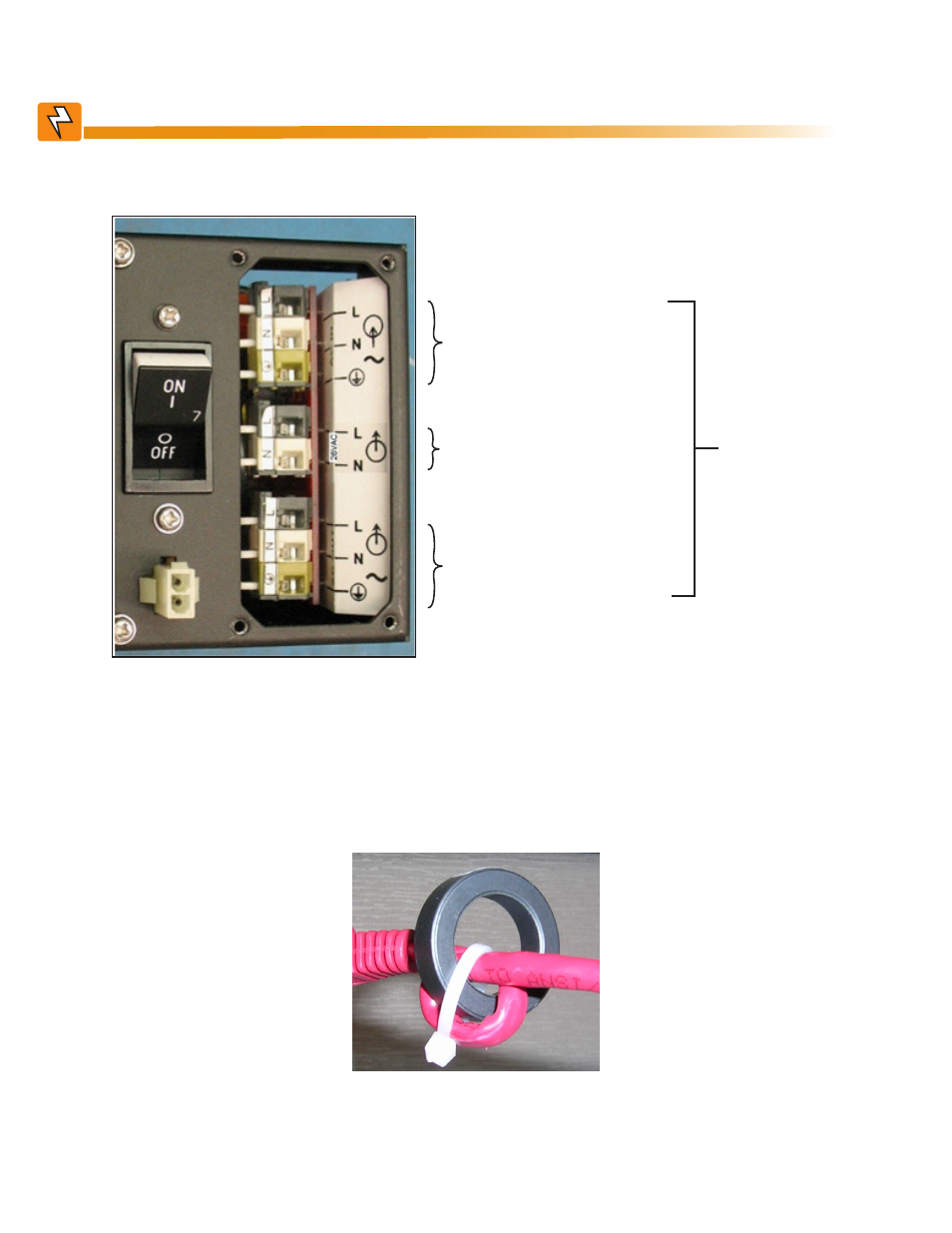

Figure 21 — FXM350 Electrical Connections
AC Input – 120/230Vac
(#14 AWG)
AC Output 1 – 120/230Vac
(#14 AWG)
AC Output 2 – 24Vac
(#12 AWG)
The electrical connectors are located on the right
side of the FXM350.
Ensure that the
cables are routed
through the AC
cover plate and/or
wiring box and suit-
ably strain relieved.
5.2.3 Ferrite Ring for Network Cable
Remove the ferrite ring and cable tie from the plastic bag of small parts that were part of your shipment.
Attach the ferrite ring to the connector end of your RJ45 network cable as shown.
