017-241-B0 Rev B 20
342
88
198
13.7
[7.8]
[0.5]
[13.5]
[3.5]
3.3.2 Mounting options for the FXM350

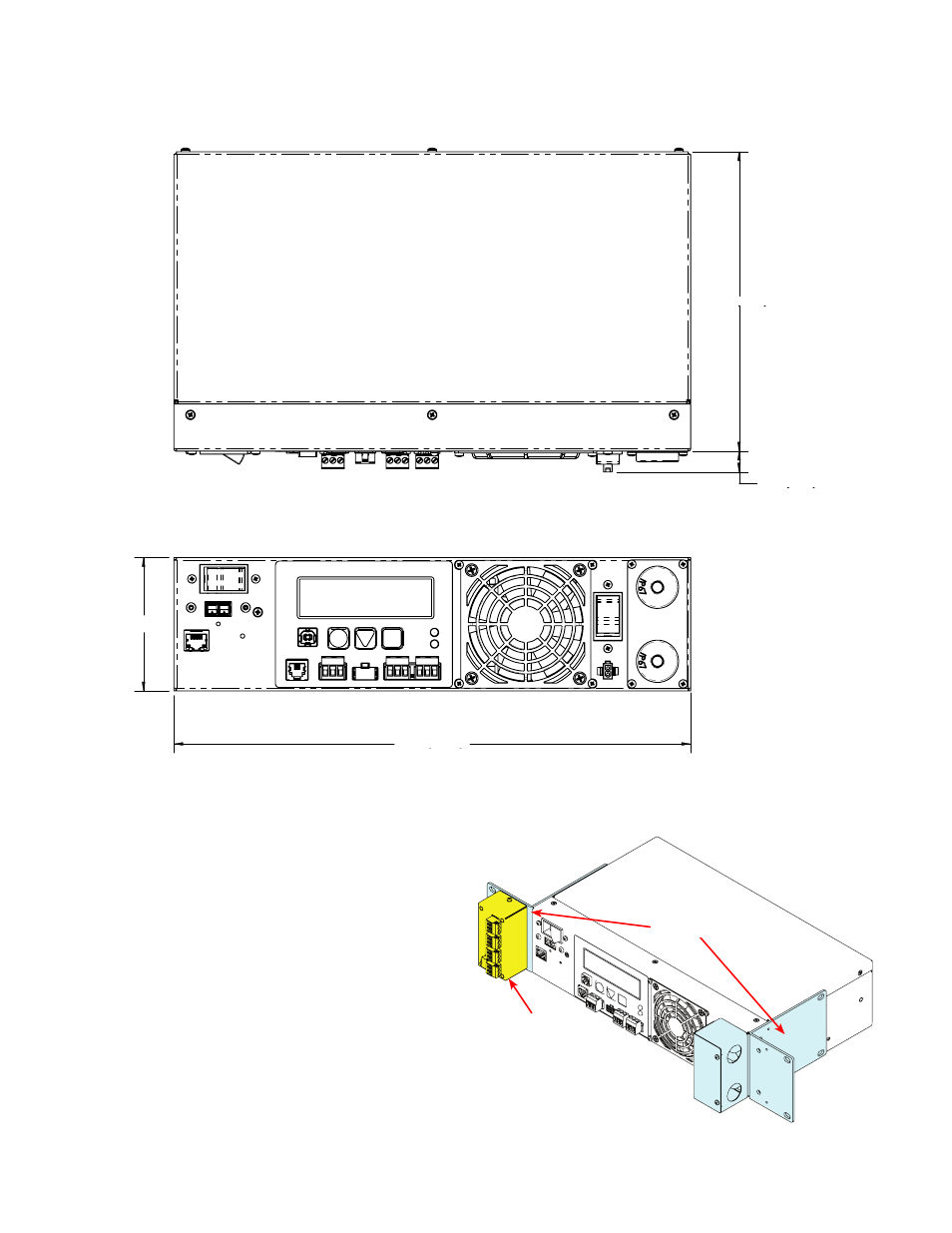

Figure 9 and Figure 11 provide dimensions for mounting the FXM350 UPS as a standalone device.
Figure 9 — FXM350 Mounting Dimensions
3.3.2.1 Standalone Configurations:
• Wall mounted, with front access, onto a 19"
mounting tray that includes a battery cabinet
• Rack mounted in a 19" or 23" rack with add-on
ears and a wiring box (Figure 10). An optional
signals assembly can be ordered, which pro-
vides two user inputs and three dry contacts.
Optional signals
assembly
Standard
ears and
wiring box
Figure 10 — Rack-mount options
