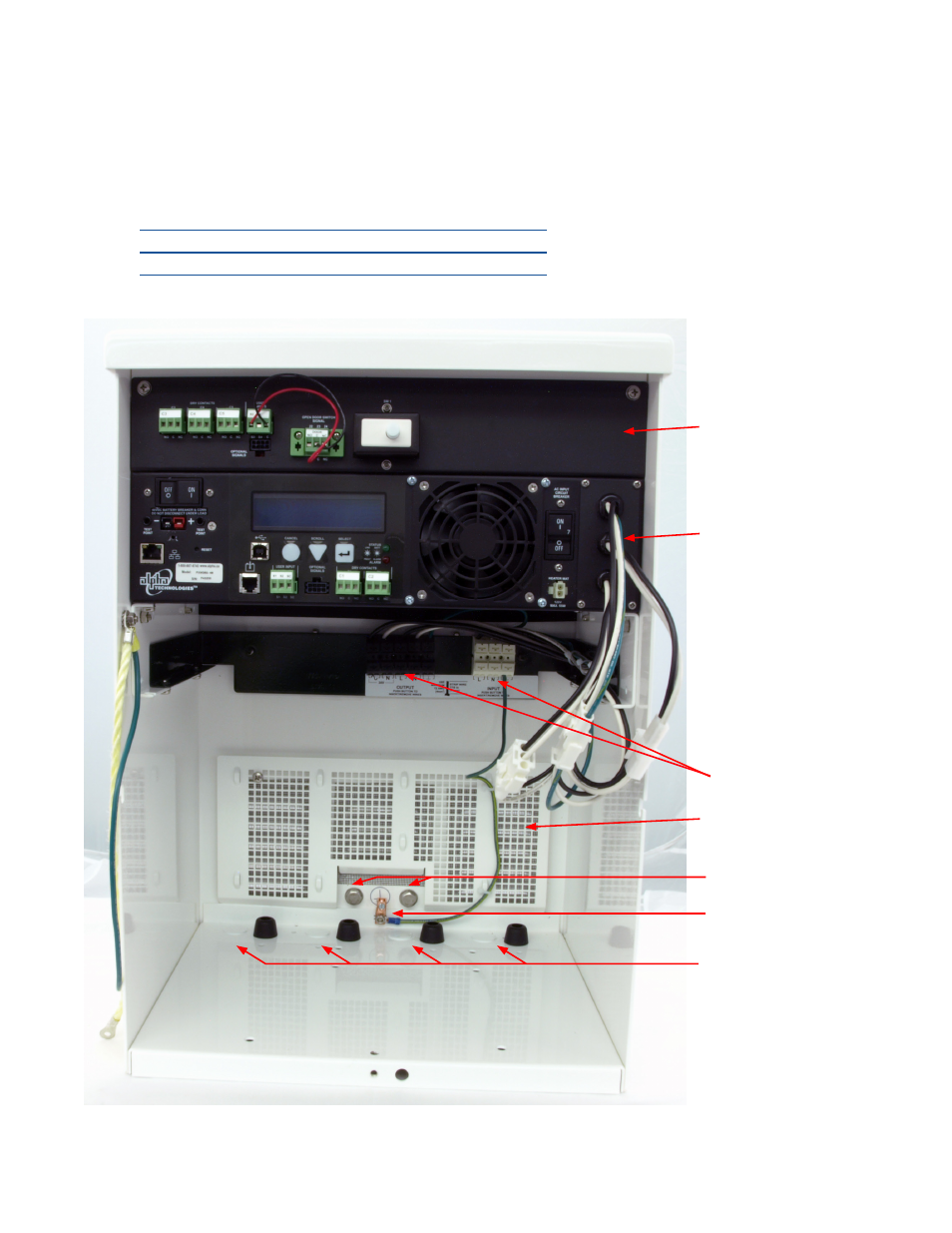

Figure 2 — FXM350 mounted in a standard Micro350 cabinet
Knockouts for wiring
Wire management
panel
FXM350 front panel
AC power distribution
terminal blocks
Micro350 top panel
Attachment holes for
mounting bracket
Ground stud
In addition to the FXM350 standard features, the unit also includes the following:
• Three additional user-configurable dry contacts and two additional user inputs (top panel in Figure 2)
• Door sensor switch for increased security
• AC Input and outputs on an easy to install terminal block
• Flexible dual AC and DC output for multiple loads up to 350W with distribution
AC input
Battery bus voltage
AC output (dual)
120Vac
48V or 24V
120/24Vac
230Vac
24V
230/24Vac
