11 017-241-B0 Rev B
2. General Description
2.1 Alpha FXM350
The Alpha FXM350 is available in 24Vdc and 48Vdc models. It provides up to 350W of regulated AC Power
to the load, when utility power is available, and provides back up power from the batteries in case of a utility
power failure. Noteworthy features include:
• Local or remote monitoring and control via USB and SNMP communication
• Small footprint for wall, rack or enclosure mounting
• Dependable operation in extreme operating environments (-40 to 74°C or -40 to 165°F)
• Powerful firmware with enhanced features such as battery run-time information
2.2 Micro350/ Alpha FXM350
The Micro350 contains a standard FXM350 along with batteries—Figure 1 shows three options for the enclo-
sure. These enclosures are designed with a NEMA 3R rating for outdoor applications.
Figure 2 shows the FXM350 installed in a standard-sized Micro350 cabinet. Power is distributed through
terminal blocks mounted on a DIN rail.

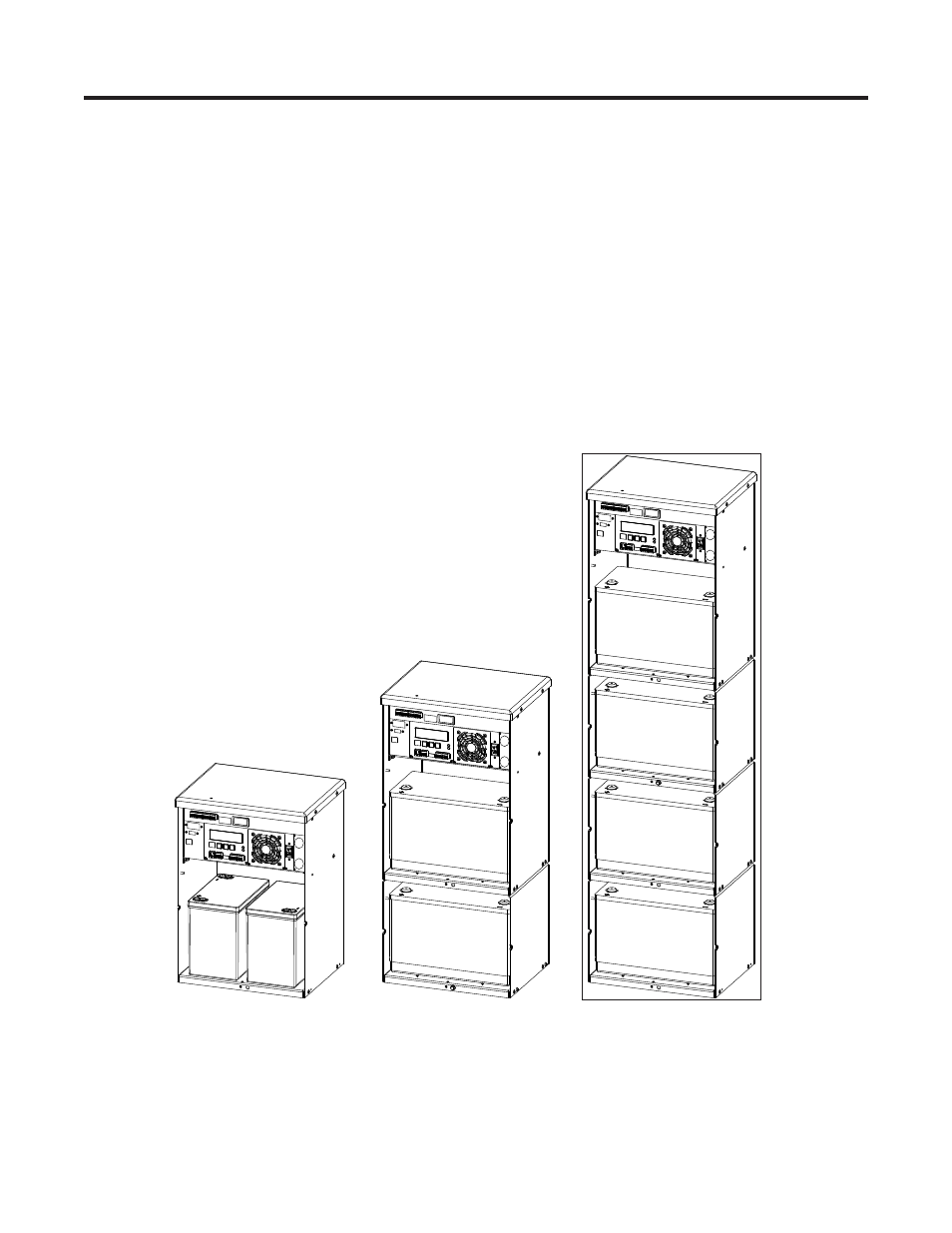

(a)Standard Micro350
(1 battery tray)
(b) Micro350 XL
(2 battery trays)
(c) Micro350 XL3
(4 battery trays)
Figure 1 — Micro350 cabinets
