c. Location of MediaLink® Controller and Wall Plates
•
Forward and side reach (for full details refer to a copy of ADA Standards for Accessible
Design, Sections 307 and 308, for ADA requirements).
• Location of source devices
Desk, table, or rack mounted, and proximity to proposed transmitter location (wall,
podium, or furniture)
• Cabling obstacles
Studs, utility pipes, power supply location (raceway installation needed?)
•
Network drop for MediaLink Controller
Wall or floor cabled
d. Type and Location of the Speakers
•
Speaker type based on room ceiling and wall type
•
Total number and spacing of speakers
Based on ceiling height and room size
•
Audience seating and room acoustics
Desired spread and evenness of sound coverage and ambient noise level compensation
Student Desks
Teacher’s
Desk
TV / VCR / DVD
Inputs
Screen/White board
Location
Windows
MLC controller
Location
PVT A/V Wallplate Location
Projector/Switcher
Location
Speaker
Location
Each speaker covers
one-fourth of
listening area.

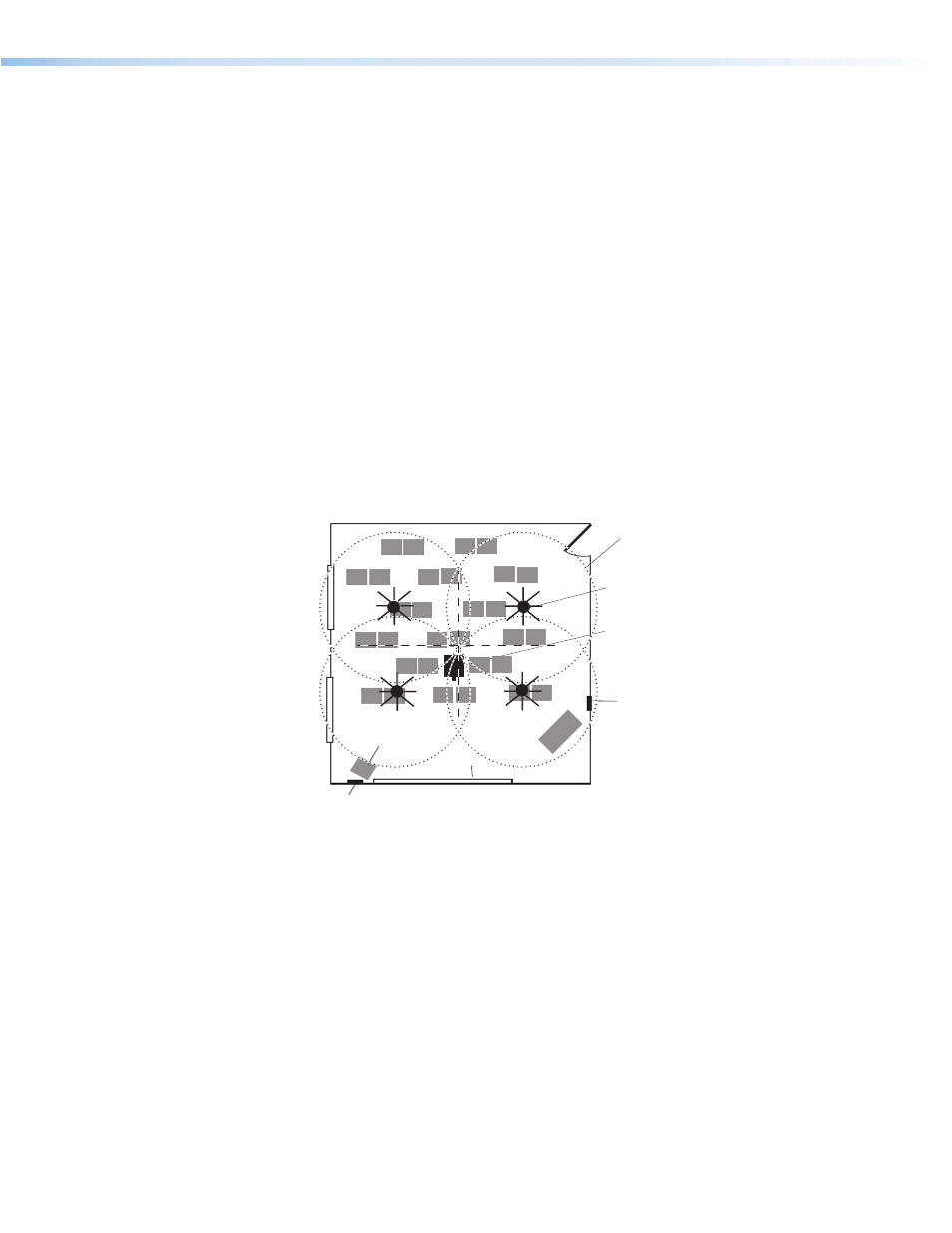

Figure 4. Example Classroom with Four Speaker Installation
