Page 28

2. — Pull the Cables (at the input locations)

The following cables need to be installed:

•

CAT 5 cables for signal transmission from the
AV wall plates to the PVS 305SA IP

NOTES:

•

For PVT RGB D IP Plus four CAT 5
cables (two for video input and two
for LAN) are needed, and for PVT RGB
D wall plates,

two CAT 5 signal cables

for each input are needed.

•

Maximum distance from the
PVS 305SA to the Wallplate is 100 feet.
The optimum distance is between
50 and 75 feet. Minimum distance is
15 feet.

•

CAT 5 cables supplied are terminated
to the TIA 568A standard. Other CAT 5
cables can be used if they are TIA 568A
or 568B standards and terminated to
the same standard at both ends.

•

CAT 5 cables (included) for MLC network
connection.

•

PoleVault switcher communication cable from
the MediaLink controller (MLC PW/RS-232/VC,
50 feet, part number

26-626-50)

•

Projector communication cables from the
MediaLink controller (IR Serial Comm, 50 feet,
part number

26-621-50)

a. Drill cable pathways through any obstructions

(for example, wall caps, fire-breaks, or
horizontal studs).

b. Label the CAT 5 signal cables at both ends with

the supplied labels.

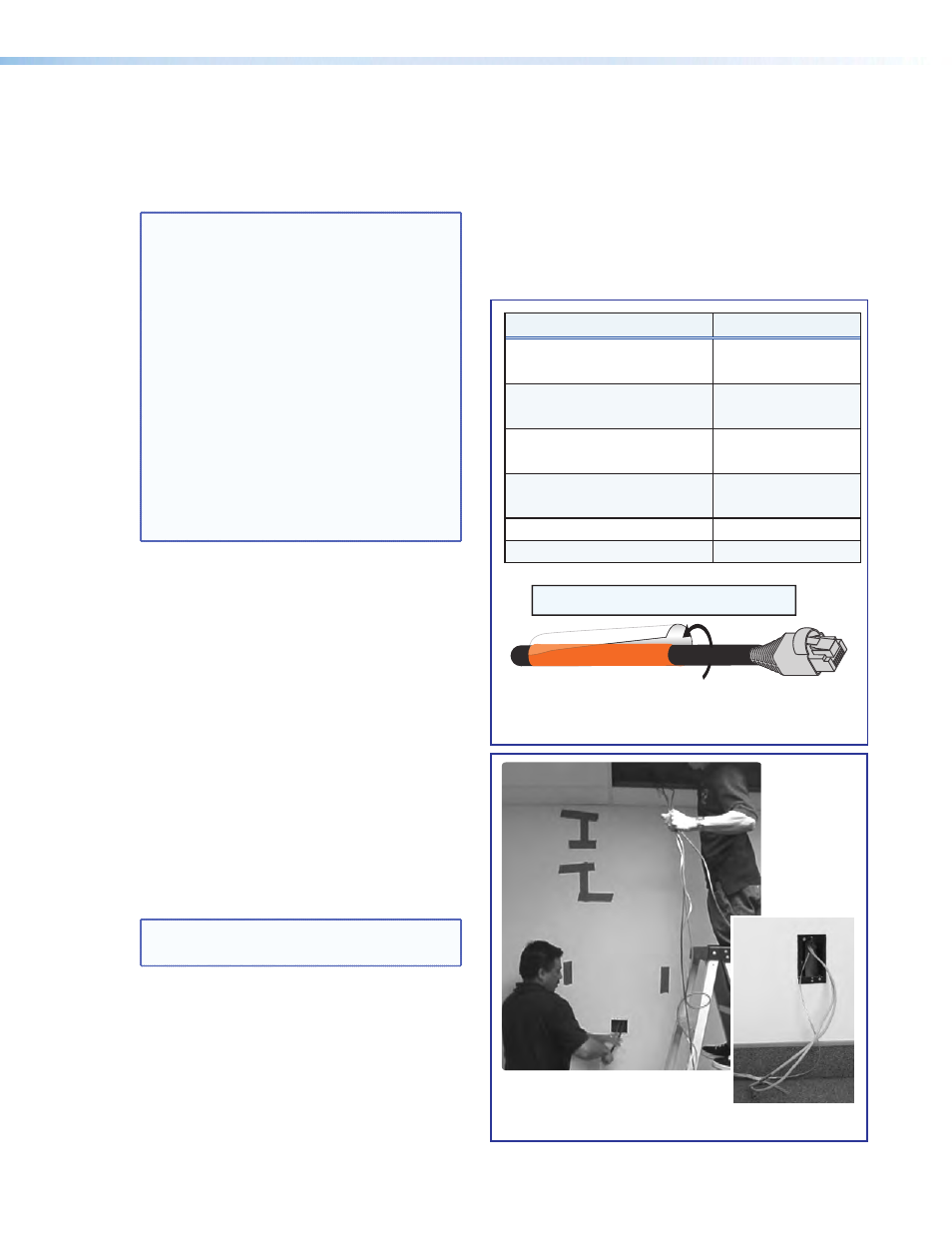

c. Pull the cabling through the wall from the ceiling

space down to the location of the transmitters
and other wall devices, and out through the
openings.

TIP: Secure cables with cable clamps to

provide strain relief.

RGB #1A

NOTE:

Fasten the colored section to the cable

first, then wrap the clear section around it.

Use the supplied labels for clear cable

identification during installation.

Signal Cable

Label color

RGB 1A (Input 1 RGB)

Orange

RGB 1 B (Input 1 RGB)

Orange

RGB 2A (Input 2 RGB)

Yellow

RGB 2B (Input 2 RGB)

Yellow

RGB 3A (Input 3 RGB)

Magenta

RGB 3B (Input 3 RGB)

Magenta

RGB 4A (Input 4 RGB)

Light Green

RGB 4B (Input 4 RGB)

Light Green

Video 3 (Input 3 Composite Vid)

Dark Green

Video 4 (Input 4 Composite Vid)

Red

Pull the cables at each location.

PoleVault IP Systems • Installation — Stage 2 (Wallplates and MLC)
