Inventory

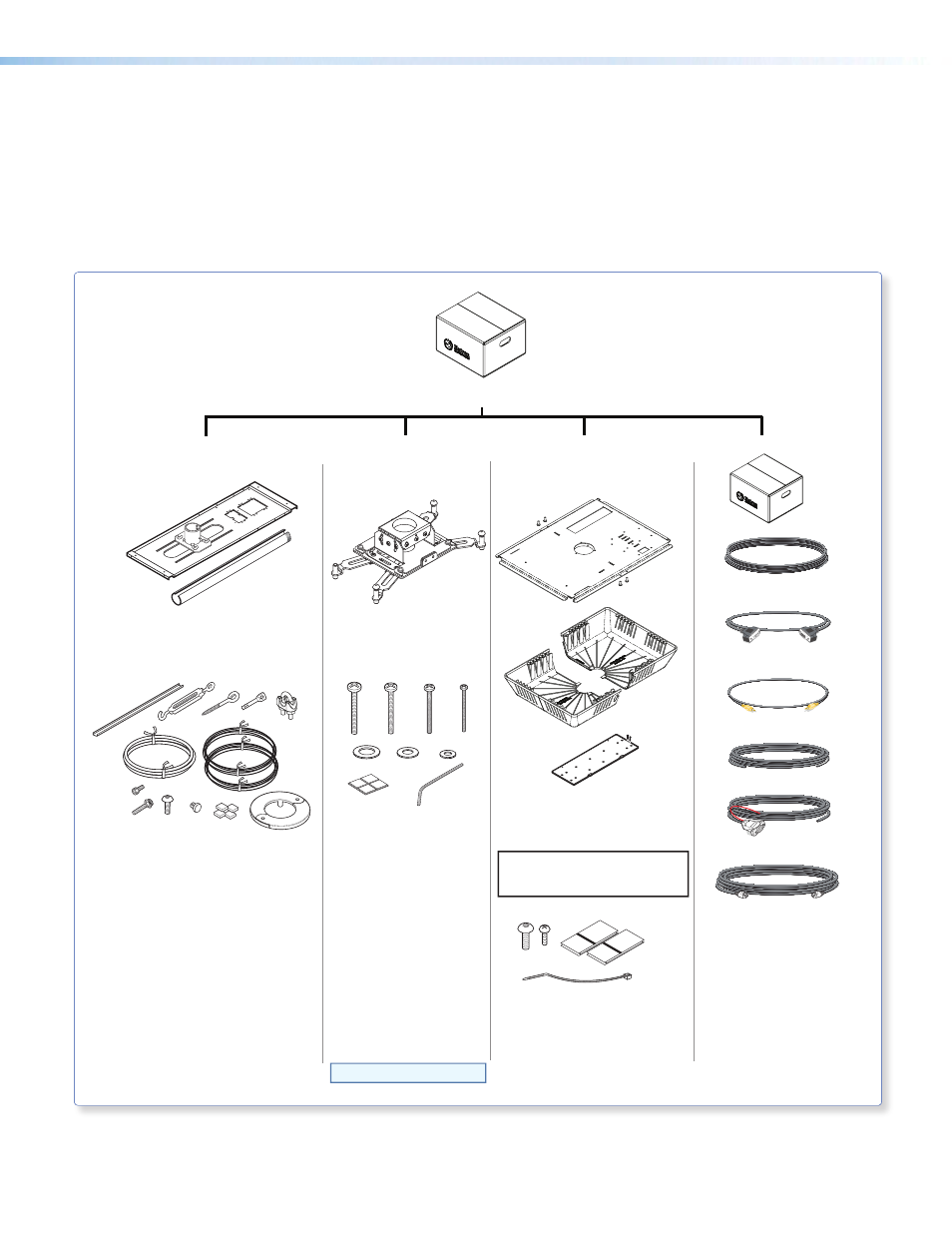

Included Items
The PoleVault IP System (featuring the PVS 305SA IP switcher) ships in one box.
The box (80-xxx-13) contains the devices, hardware, and FF 120 speakers.
Carefully check all the received items against the lists on this and the next page.
PoleVault IP System
80-200-13 (or 80-300-13, or 80-400-13)
PMK 550
Pole Mount Kit
PMK 550 White
70-655-13
(4) 10-32 Cover screws
(3) 4-40 screws
(2) Velcro
™ pads
(1) Tie wrap
PoleVault ® IP System Devices
and Hardware
PCM 340 UPB 25 PMK 550 CABLES
(1) SPK 18, 35 ft
(1) MLC, PW/RS232/VC, 50 ft
(1) IR SERIAL COMM, 50 ft
(1) MVGA M-M, 3 ft
(1) V RCA, 3 ft
CAT5 T568A Patch, 50 ft
Quantity varies depending
on PVS system ordered.
These may be boxed separately
or loose inside larger box.
The PVS 305SA IP may come
pre-installed on the PMK 550
(1) Snap-in trim piece
(4)Turnbuckles
(5) Lag eye bolts
(5) Concrete anchors
(2) Cable clamps, Gal Steel
(1) Safety wire (15 ft. 1/8 in. dia)
(2) Tie wire (30 ft., 14 AWG)
(4) T-frame screws
(2) Set screws
(1) Location screw
(11) Hole plugs
(4) Adhesive pads
(1) 25 in. Slotted pipe
(1) Escutcheon ring
PCM 340
Projector Drop Ceiling Mount
PCM 340 White
70-656-23
Accesories
UPB 25 White
60-773-03
UPB 25
Universal Projector Bracket
(4) M6 x 40 mm screws
(4) M5 x 40 mm screws
(4) M4 x 40 mm screws
(4) M3 x 40 mm screws
(4) 0.328 ID washers
(4) #10 washers
(4) #6 washers
(4) Adhesive pads
(1) Hex key
Accesories
Accesories
NOTE�Items not drawn to scale
•
PVS 200IP (part number 80-200-13) includes one PVT RGB D IP Plus and one PVT CV D
•
PVS 300IP (part number 80-300-13) includes one PVT RGB D IP Plus, one PVT RGB D, and one PVT CV D
• PVS 400IP (part number 80-400-13) includes one PVT RGB D IP Plus, one PVT RGB D, and two PVT CV D
PoleVault IP Systems • Introduction 6
