4. — Install MediaLink Controller
TIP: Before cabling and installing the
MLC 104 IP Plus, locate and write down the
MAC address of the device for configuring the
IP address. The 12 character alphanumeric
address (for example, 00-05-A6-03-9G-H4)
can be found on a label on the side of the
controller. The length of exposed wire is critical
to avoid transmission problems. Ensure the
lengths given here are adhered to when strip-
ping the cables for connection.
NOTE: If a drain wire is used, both ends of the
wire must be covered by heat shrink to avoid
accidental grounding.

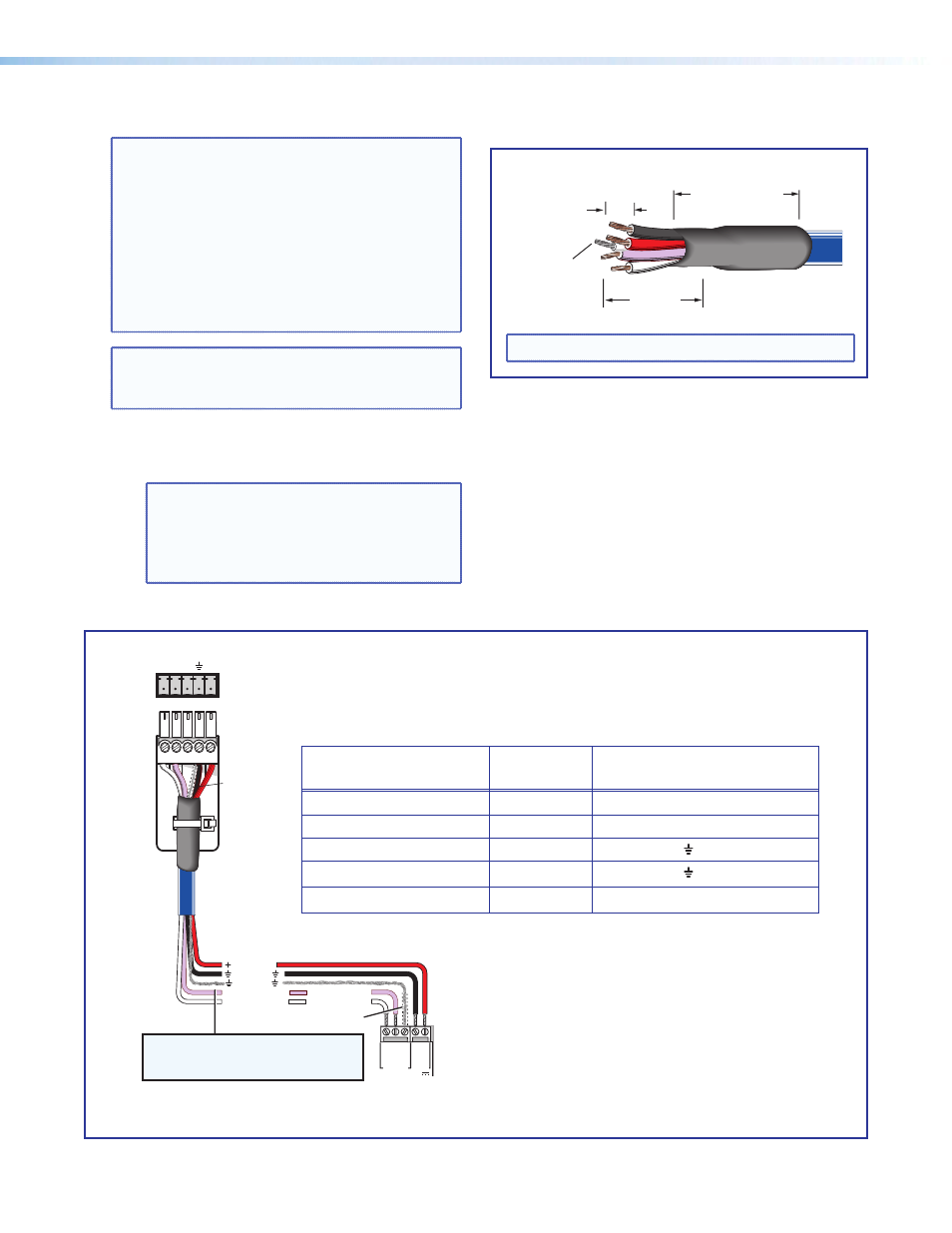

a. Connect the MLC power and RS-232 control
cable (part number 26-626-50) as shown.
NOTE: The MLC 104 IP Plus is powered
from the PVS 305SA IP. DO NOT
connect an external power supply to
the MLC 104 IP Plus unless installing an
optional secondary control panel.
MLC's MLS and
Power ports
PWR
12V
MLS
RS-232
GROUND GROUND
A B
Tx Rx
+12V IN
Ground ( )
+12 VDC
Transmit (Tx)
B Receive (Rx)
A
Transmit (Tx)
Heat Shrink
over Drain Wire
Receive (Rx)
B
A
RS-232/MLC/IR
PVS 305SA IP
Switcher's rear panel
RS-232/MLC/IR port
A B C D E
Tx Rx IR +12V
Ground ( )
Heat Shrink
over Drain Wire
NOTE: If you use cable that has a drain wire, tie
the drain wire to ground at both ends.
Apply heat shrink cover to both ends of the
wire to avoid accidental grounding.
Ü
Connect the MLC 104 IP Plus to the switcher.
From MLC 104 IP Plus
terminal
Wire color To PVS 305SA IP terminal
A - (Rx on the MLS port) White A - (Tx on the RS-232 port)
B - (Tx on the MLS port) Violet B - (Rx on the RS-232 port)
MLS RS-232 Ground Drain wire D - Ground
Power Ground Black D - Ground
12 V In Red E - +12 V
Wire Bared
3/16"
(5 mm)
Max.
7/8 "
(22 mm)
Heat Shrink on
Outer Jacket to
Inner Conductor
Transition
Heat Shrink on
Drain Wire
TIP: Observe wire stripping lengths.
PoleVault IP Systems • Installation — Stage 2 (Wallplates and MLC) 26
