NOTE: The installation must conform to national

and local electrical codes, and UL requirements.
See the device guide for details.

1.— Cut Ceiling Tile

a. Remove the ceiling tiles where the speakers are

to be installed.

TIP: For ease of working on the speaker

when it is replaced on the T-frame, remove
adjacent tiles.

b. Mark a line 12 inches from one of the short

sides of the tile and cut along the line. Discard
the short portion.

TIP: Use a fine hacksaw blade to cut the

tile without damaging the face. Place an
empty box under the tile for support and
to collect the waste.

2. — Install the Speaker on the Drop Ceiling

a. At the speaker location, lay one of the supplied

T-rails 12 inches from one end of the T-frame.
The speaker is placed into the small section.

b. Remove the terminal cover from the rear of a

speaker and attach the anchor ring and cable
clamp to the cover.

c. Place the speaker onto the T-frame and,

passing the speaker cable through the cable
clamp, connect the speaker wires to the
speaker terminals:
• Red wire - positive (+)
• Black wire - negative (-)

ATTENTION: DO NOT short the

speaker wires together as it may
damage the speakers.

d. Reattach the terminal cover.
e. Bend the seismic tabs over the T-rails.

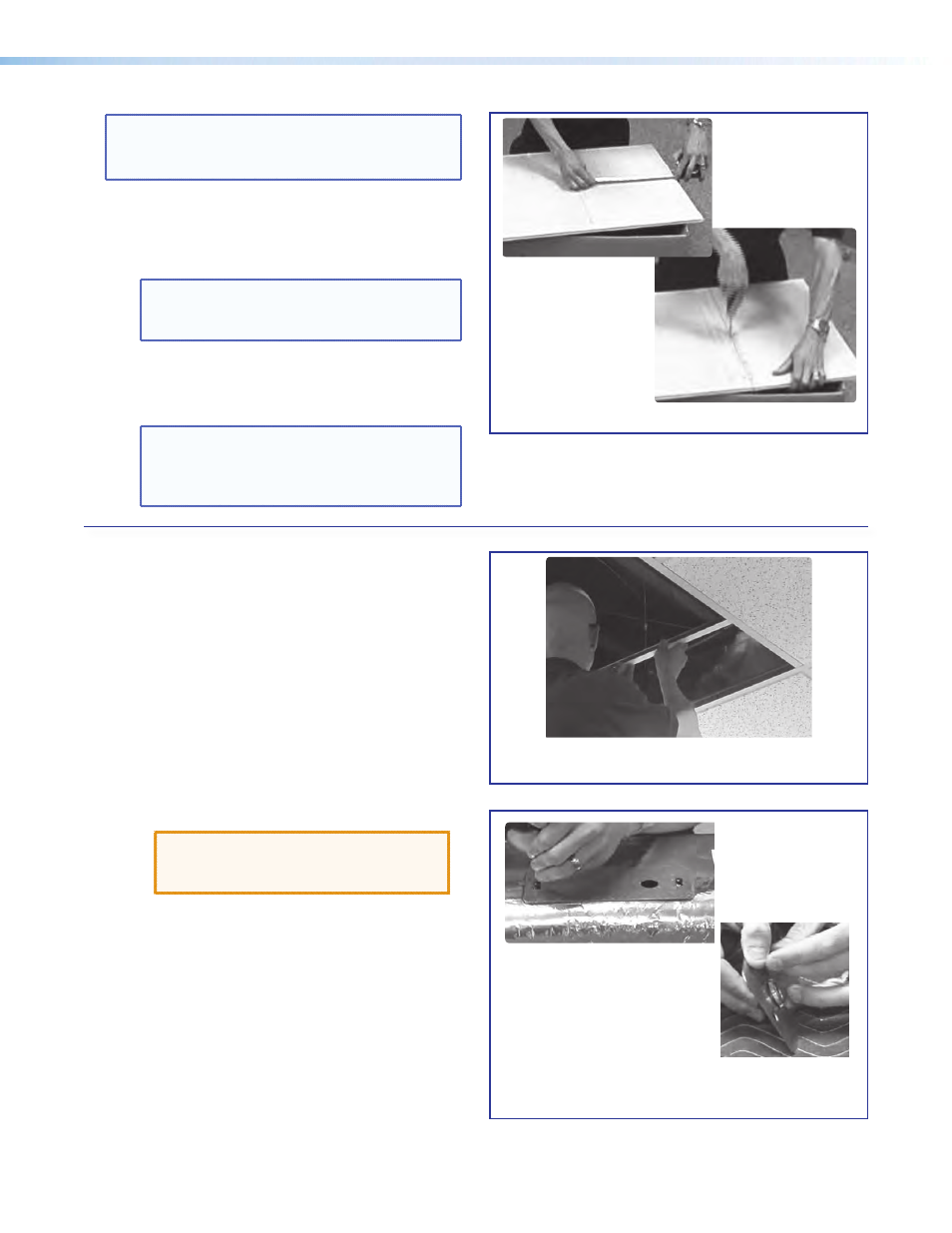

Mark and cut the tile

Place the T-rails on the T-frame

Remove terminal cover and attach clamp

and ring.
