The MLS Configuration Utility software
û
Launch the MLS Configuration program
ü
Select “Help, Contents” and follow instructions
Stage 5:
Configuring the
PVS 305SA IP Switcher
Stage 5 Involves Installing the Programs Shown Below.
Items needed to help complete this stage:
• Laptop (or PC) with a network connection
•
MLS Configuration program (on supplied DVD or by download from www.extron.com )
•
Global configurator software
• MLC 104 IP Plus User Guide
•
Projector manufacturer guide
•
Device driver and driver package
(download from
www.extron.com )
1. — Configure the Switcher — MLS Switcher
Configuration Program
a. Run the DVD (or download) and install on a
PC or laptop the Extron MediaLink Switcher
Configuration program.
b. Ensure the PC and the MLC 104 IP Plus are
connected to the LAN.
NOTE: If this is not possible, connect a
2.5 mm TRS configuration cable (part
number
70-335-01) to the PC and to the
front panel configuration port of the MLC
104 IP Plus.

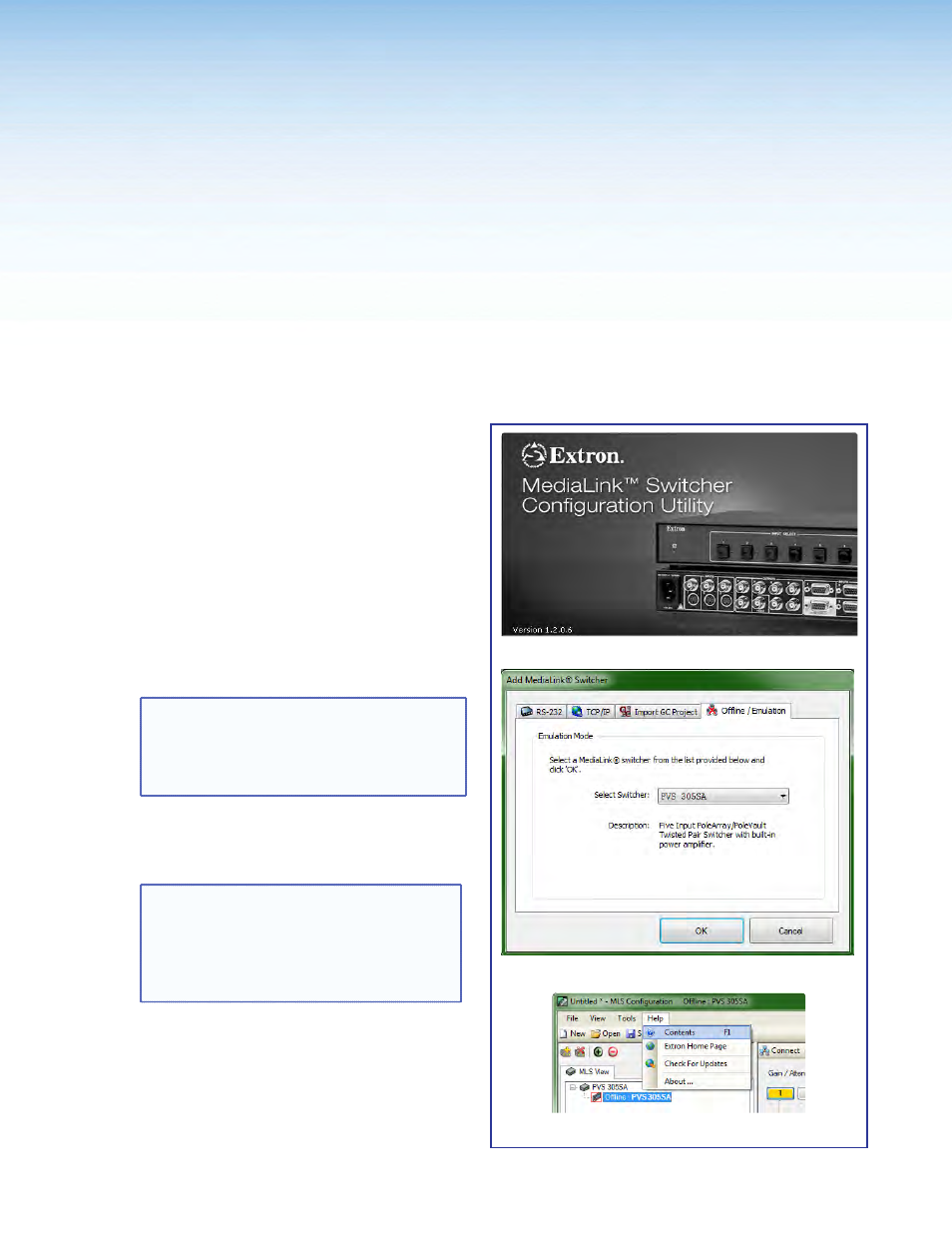

c. Launch the MLS Configuration utility. Select the
connection format (RS-232 or TCP/IP), or select
the emulation mode (see figure
û
).
NOTE: An offline emulation of the
PVS 305SA IP can aid in becoming familiar
with the PVS 305SA IP before configuring
an active unit. For PVS 305SA IP devices,
select the PVS 305SA device in the drop-
down box.
d. Once the program is running click Help,
Contents, or press , and follow the
instructions.
37 PoleVault IP Systems • Installation — Stage 5 (Configuration)
