Extron Electronics PoleVault IP Systems PVS 305SA IP User Manual
Page 47
Using Learn Mode (Available on PVT RGB D Plus only)
1. Disconnect any sources from the front panel and remove the wallplate
from the wall.
2. On the rear panel, set all the DIP switches to off (down).
3. Temporarily connect the main display device (the projector) to
the Monitor Out port.
4. On the front panel, the learn LED is lit solid green. Press and
release the Learn button.
5. The LED flashes red when in “learning” mode, then returns to
solid green when complete.
6. Re-install the wallplate and reconnect the source device.
Connect a local display device to the Monitor Out port as needed.
7. Reconnect the projector to the PoleVault switcher. Restart the source and display devices

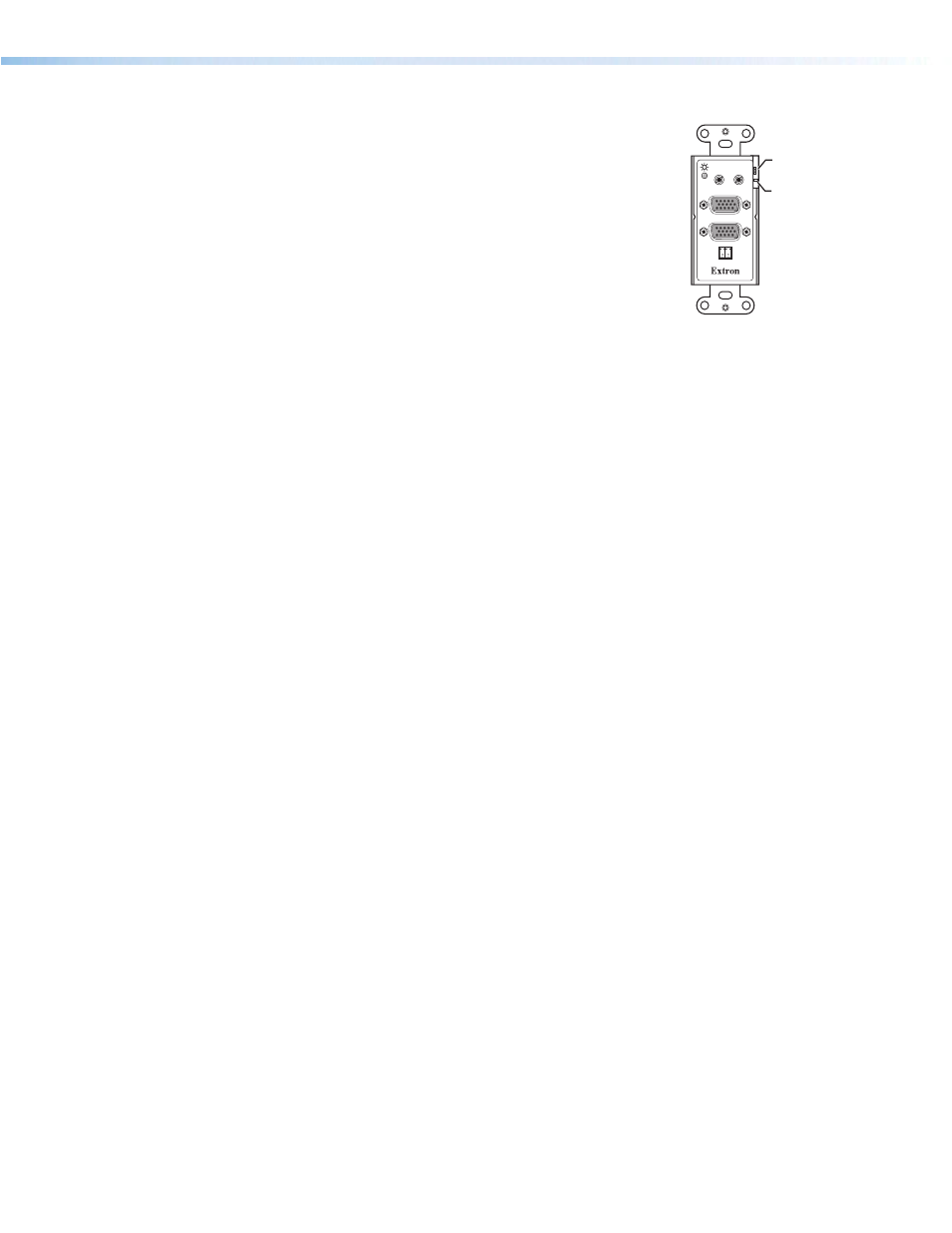

COMPUTER IN
AUDIO
IN
OUT
MONITOR OUT
IR OUT
S G
EDID Learn
Status LED
EDID Learn
Button
PoleVault IP Systems• Installation — Stage 5 (Configuration)
43
