— configure the system — global configurator – Extron Electronics PoleVault IP Systems PVS 305SA IP User Manual
Page 42

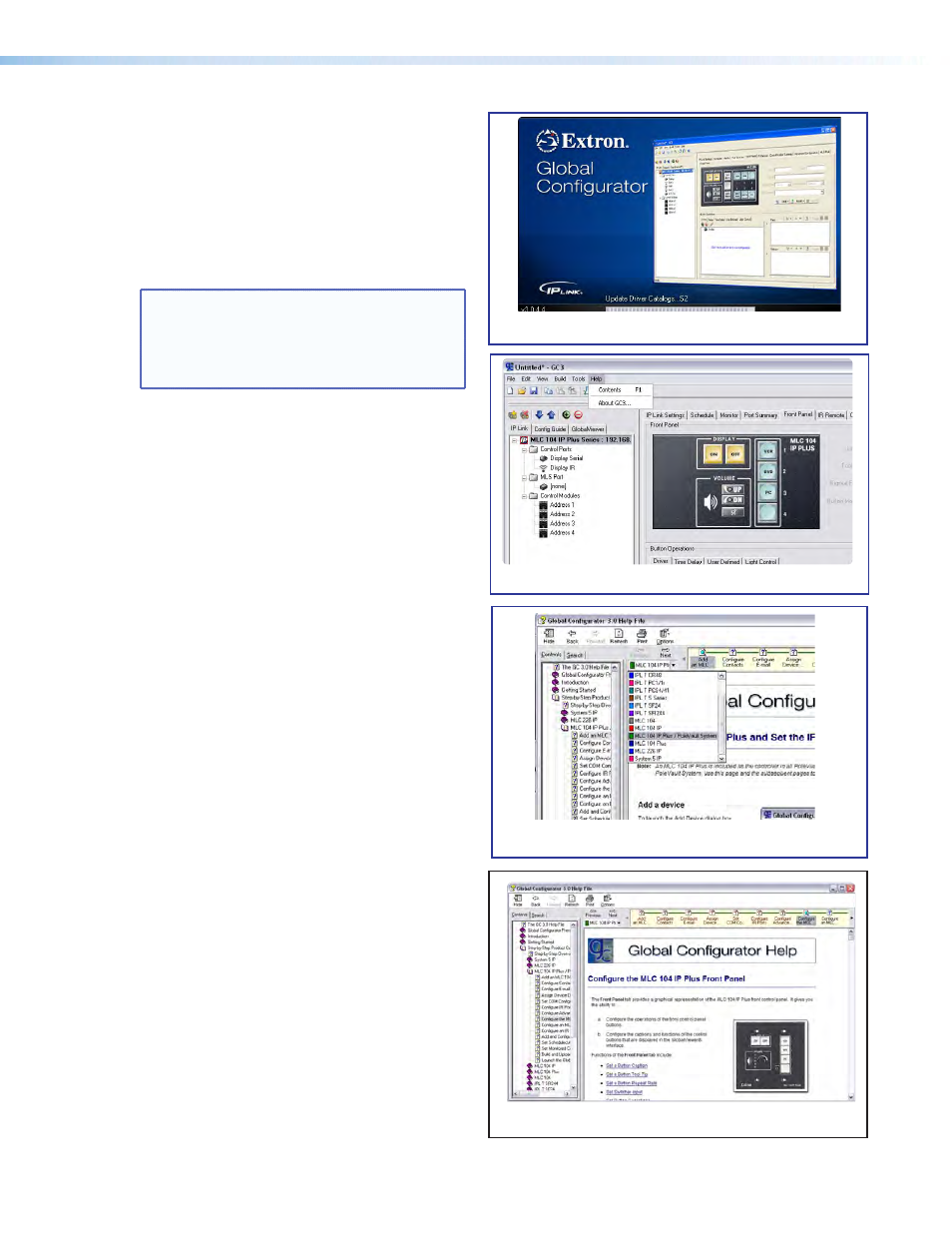

2. — Configure the System — Global
Configurator
a. Download and install Extron’s Global
Configurator (GC) configuration program
(available at
or PC.
b. Ensure the PC and the MLC 104 IP Plus are
connected to the LAN.
NOTE: Alternatively, connect a 2.5 mm TRS
configuration cable (part number
70-335-01) to the PC and to the
front panel configuration port of the MLC
104 IP Plus.
c. Launch the Global Configurator program. Click
on Help, Contents, or press
d. Select the
MLC 104 IP Plus/PoleVault
system from the drop-down box. Follow the
instructions on the Help page.
e. To move to the next page (as shown in the
yellow box, figure 2e), click the
NEXT
button
above the drop-down box. Repeat as needed,
following the instructions on the pages to
configure the MLC 104 IP Plus.
Ç
Load Global Configurator software
î
Launch Global Configurator
ï
Select MLC 104 IP Plus/PoleVault IP System
Ú
¶
Configure the MLC 104 IP Plus
PoleVault IP Systems • Installation — Stage 5 (Configuration)
38
