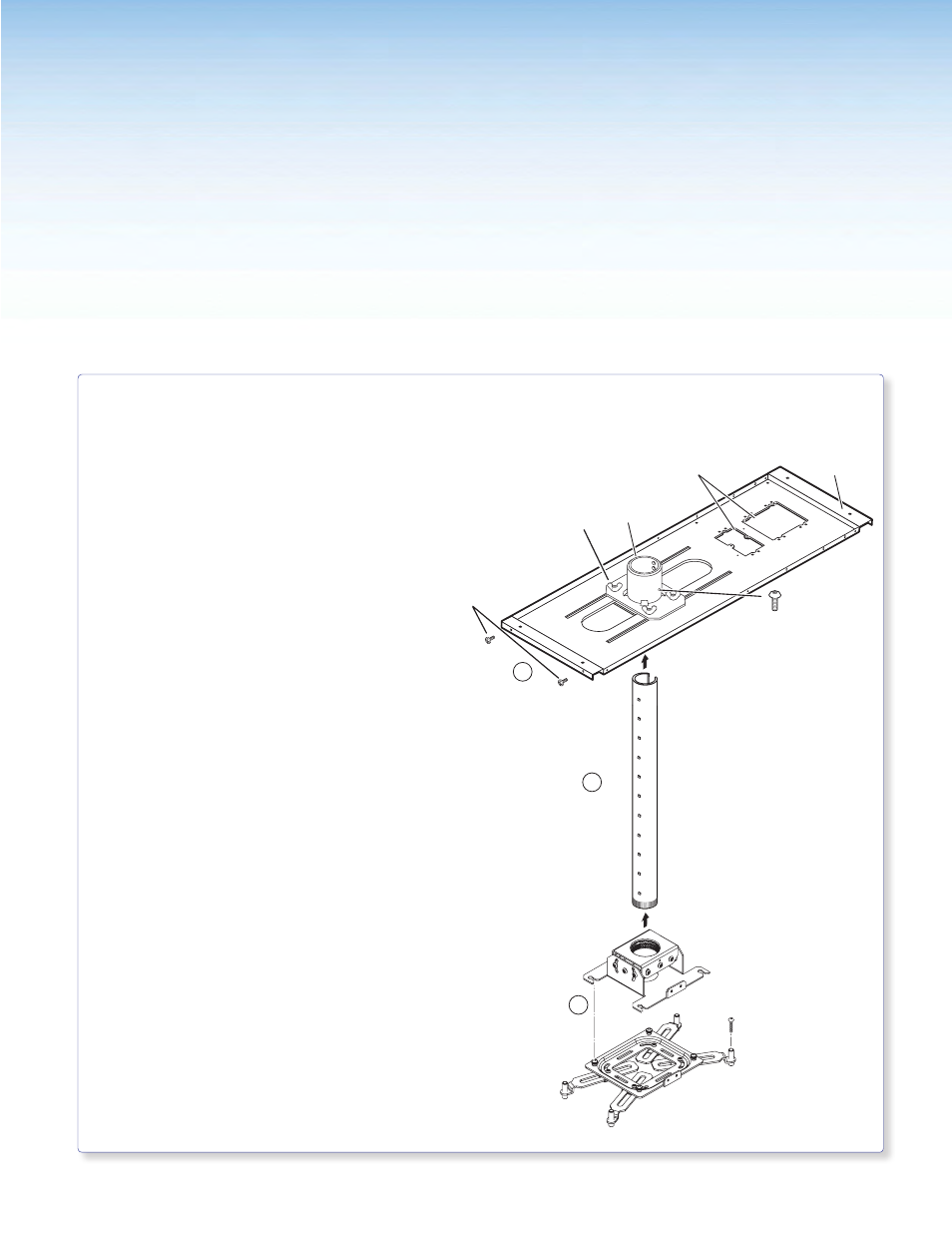

PCM 340 Projector Drop Ceiling Mount a
•
Where it goes: Attaches to a structural ceiling,
rests on the suspended ceiling.
•
What it does: Holds the slotted pipe, PoleVault pole
mount kit (PMK 550), and projector.
Slotted Pipe b
•
Where it goes: Locks into place in the PCM 340 pipe
adapter.
•
What it does: Holds the PMK 550 pole mount kit,
UPB 25 Projector Bracket and projector.
UPB 25 Universal Projector Bracket
(separated into two sections)
c
•
Where it goes: Adjuster Plate screws onto the base of
the slotted pipe, and the Projector Bracket attaches to
the projector.
• What it does: Attaches the projector to the PCM 340.
Allows proper projector positioning and orientation.
T-bar
Securing
Screws (4)
Slotted
Pipe
Adjuster Plate
(Top Section)
Pipe Adapter Plate
Wing Nuts (4)
3
2
1
1-gang and 2-gang Accessory Mounting
Points (e.g., Power Sockets)
Pipe
Adapter
Base
Plate
Pipe Adapter
Set Screws (2)
Stage 1:
Installing the Screen
and Projector
Stage 1 Involves Installing Three Pieces of Hardware Shown Below.
PoleVault IP Systems • Installation — Stage 1 (Screen and Projector) 11
