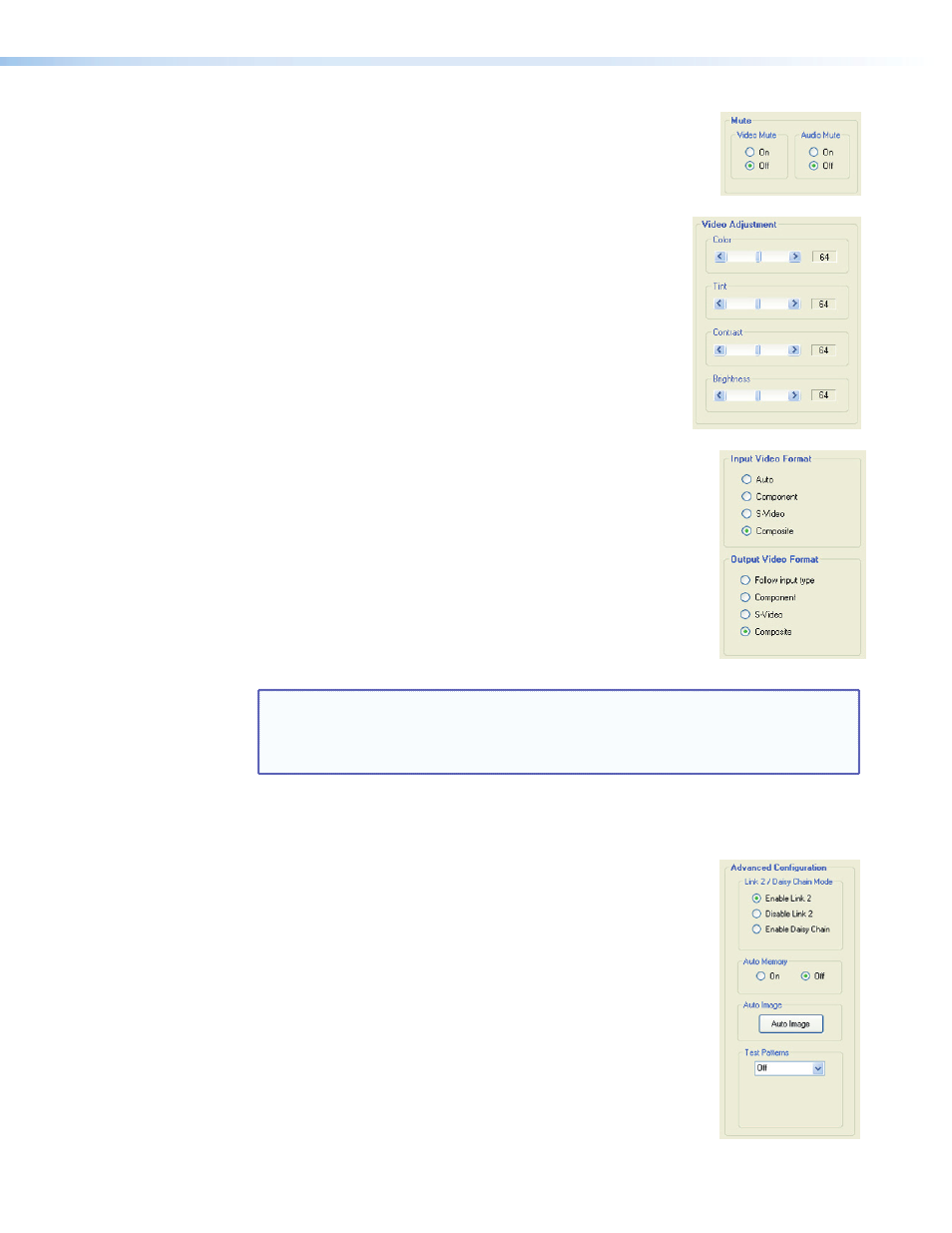

Mute area
Select a radio button in the Mute area to mute or unmute the video
or audio signal.
Video Adjustment area
Use the sliders to adjust the Color, Tint, Contrast, and
Brightness of the picture that is displayed. All four of these
variables can be adjusted to between 0 and 127, with the
current value displayed in the text box to the right of the
corresponding slider.
Video Format area
Select the radio buttons in the Video Format area to specify the
input video format (
Auto , Component , S-video , or Composite )
and the output video format ( Follow input type , Component ,
S-video , or Composite ).
When there are two video sources, S-video through the 4-pin
mini DIN connector and another format through the BNC
connectors, the choice of radio button determines which input
format is transmitted. When
Auto is selected, the transmitter
detects and sends the signal with the highest level format detected:
component video first, S-video second, and composite video third.
When
Follow input type is selected for the output format, the
output signal is in the same format as the input signal.
NOTE: The transmitter converts the input signal into a proprietary signal type, which
passes through Link 1 to the receiver. The receiver converts the signal back to
the required type. This enables the input signal to be transcoded to meet the
output device requirements.
Advanced Configuration area
Select the radio buttons in the following fields to perform additional configuration:
z
Link 2/Daisy Chain Mode — Select Enable Link 2 or
Disable Link 2 to enable or disable the return link from the
receiver to the transmitter. Alternatively, you can select Enable
Daisy Chain and connect the receiver to another receiver.
z
Auto Memory — When Auto Memory is on, previously saved
values such as color, tint, contrast, and brightness are applied
whenever the vertical field rate of the input changes. Auto
Memory can be switched on or off using the radio buttons.
z
Auto Image — Returns the video adjustment settings of color,
tint, contrast, and brightness back to their default values (64).
z Test Patterns — If desired, select one of the built-in test
patterns (color bars, grayscale, or alternating pixels) from the
drop-down menu, for help calibrating the display device. When
Off is selected, the receiver outputs the video signal from the
source device.
PowerCage FOX Tx/Rx AV • Remote Communication and Control 29
